QSC Attero Tech Zip4-3G – Dante Network Audio Intercom Station (3rd Generation)

Product Overview

The QSC Attero Tech Zip4-3G is a 4-button Dante/AES67 IP paging interface for the communication needs of large venues. It routes paging audio and bi-directional status data over a Dante or AES67 network to the Q-SYS Ecosystem, a third-party AV system, or a Paging Management System to distribute paging to up to four zones.

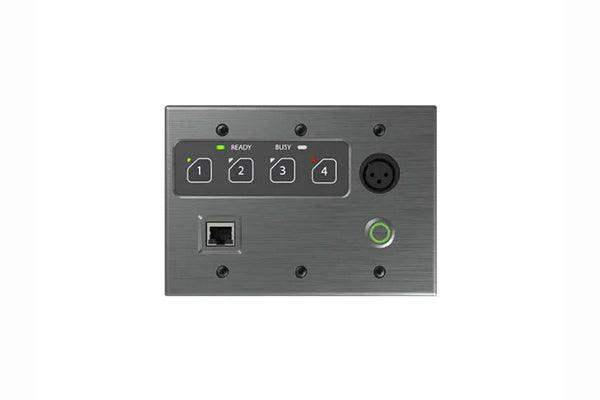

Built on a solid brushed-aluminum faceplate with a backlit keypad, the 3-gang Zip4-3G installs at desktops or in walls and integrates directly with the Q-SYS PA Router.

Product Description

The Zip4-3G sends IP audio over Dante or AES67 from the station to a DSP or Paging Management System for distribution to up to four zones, with bi-directional status data for zone confirmation. A front-panel RJ-45 jack serves as the push-to-talk microphone input, with a P-type clamp below the connector for strain relief and a latching metal clamp to hold the PTT microphone (sold separately) when not in use.

Zone or group selection and zone-status identification are handled on a backlit keypad. The interface installs into a standard 3-gang US wall box or rework bracket, and also supports desktop mounting with Attero Tech's 3-Gang Desktop Enclosure plus a gooseneck microphone (enclosures and mic sold separately).

It integrates directly with the Q-SYS PA Router running on a QSC Core Series DSP via a dedicated Zip4-3G control plugin for Q-SYS Designer. A product accessory kit and a magnetic microphone holder are available separately. For a 2-gang version, see the QSC Attero Tech Zip4.

Key Features

• Dante/AES67 paging interface — Routes paging audio and bi-directional status over the network to Q-SYS or a Paging Management System for up to four zones.
• Front-panel PTT mic input — An RJ-45 jack with panel-mounted strain relief for a reliable, easily replaced microphone connection.
• Rugged brushed-aluminum faceplate — Durable construction with a latching metal clamp to hold the PTT microphone when idle.
• Backlit keypad control — Simple zone or group selection and zone-status identification.
• Flexible 3-gang mounting — In-wall (3-gang US box or rework bracket) or desktop via the 3-Gang Desktop Enclosure (sold separately).
• Q-SYS integration — Works with the Q-SYS PA Router on a QSC Core DSP via a dedicated Zip4-3G control plugin.

Typical Applications

• Commercial meeting space
• Government space
• Multi-purpose room
• All-hands room
• Auditorium

Technical Specifications

Frequently Asked Questions

How many zones can the Zip4-3G page?
It distributes paging audio to up to four zones over a Dante or AES67 network via Q-SYS or a Paging Management System.

Is a microphone included?
No. The PTT microphone connects via the front-panel RJ-45 jack and is sold separately, as are mounting enclosures and the magnetic mic holder.

How does it integrate with Q-SYS?
It works directly with the Q-SYS PA Router on a QSC Core Series DSP using a dedicated Zip4-3G control plugin for Q-SYS Designer.

What warranty and support come with this product?
QSC and Attero Tech products are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period. Creation Networks provides pre- and post-sale support for system design and integration questions.
