QSC AD-S12 – AcousticDesign 12-Inch 2-Way 300W Surface-Mount Loudspeaker (Single, White)

Product Overview

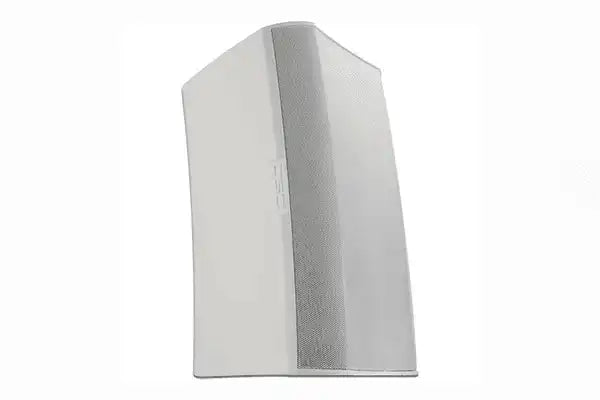

The QSC AD-S12 (white) is a 12-inch two-way surface-mount loudspeaker built for foreground and background sound reinforcement in commercial spaces. Part of the AcousticDesign Series, this low-impedance 8-ohm commercial loudspeaker delivers full-range output with uniform 75-degree coverage, making it well suited to houses of worship, multi-purpose rooms, and auditoriums. An IP-54 rating and the included X-Mount system make it a versatile indoor/outdoor surface speaker for fast, secure installation.

Product Description

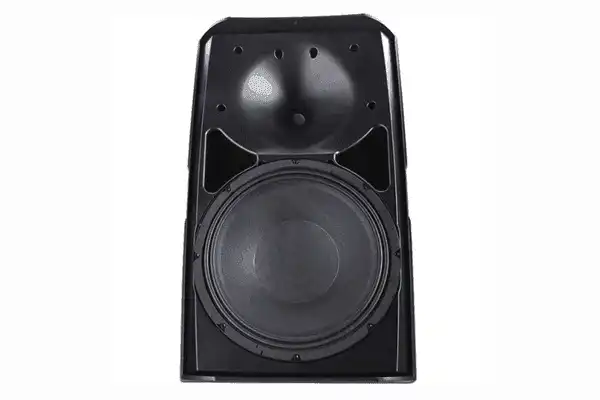

The AD-S12 pairs a 12-inch weather-treated paper-cone woofer on a 2.5-inch voice coil with a 1-inch-exit, 1.4-inch compression driver matched for full-range reproduction. QSC Directivity Matched Transition (DMT) aligns the woofer and high-frequency waveguide patterns at the crossover for a coherent 75-degree axisymmetric coverage pattern and improved off-axis response. The rugged painted-ABS enclosure, sealed input-panel cover, and powder-coated aluminum grille exceed IEC60529 IP-54 dust and splash resistance, and the speaker is qualified for outdoor use through salt-fog, humidity, and temperature testing. The award-winning X-Mount system is included for horizontal, vertical, wall, or ceiling deployment without slippage, and M10 fittings accept the optional YMS12 yoke mount or shoulder eyebolt kit. Advanced Intrinsic Correction voicing filter sets are available through Q-SYS processing or CXD amplifier platforms for QSC-approved tuning. Finished in white (RAL 9010) and paintable to match decor.

Key Features

• 12-Inch Two-Way Design — A 12-inch paper-cone woofer and 1.4-inch compression driver provide full-range output for foreground and background reinforcement.
• DMT Coverage — Directivity Matched Transition delivers uniform 75-degree axisymmetric coverage with smooth off-axis response.
• IP-54 Weather Resistance — Rugged ABS enclosure, sealed input panel, and powder-coated aluminum grille exceed IP-54 and are qualified for outdoor use.
• Included X-Mount System — The award-winning X-Mount installs the speaker quickly at varied angles with knurled pivots that prevent drift over time.
• High Output — Rated 300 watts with 120 dB continuous and 126 dB peak SPL for demanding commercial spaces.
• Intrinsic Correction Voicing — QSC-approved voicing filter sets via Q-SYS or CXD amplifiers speed setup and protect the loudspeaker.
• M10 Suspension Points — Integrated M10 fittings accept the optional YMS12 yoke mount or shoulder eyebolt for flexible installation.

Typical Applications

• House of worship sound reinforcement
• Multi-purpose rooms and commercial meeting spaces
• Auditoriums and performance spaces
• Retail, restaurant, and concourse audio

Technical Specifications

Frequently Asked Questions

Is the AD-S12 a low-impedance or 70V speaker? The AD-S12 is a low-impedance 8-ohm model. For 70/100V distributed systems, use a transformer-equipped AcousticDesign model such as the AD-S10T.

Can it be installed outdoors? Yes. It carries an IP-54 rating and is qualified for outdoor use through salt-fog, humidity, and temperature testing, with an operating range of -20 to 50° C.

What mounting hardware is included? The award-winning X-Mount system is included for wall or ceiling installation; M10 fittings accept the optional YMS12 yoke mount or shoulder eyebolt kit.

How does it integrate with a QSC system? Intrinsic Correction voicing filter sets are available through Q-SYS processing and CXD amplifiers for an optimized, QSC-approved system.

What about warranty and support? The AD-S12 is covered under QSC warranty terms; contact Creation Networks support for system design and AV integration assistance.
