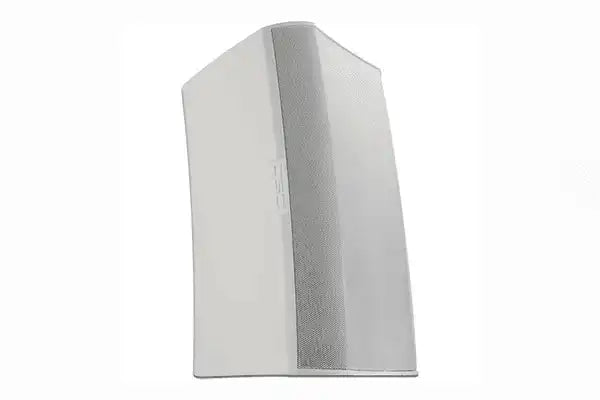

QSC AD-S10T – AcousticDesign 10-Inch 2-Way 250W Surface-Mount Loudspeaker (Single, White)

Product Overview

The QSC AD-S10T (white) is a 10-inch two-way surface-mount loudspeaker with a built-in 70/100V transformer for distributed commercial audio. Part of the AcousticDesign Series, this commercial loudspeaker can run on a 70/100V line or in low-impedance mode, delivering uniform 90-degree coverage for houses of worship, multi-purpose rooms, and auditoriums. An IP-54 rating and the included X-Mount system make it a flexible indoor/outdoor surface speaker for efficient installation.

Product Description

The AD-S10T is a two-way full-range design pairing a 10-inch weather-resistant paper-cone woofer on a 2.5-inch voice coil with a 1-inch compression driver on a 1.4-inch voice coil coupled to a baffle-integrated waveguide. QSC Directivity Matched Transition (DMT) matches low- and high-frequency coverage at the crossover for a coherent 90-degree axisymmetric pattern. A built-in low-saturation transformer lets the speaker operate over a 70/100V distributed line or in direct 8-ohm low-impedance mode, with an 8-ohm bypass. The ABS enclosure exceeds IEC60529 IP-54 for dust and splash resistance, with a sealed input panel and weather cup and a powder-coated aluminum grille free of logos. The included QSC X-Mount integral plate allows four-orientation rotation and includes a theft-resistant tab, and four M10 threaded inserts support eyebolt suspension or an optional yoke bracket. Finished in white (RAL 9010) and paintable to match decor.

Key Features

• 70/100V or Low-Impedance Operation — A built-in low-saturation transformer with 8-ohm bypass lets the speaker run on distributed 70/100V lines or in direct low-impedance mode.
• 10-Inch Two-Way Design — A 10-inch paper-cone woofer and 1.4-inch compression driver provide full-range output for commercial reinforcement.
• DMT Coverage — Directivity Matched Transition delivers uniform 90-degree axisymmetric coverage with smooth off-axis response.
• IP-54 Weather Resistance — An ABS enclosure with sealed input panel and powder-coated aluminum grille exceeds IP-54 for dust and splash resistance.
• Included X-Mount System — The X-Mount integral plate rotates in four orientations and includes a theft-resistant tab for fast, secure installation.
• M10 Suspension Points — Four M10 threaded inserts support eyebolt suspension or an optional yoke bracket.

Typical Applications

• House of worship sound reinforcement
• Multi-purpose rooms and commercial meeting spaces
• Auditoriums and performance spaces
• Retail, restaurant, and concourse audio

Technical Specifications

Frequently Asked Questions

Can the AD-S10T run on a 70V or 100V line? Yes. A built-in low-saturation transformer supports 70/100V distributed audio, with an 8-ohm bypass for direct low-impedance operation.

How is it mounted? The included X-Mount integral plate rotates in four orientations and includes a theft-resistant tab; four M10 inserts allow eyebolt suspension or an optional yoke bracket.

Is it suitable for damp or outdoor locations? The enclosure meets IEC60529 IP-54 for dust and splash resistance with a sealed input panel and weather cup.

How does it integrate with a QSC system? Intrinsic Correction voicing filter sets are available through Q-SYS processing and CXD amplifiers for QSC-approved tuning.

What about warranty and support? The AD-S10T is covered under QSC warranty terms; contact Creation Networks support for system design and AV integration assistance.
