QSC AD-C81Tw – AcousticDesign Ceiling-Mount Subwoofer System (White)
Product Overview

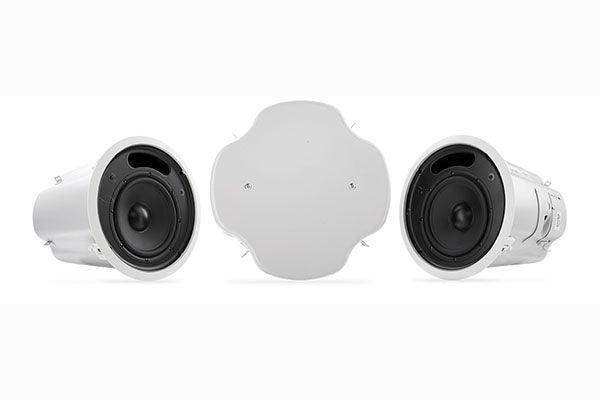

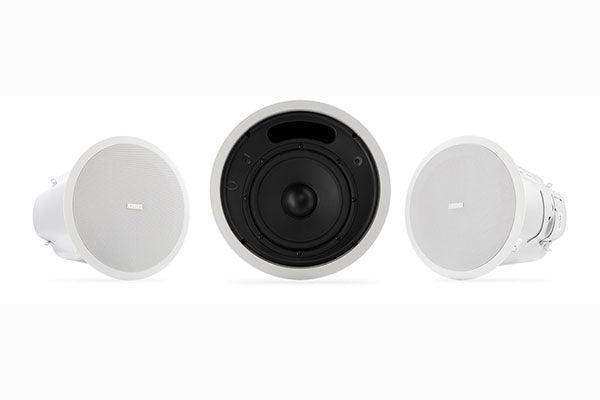

The QSC AD-C81Tw is an 8-inch ceiling-mount subwoofer system that supplements distributed audio with low-frequency extension and is acoustically matched to the AcousticDesign Series. It suits commercial spaces that need fuller low end from an in-ceiling system without floor-standing subwoofers.
Product Description
The QSC AD-C81Tw ceiling subwoofer uses an 8-inch polypropylene-cone woofer with a synthetic rubber surround and a large port for low-frequency extension below 40 Hz without undesirable port turbulence. It is rated for 100 watts continuous power handling with 400-watt peaks and includes a defeatable passive 120 Hz low-pass filter that can be bypassed from the front baffle for use with outboard crossovers. A 70/100V multi-tap transformer with 8-ohm bypass supports distributed and low-impedance systems, and the included C-ring and tile rails speed ceiling installation.
Key Features
- 8-inch polypropylene woofer — The polypropylene cone resists humidity and works with the large port for extension below 40 Hz.
- Defeatable 120 Hz filter — A passive 120 Hz low-pass filter is defeatable from the front baffle for use with outboard crossovers.
- 100W continuous handling — The system is rated for 100 watts continuous and 400-watt peaks for sustained low-frequency support.
- 70/100V multi-tap transformer — The transformer offers multiple taps with an 8-ohm bypass for distributed or low-impedance use.
- Tile-rail mounting — Included C-ring and tile rails with side cable entry speed ceiling installation.
Typical Applications
- Commercial meeting space
- Multi-purpose room
- House of worship
- Auditorium
Technical Specifications
| Specification | Detail |
|---|---|
| Type | 8-inch ceiling-mount subwoofer system |
| Woofer | 8-inch polypropylene cone |
| Power handling | 100 W continuous, 400 W peak |
| Low-frequency extension | Below 40 Hz |
| Filter | Defeatable passive 120 Hz low-pass |
| Transformer | 70/100V multi-tap with 8-ohm bypass |
| Mounting | C-ring and tile rails, side cable entry |
| Color | White |
Frequently Asked Questions
What does the AD-C81Tw add to a system?
It supplies in-ceiling low-frequency extension below 40 Hz to supplement AcousticDesign full-range ceiling speakers.
Can the internal filter be bypassed?
Yes. The passive 120 Hz low-pass filter is defeatable from the front baffle for use with outboard crossovers.
Does it support 70V distributed audio?
Yes. A 70/100V multi-tap transformer with an 8-ohm bypass is included.
What warranty applies?
Refer to QSC's AcousticDesign warranty terms or contact Creation Networks support for current coverage.
