QSC AD-C6T-ZB-WH – AcousticDesign 6.5-Inch Zero-Bezel Ceiling Speaker (Pair, White)

Product Overview

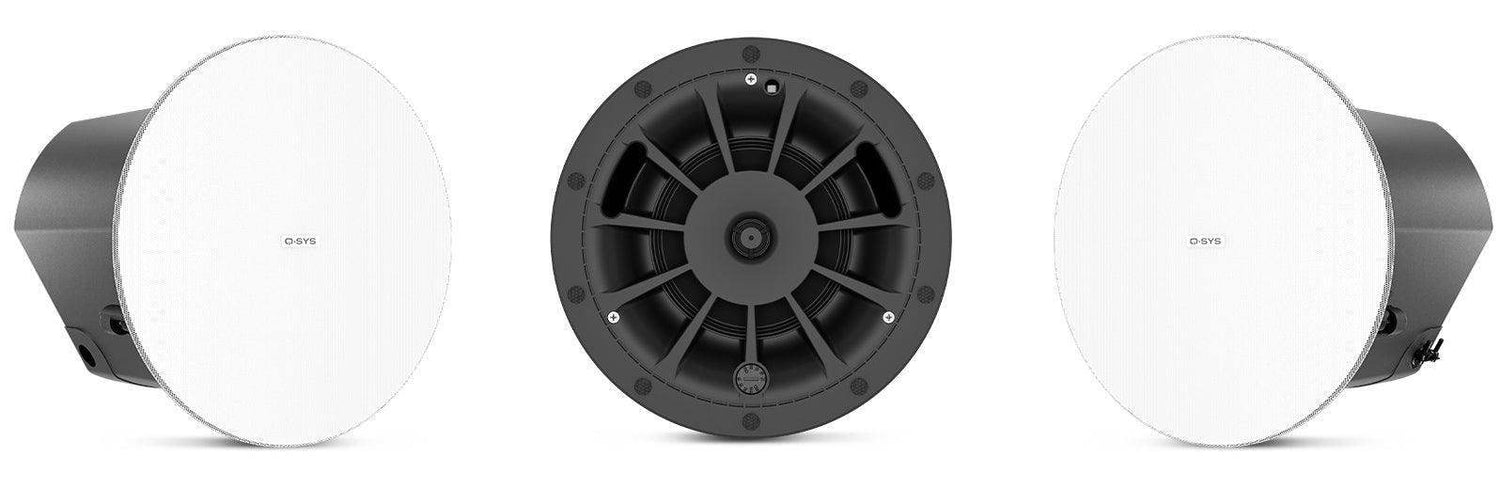

The QSC AD-C6T-ZB-WH is a 6.5-inch two-way, zero-bezel ceiling speaker from the AcousticDesign Series, sold as a white pair. This trimless commercial ceiling loudspeaker delivers foreground and background sound on 70V/100V distributed lines or a 16-ohm bypass, with a sleek flush appearance for hospitality, corporate, retail, and education spaces. Its consistent voicing matches the wider AcousticDesign family for clean multi-zone deployments.

Product Description

The AD-C6T-ZB combines a 6.5-inch paper cone woofer with a 0.75-inch aluminum dome tweeter in a bass-reflex enclosure, delivering full-range clarity from 65 Hz to 20 kHz. A DMT (Directivity Matched Transition) waveguide keeps the high-frequency pattern matched to the woofer for even coverage across the listening area. The integrated transformer offers selectable 70V/100V taps plus a 16-ohm bypass, so integrators can drop it into distributed-audio designs or drive it directly, and Intrinsic Correction voicings are available through the Q-SYS Platform for plug-and-play tuning with QSC networked amplifiers.

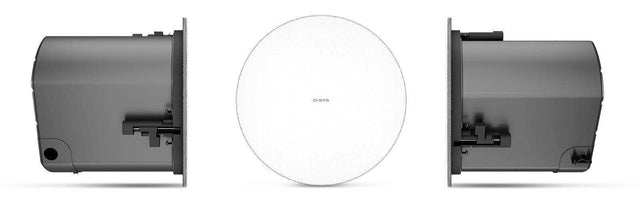

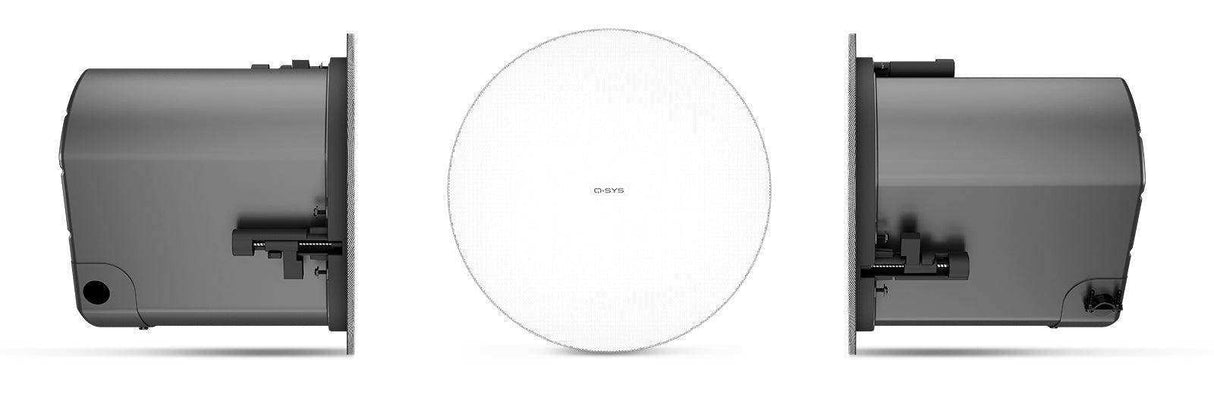

Installation is handled by three double-stepped dog-ear clamps, a snap-fit magnetic grille, and a removable conduit cover plate for pre-install wiring. The speaker shares its tonal character with surface and pendant AcousticDesign models for blended systems. For a shallower plenum fit, see the QSC AD-C6T-LPZB-WH low-profile version, or step down to the QSC AD-C4T-LPZB-WH 4.5-inch model. A black-bezel finish is available with the AD-C245BG-BK black grille.

Key Features

• Zero-bezel trimless design — Flush ceiling appearance that blends into upscale architectural finishes.
• 6.5-inch two-way bass-reflex — Paper cone woofer and 0.75-inch aluminum dome tweeter for full-range clarity from 65 Hz to 20 kHz.
• DMT waveguide — Matched directivity for smooth, even coverage across the listening area.
• 70V/100V with 16-ohm bypass — Selectable transformer taps for distributed audio or low-impedance direct drive.
• Consistent series voicing — Tonal match with AcousticDesign ceiling, surface, and pendant models for multi-zone systems.
• Intrinsic Correction ready — Optimized voicings through the Q-SYS Platform and QSC networked amplifiers.
• Installer-friendly mounting — Three double-stepped dog-ear clamps, snap-fit magnetic grille, and removable conduit cover plate.
• Signal White finish — RAL 9003 with an optional black grille sold separately.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• House of worship
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Is the AD-C6T-ZB-WH sold individually or as a pair? It is priced and sold as a white pair; each quantity includes two loudspeakers.

What is the difference between the ZB and LPZB versions? Both share the zero-bezel look; the LPZB is a low-profile model with a shallower depth for tight ceiling plenums.

Can it run on a 70V or 100V system? Yes. Selectable transformer taps support 70V and 100V distributed lines, with a 16-ohm bypass for direct low-impedance use.

Is a black grille available? Yes. The AD-C245BG-BK black grille is sold separately for a black-bezel finish.

What about warranty and support? Coverage follows QSC's standard warranty terms. For current warranty details or design help, contact Creation Networks support.
