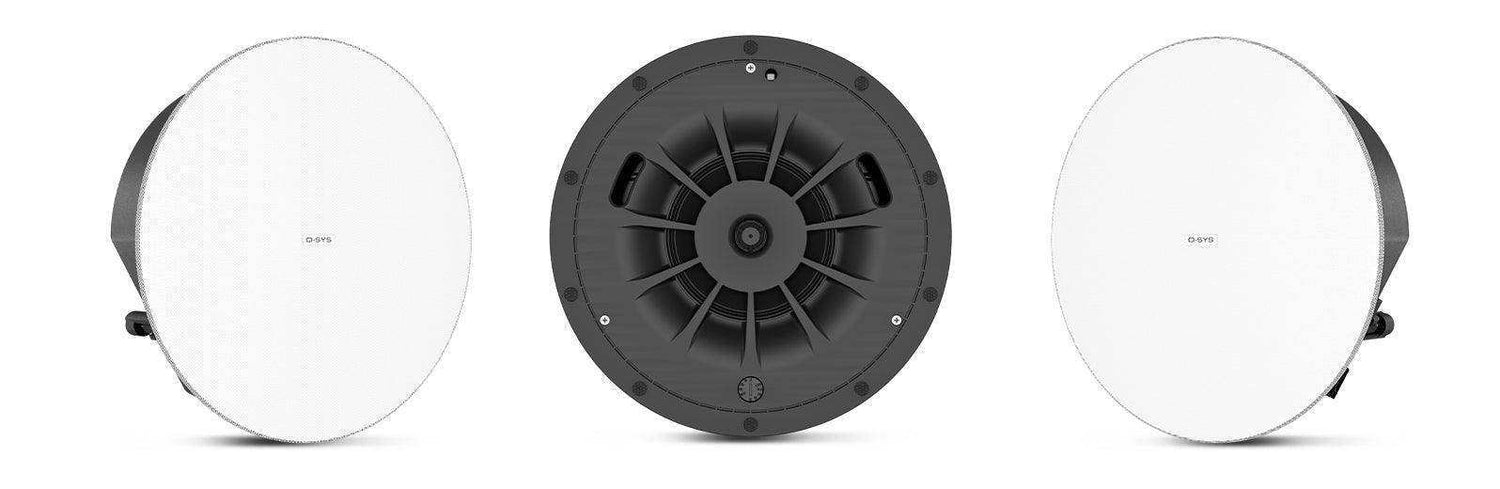

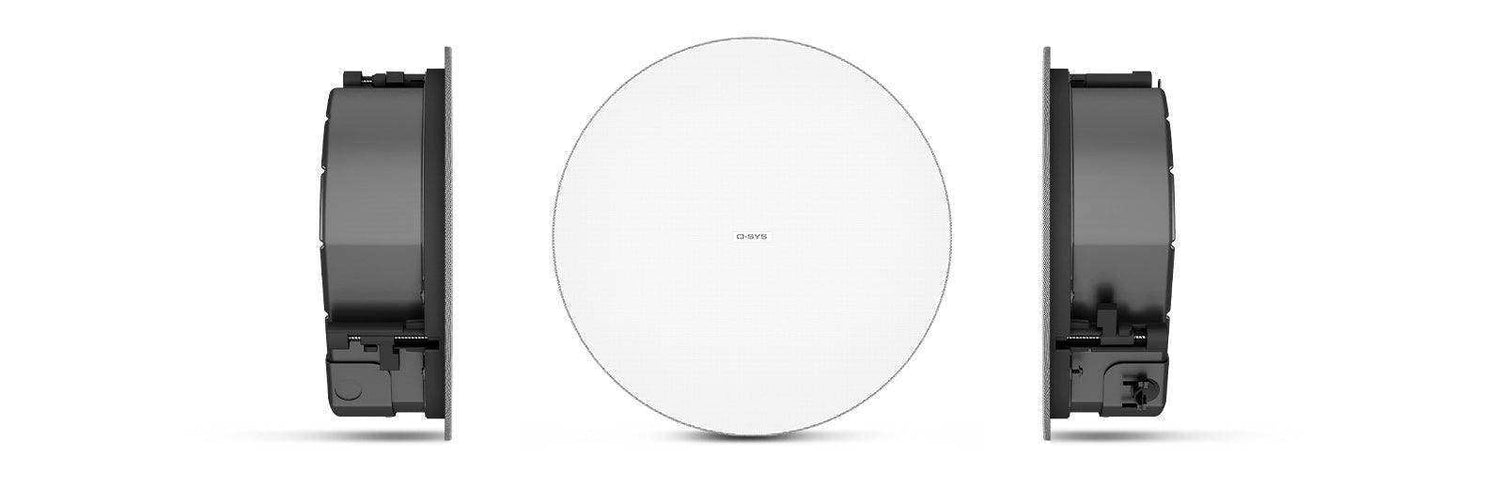

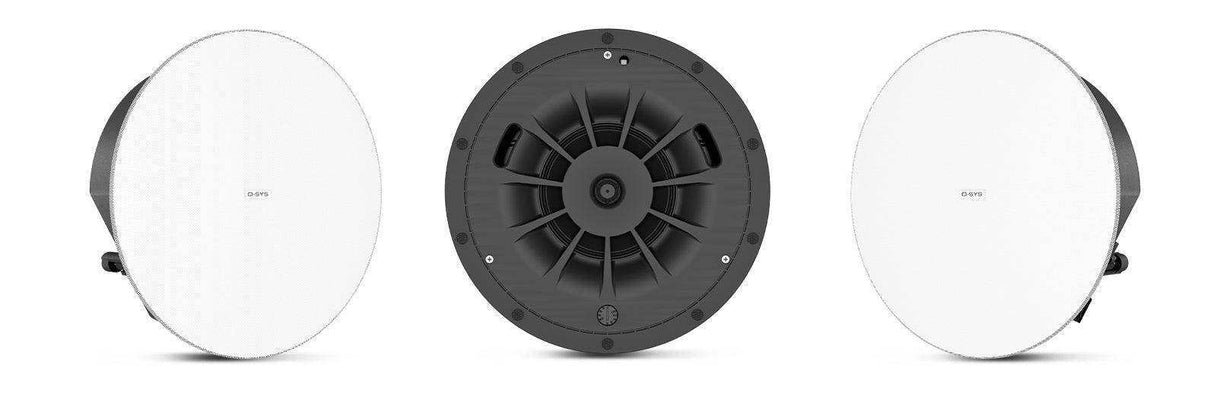

QSC AD-C6T-LPZB-WH – AcousticDesign 6.5-Inch Low-Profile Zero-Bezel Ceiling Speaker (Pair, White)

Product Overview

The QSC AD-C6T-LPZB-WH is a 6.5-inch two-way, low-profile, zero-bezel ceiling speaker from the AcousticDesign Series, sold as a white pair. This flush-mount commercial ceiling loudspeaker eliminates the visible grille ring of standard ceiling speakers for a trimless, near-invisible look in high-end architectural interiors, while running on 70V/100V distributed lines or a 16-ohm bypass. Its low-profile depth fits shallow ceiling plenums where standard-depth ceiling speakers will not install.

Product Description

The AD-C6T-LPZB pairs a 6.5-inch weather-treated paper cone woofer with a 0.75-inch aluminum dome tweeter on a DMT (Directivity Matched Transition) waveguide, producing a coherent 135-degree conical coverage pattern with even off-axis response. A low-loss 30-watt transformer offers selectable 70V/100V taps and a 16-ohm bypass, and Intrinsic Correction voicings deploy through the Q-SYS Platform, including CX-Q networked amplifiers. The 3x double-stepped dog-ear blind-mount system captures 0 to 2.25 inches of ceiling thickness, and the snap-fit magnetic grille carries a removable logo for branding-free installs.

Sharing the consistent tonal character of the AcousticDesign Series, the AD-C6T-LPZB blends with surface and pendant models in multi-zone designs. For smaller rooms or fill positions, see the QSC AD-C4T-LPZB-WH 4.5-inch ceiling speaker, or compare the standard-depth QSC AD-C6T-ZB-WH. A black-bezel finish is available with the AD-C305BG-BK black grille.

Key Features

• Zero-bezel trimless design — Flush, near-invisible ceiling appearance for premium architectural interiors.
• Low-profile depth — Overall height of about 3.95 inches fits shallow ceiling plenums.
• 6.5-inch two-way transducer set — Weather-treated paper cone woofer with a 0.75-inch aluminum dome tweeter on a DMT waveguide.
• 135-degree conical DMT coverage — Matched waveguide-to-woofer transition for uniform frequency response over the coverage area.
• 70V/100V with 16-ohm bypass — 30-watt transformer with selectable taps up to 60 W for distributed or low-impedance use.
• Intrinsic Correction ready — Optimized voicings deploy through the Q-SYS Platform and CX-Q amplifiers.
• Blind-mount dog-ear system — 3x double-stepped clamps capture 0 to 2.25 inches of ceiling thickness with a snap-fit magnetic grille.
• Plenum-rated safety listings — UL1480 and UL2043 certified for use in air-handling spaces.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• House of worship
• Government space

Technical Specifications

Frequently Asked Questions

Is the AD-C6T-LPZB-WH sold individually or as a pair? It is priced and sold as a white pair; each quantity includes two loudspeakers.

What ceiling depth does the blind-mount system support? The 3x double-stepped dog-ear clamps capture 0 to 2.25 inches of ceiling thickness, and the low-profile back can fits shallow plenums.

Can it run on a 70V or 100V system? Yes. A 30-watt transformer provides selectable 70V and 100V taps up to 60 W, plus a 16-ohm bypass for low-impedance use.

Is a black grille available? Yes. The AD-C305BG-BK black grille is sold separately for installations requiring a black-bezel finish.

What about warranty and support? Coverage follows QSC's standard warranty terms. For current warranty details or design help, contact Creation Networks support.
