QSC AD-C1200 – AcousticDesign Ceiling-Mount Loudspeaker
Product Overview
The QSC AD-C1200 is a 12-inch coaxial ceiling-mount loudspeaker for music playback, public address, and distributed audio in spaces that demand high output from an in-ceiling source. It is designed for larger commercial venues that need long-throw coverage from the ceiling plane.
Product Description

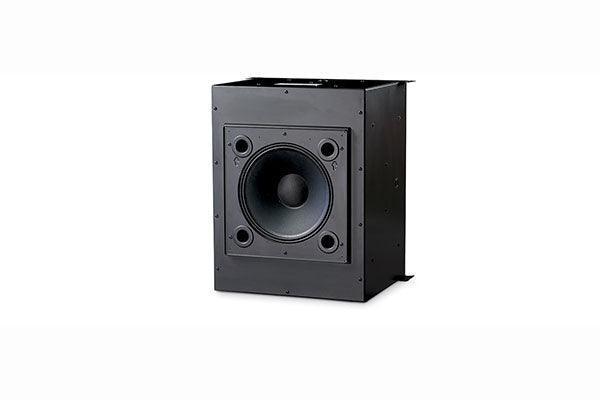

The QSC AD-C1200 ceiling loudspeaker combines a 12-inch low-frequency woofer with a 1.75-inch diaphragm compression driver in a coaxial arrangement, with the transformer and crossover network factory-mounted on a steel baffle. It is rated for 300 watts continuous power handling with 600-watt peaks, and the included 70/100V multi-tap transformer allows distributed or low-impedance operation. The baffle mounts to the QSC AD-C1200BB enclosure or any roughly 2.5-cubic-foot enclosure using industry-standard transducer dimensions. Add the matching QSC AD-C1200BB enclosure and the AD-C1200SG square grille to complete the installation.
Key Features
- 12-inch coaxial design — A 12-inch woofer and 1.75-inch compression driver in a coaxial layout deliver high-output, full-range ceiling coverage.
- 300W continuous handling — The loudspeaker handles 300 watts continuous with 600-watt peaks for demanding music and paging.
- Factory-mounted network — The transformer and crossover are factory-mounted on a steel baffle for consistent, low-tolerance performance.
- 70/100V or low-impedance — The included multi-tap transformer supports distributed or low-impedance operation.
- Flexible enclosure mounting — The baffle fits the AD-C1200BB enclosure or any ~2.5 cubic-foot enclosure with standard transducer dimensions.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Type | 12-inch coaxial ceiling loudspeaker |
| Woofer | 12-inch low-frequency |
| Compression driver | 1.75-inch diaphragm |
| Power handling | 300 W continuous, 600 W peak |
| Transformer | 70/100V multi-tap (distributed or low-impedance) |
| Enclosure | Mounts to AD-C1200BB or ~2.5 cu ft enclosure (sold separately) |
Frequently Asked Questions
Does the AD-C1200 include an enclosure?
No. The baffle assembly mounts to the AD-C1200BB enclosure or any roughly 2.5-cubic-foot enclosure with standard transducer dimensions; the enclosure is sold separately.
Can it run on a 70V system?
Yes. The included multi-tap transformer supports 70V and 100V distributed audio as well as low-impedance operation.
Where is it typically used?
It suits larger venues such as auditoriums and houses of worship that need high output from a ceiling-mounted loudspeaker.
What warranty applies?
Refer to QSC's AcousticDesign warranty terms or contact Creation Networks support for current coverage.
