QSC AD-C.SUB – AcousticDesign 6.5-Inch Ceiling Subwoofer (Black)
Product Overview

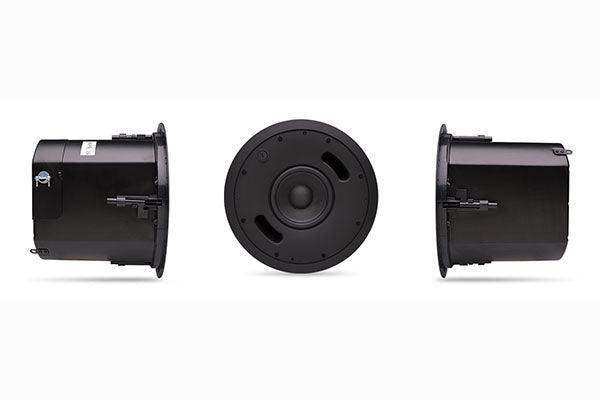

The QSC AD-C.SUB is a black 6.5-inch passive ceiling subwoofer that adds low-frequency depth to AcousticDesign SUB/SAT background music systems. Designed for trouble-free commercial installation, this ceiling subwoofer drives up to four satellites and integrates with QSC distributed audio systems in retail, hospitality, and commercial meeting spaces.
Product Description
The QSC AD-C.SUB ceiling subwoofer uses a dual voice-coil design for improved thermal dissipation and higher sustained output in continuous background music use. A low-saturation, low-loss 70/100V transformer with 4-ohm bypass supports distributed and low-impedance commercial systems, while four built-in high-pass filtered outputs feed up to four AcousticDesign satellites to reduce amplifier channel count. Locking 4-pole Euroblock connectors, a double-stepped long-travel dog-ear blind-mount system, and supplied C-ring, tile rails, and cut-out template speed AV system integration. UL1480 and UL2043 certifications support commercial and plenum ceiling use. Pair it with the matching QSC AD-C.SAT ceiling satellites for a complete SUB/SAT system.
Key Features
- Dual voice-coil driver — The 6.5-inch dual voice-coil design improves thermal dissipation for higher sustained output.
- Drives four satellites — Four built-in high-pass filtered outputs feed up to four AcousticDesign satellites from one subwoofer.
- 70/100V transformer — A low-loss transformer with 4-ohm bypass supports distributed and low-impedance commercial systems.
- Blind-mount system — A double-stepped long-travel dog-ear blind-mount system with included rails and template speeds ceiling installation.
- Plenum-rated certification — UL1480 and UL2043 certifications support commercial and plenum ceiling use.
- Locking Euroblock connectors — Locking 4-pole Euroblock terminals keep field wiring secure.
Typical Applications
- Commercial meeting space
- Multi-purpose room
- House of worship
- Auditorium
Technical Specifications
| Specification | Detail |
|---|---|
| Type | 6.5-inch passive ceiling subwoofer, sealed |
| Driver | Dual voice-coil |
| Transformer | 70/100V low-loss with 4-ohm bypass |
| Satellite outputs | 4 built-in high-pass filtered outputs |
| Connector | Locking 4-pole Euroblock |
| Mounting | Double-stepped dog-ear blind mount, C-ring and tile rails included |
| Certification | UL1480, UL2043 |
| Color | Black |
Frequently Asked Questions
How many satellites can the AD-C.SUB support?
It provides four built-in high-pass filtered outputs, driving up to four AcousticDesign satellites from a single subwoofer.
Does it work on a 70V/100V system?
Yes. The onboard transformer supports 70V and 100V distributed audio with a 4-ohm bypass tap.
Is it plenum rated?
The AD-C.SUB carries UL1480 and UL2043 certifications for commercial and plenum ceiling installation.
What warranty applies?
Refer to QSC's AcousticDesign warranty terms or contact Creation Networks support for current coverage.
