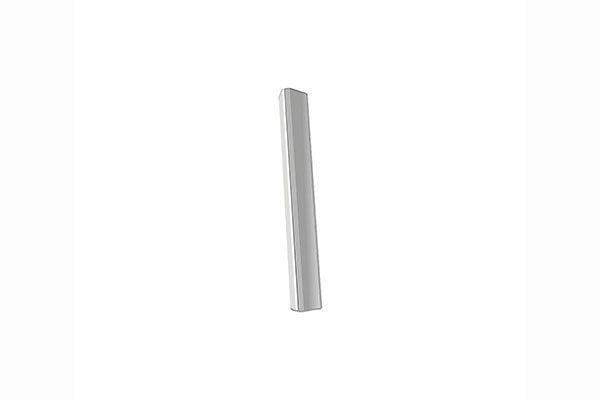

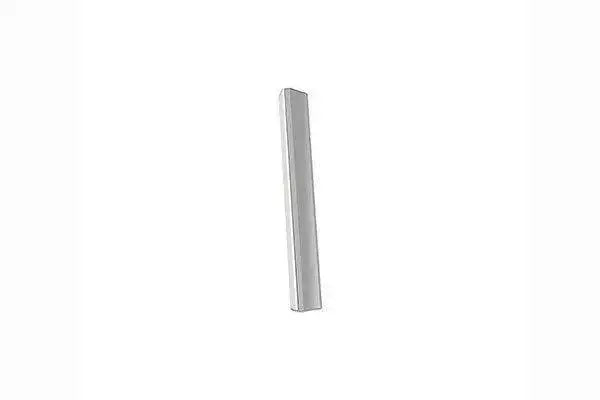

QSC AD-S162T – AcousticDesign 16-Driver Column Surface-Mount Loudspeaker (White)

Product Overview

The QSC AD-S162T is a 16-driver column surface-mount loudspeaker delivering high-output, long-throw, full-range coverage for large, acoustically challenging commercial spaces. Part of the AcousticDesign Series, it operates on 70V/100V distributed lines or an 8-ohm bypass and offers a selectable broad/narrow beam contour.

Its tall column format with a pan/tilt mount projects intelligible sound deep into reverberant venues such as houses of worship, atriums, auditoriums, and transportation terminals while remaining close to the wall with up to -20° downward tilt.

Product Description

The AD-S162T houses sixteen weather-treated 2.75-inch paper-cone transducers, covering 90 Hz to 17 kHz. In narrow mode it provides 89 dB sensitivity, a rated 160° horizontal by 15° vertical pattern, and a 112 dB continuous / 118 dB peak SPL; a wide-beam contour broadens vertical coverage for shorter rooms. Recommended amplifier power is 250W.

A low-saturation 70/100V transformer with selectable taps and an 8-ohm bypass supports distributed or low-impedance systems through a screw-down Euroblock connector with loop-through wiring under a sealable input weather cup. A close-to-wall pan/tilt bracket and safety eyebolt are included.

Constructed of rugged, paintable powder-coated aluminum with weather-treated cones, the AD-S162T carries an IP-54 rating with UV inhibitors on white models. Complete EASE, CLF, CAD, and BIM data supports system modeling. For shorter throw, the QSC AD-S802T offers the same column platform in an eight-driver format.

Key Features

• Sixteen-driver high-output column — Sixteen weather-treated 2.75-inch transducers deliver long-throw, intelligible coverage with a 118 dB peak SPL.
• Selectable broad/narrow beam — A switchable beam contour adapts vertical coverage to long, reverberant rooms or shorter spaces.
• 70/100V operation with 8-ohm bypass — A low-saturation transformer supports distributed audio plus a low-impedance bypass tap.
• Close-to-wall pan/tilt mount — The included bracket keeps the column near the wall while allowing up to -20° downward tilt.
• Weather-protected wiring — A screw-down Euroblock with loop-through sits under a sealable input weather cup.
• IP-54 paintable aluminum — Rugged powder-coated aluminum with weather-treated cones is paintable and rated IP-54, with UV inhibitors on white models.
• Design data available — Complete EASE, CLF, CAD, and BIM information supports accurate modeling and specification.

Typical Applications

• Government space
• Commercial meeting space
• Multi-purpose room
• Training room
• Auditorium
• House of worship

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What does the broad/narrow beam contour do?
It switches the column's vertical coverage between a narrow pattern for long-throw projection in deep, reverberant rooms and a wider pattern for shorter spaces, without changing the physical install.

How much amplifier power is recommended?
QSC recommends approximately 250 W; rated noise power is 200 W with a 118 dB peak SPL in narrow mode.

Can it be installed outdoors?
Yes. It is IP-54 rated with UV inhibitors on white models and paintable aluminum construction for indoor or covered outdoor use.

What warranty and support come with this loudspeaker?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
