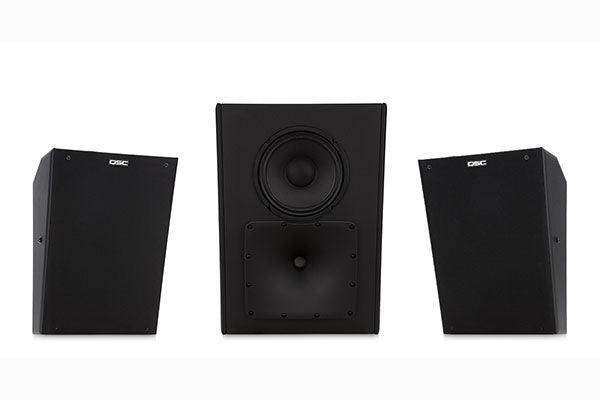

QSC SR-8200 – 8-Inch 2-Way Cinema Surround Loudspeaker with HF Horn (Pair)

Product Overview

The QSC SR-8200 is an 8-inch two-way cinema surround loudspeaker with a high-frequency horn, sold in pairs, developed for professional motion-picture playback in smaller cinemas. Part of the DCS Digital Cinema Series, it combines high power handling, excellent sensitivity, and extended bass in a compact enclosure.

A long-throw 8-inch woofer and 1.4-inch titanium-diaphragm compression driver with DMT and an axisymmetric waveguide deliver uniform power response and 90° x 90° coverage at 94 dB sensitivity.

Product Description

The SR-8200 features a high-power, long-throw 8-inch (200 mm) woofer with a 2-inch (50 mm) voice coil coupled to a 1.4-inch (35 mm) titanium-diaphragm compression driver. Its 200 W continuous power rating and sophisticated crossover with protection circuitry provide dependable operation under demanding D-Cinema soundtracks.

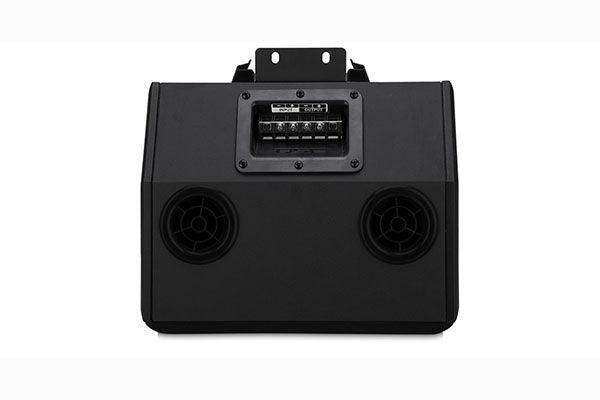

Uniform power response results from DMT (Directivity Matched Transition), which matches LF and HF coverage in the crossover region, while an axisymmetric waveguide delivers consistent performance on both vertical and horizontal axes for 90° x 90° coverage. The MDF enclosure has a 15° down-angle baffle and easily accessible terminals on top.

Pre-installed speaker-side hardware allows fast single-installer mounting, with down-angles of 15° (standard) or 23° (optional) and an available YM-46 U-bracket. The compact black enclosure ships in pairs. For a smaller surround, see the QSC SR-800; for larger rooms, the QSC SR-1020.

Key Features

• 8-inch two-way with HF horn — A long-throw 8-inch (200 mm) woofer and 1.4-inch titanium compression driver deliver high output.
• Directivity Matched Transition — DMT matches LF and HF coverage at the crossover for balanced sound between woofer and horn.
• Axisymmetric waveguide — Provides consistent 90° x 90° performance on both vertical and horizontal axes.
• 200 W continuous power — A robust power rating with protective crossover circuitry meets D-Cinema demands; 94 dB sensitivity.
• 15° down-angle baffle — The MDF enclosure aims sound downward with easily accessible top-mounted terminals.
• Fast single-installer mounting — Pre-installed hardware with 15° (standard) or 23° (optional) down-angles and an available YM-46 U-bracket.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What does DMT do on the SR-8200?
Directivity Matched Transition matches low- and high-frequency coverage in the crossover region, producing balanced sound between the woofer and horn for uniform power response.

What coverage and sensitivity does it offer?
It provides 90° x 90° coverage via an axisymmetric waveguide and 94 dB sensitivity.

Is it sold individually?
The SR-8200 ships in pairs to reduce shipping cost.

What warranty and support come with this loudspeaker?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
