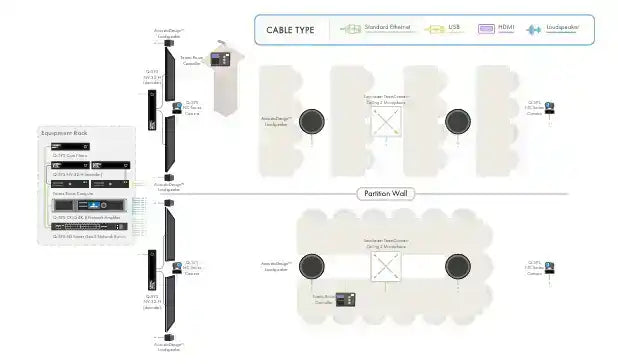

Q-SYS Google Meet Meeting Space Solution: Divisible Room

Meeting Space Solution: Divisible Room

Q-SYS brings the Google Meet experience to high-impact spaces with a portfolio of certified devices tailored to your room’s design—whether in-ceiling, open ceiling, or directional audio is required. The Q-SYS Core Processor integrates audio processing, multi-camera switching, automation, and room control, enabling scalable, consistent deployments that meet both technical and user experience goals.

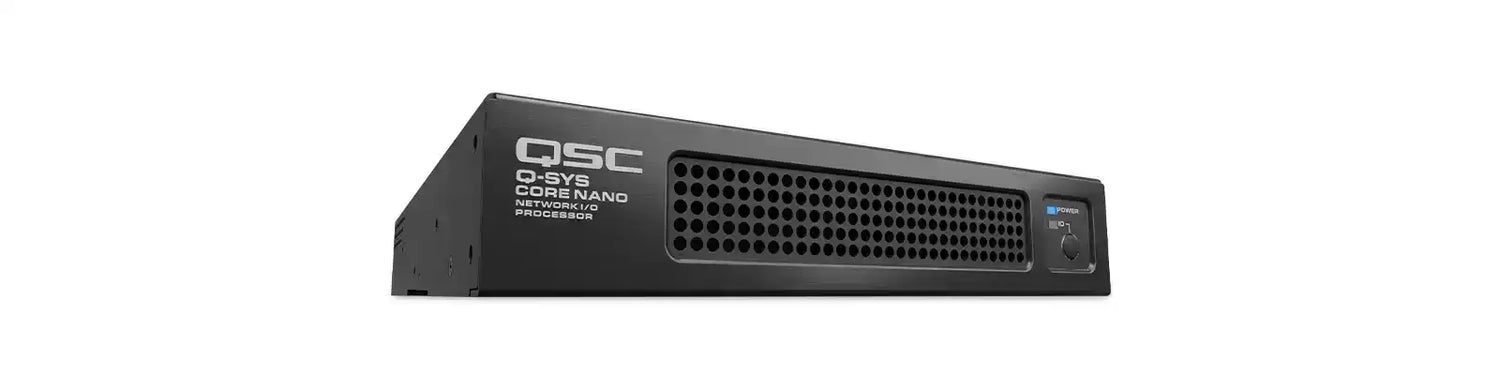

 • The Q-SYS Core Nano Processor is the hub of the system. It connects to the Google Meet Compute with a single driverless USB connection for audio and video.
 • The Certified Google Meet sample design provides certified audio settings for Google Meet Rooms, including advanced configurable acoustic echo cancellation (AEC) and noise reduction delivering echo free audio even in the most challenging rooms.

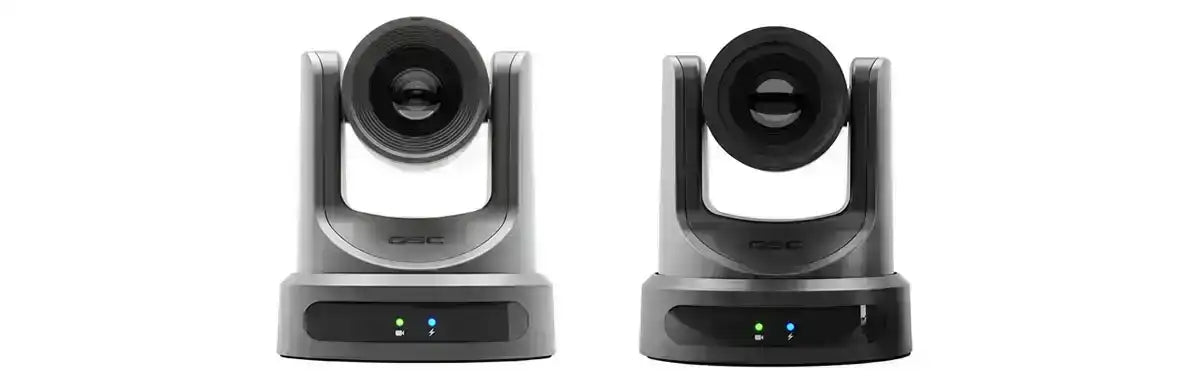

 • Q-SYS NC-12x80 and NC-20x60 network PTZ cameras use the power of the network, allowing you to use as many Q-SYS network conference cameras in the space to provide multiple points of view to frame the right shot.

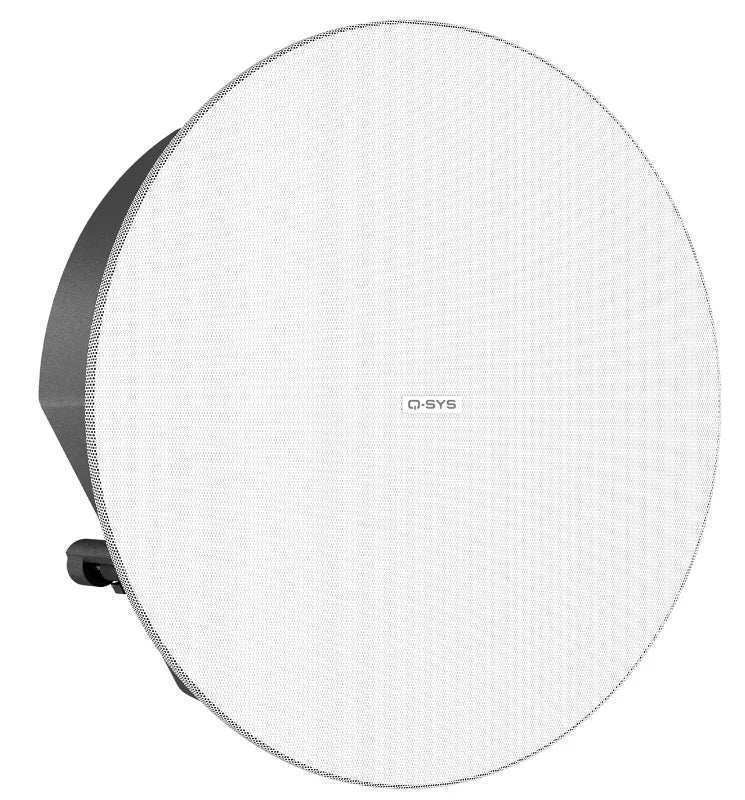

• AcousticDesign™ Series AD-C6T ceiling loudspeakers are ideal for overhead loudspeaker placement for in-ceiling and open ceiling applications respectively.

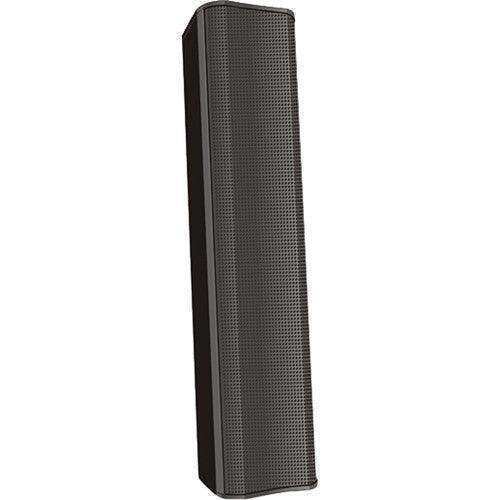

• AcousticDesign™ Series AD-S802T surface column-mount loudspeakers offer directional audio for a more natural videoconferencing experience when mounted beside a display.

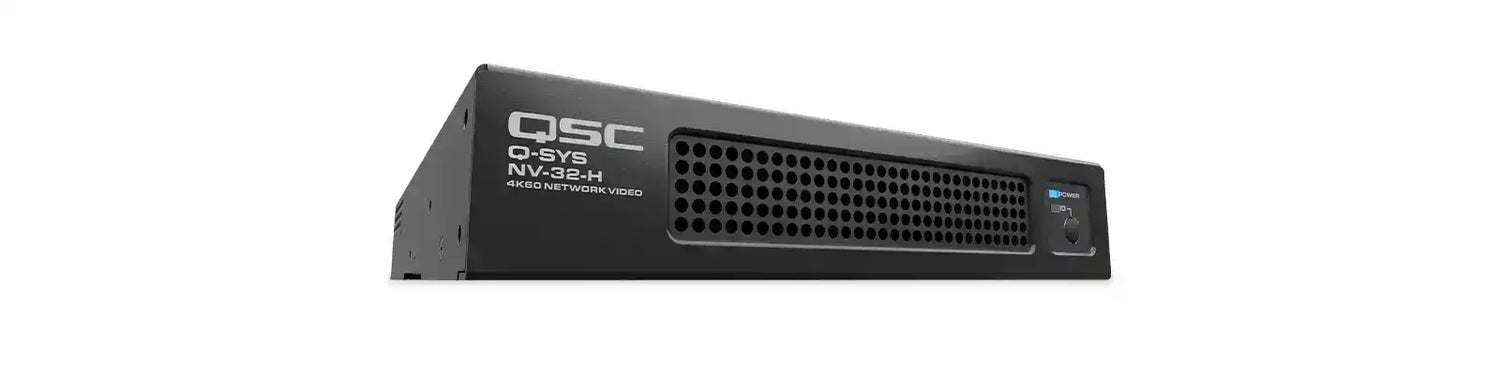

 • Q-SYS NV Series video endpoint allows multi-stream video encoding or decoding for network-based HDMI video distribution.
 • Q-SYS Partner microphones, tested and supported to work with Google Meet, enable flexible room configurations and capture speech from anywhere in the room

Download Guide

Key Features

• Full Google Meet Certification: Ensures native compatibility and trusted performance in enterprise conferencing spaces.
• Q-SYS Core Processor: Offers centralized control and audio DSP with expandable AV capabilities, eliminating the need for multiple processors.
• Sennheiser Ceiling Microphones: Dual TeamConnect Ceiling 2 mics automatically detect and focus on active speakers across the room.
• Optimized Speaker Layout: Includes both column and ceiling loudspeakers for balanced, directional sound that adapts to room layouts.
• Preconfigured QSC Network Switch: Ensures fast, reliable deployment of Q-SYS peripherals.
• USB Integration: A single USB connection simplifies PC-to-processor audio routing, reducing cabling and setup time.
• Flexible, Professional Design: Engineered for commercial-grade reliability, with easy expansion into full room control via Q-SYS.

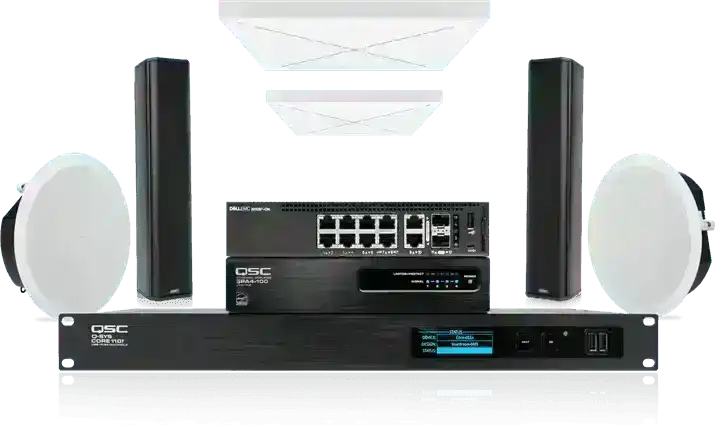

Technical Specifications

1 x Q-SYS Core Nano processor

1x  Netgear GSM4230PX-100NAS network switch

2 x Q-SYS NC-12x80 network camera

2 x Q-SYS NC-20x60 network camera

2 x Sennheiser TeamConnect Ceiling 2 microphone

4 x AD-S802T column surface-mount loudspeaker

4 x AD-C6T-LP ceiling loudspeaker

1 x Q-SYS CX-Q 2K-8 network amplifier

4 x Q-SYS NV-32-H network video endpoint


Audio Technology & Processing

• Google Meet-certified audio profiles for optimal room performance
• Advanced Acoustic Echo Cancellation (AEC) for echo-free remote audio
• Noise Reduction to eliminate background noise while preserving voice clarity
• QSC Intrinsic Correction™ DSP optimizes loudspeaker performance
• Column loudspeakers enhance speech intelligibility and directionality
• Ceiling loudspeakers support overhead audio for extra-large room coverage
• Sennheiser beamforming mics dynamically track speakers without manual adjustment
• HID integration for Teams mute sync with mic LED indicators and room console

Competitive Advantages

• Certified End-to-End: Avoid integration issues with a fully Google Meet-certified audio ecosystem.
• Scalable Architecture: Expand with QIOs and additional devices as room needs evolve.
• Simple USB Integration: Streamline installation with a single audio connection to your PC.
• Professional AV Deployment: Designed to meet the technical demands of IT and AV integrators.
• Natural Audio Presence: Balanced loudspeaker layout and dynamic mic tracking create a lifelike audio environment.

Talk to a Certified AV Expert

Upgrade your Microsoft Teams Room with this scalable, certified audio solution built for performance and reliability. Contact Creation Networks today for custom configuration and deployment support.
