PTZOptics Superjoy IP & Serial PTZ Camera Joystick Controller

PTZOptics SKU: PT-SUPERJOY-G1
No reviews
Price:
$1,299.00 $1,429.00

Description

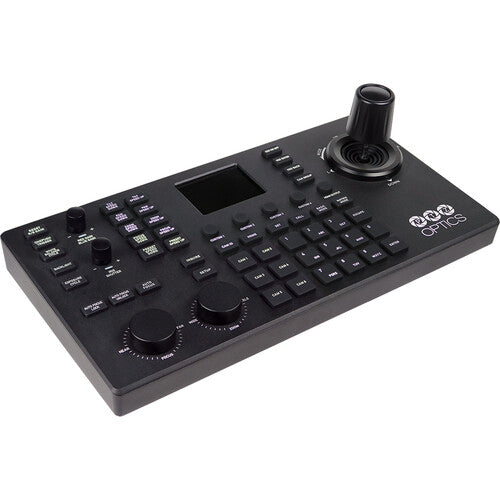

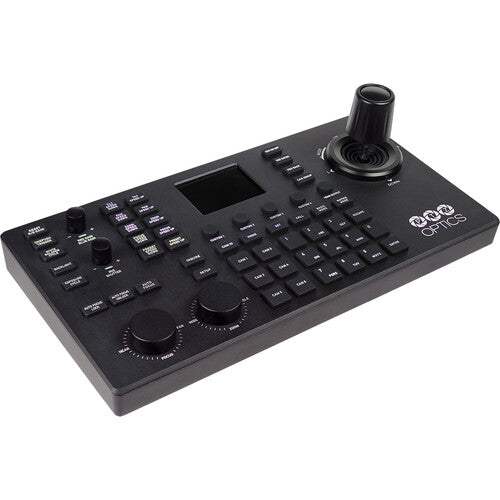

Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics. The SuperJoy offers joystick and button control for up to 28 PTZ cameras, in four groups of seven cameras each, with support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.

The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. An HDMI output allows you to send the camera video to a remote streaming unit, and the status information can also be included in the output. Other features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.

The SuperJoy supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).

  • Pan/Tilt/Zoom/Lock PTZ Controls
  • NDI|HX, IP & Serial Communication
  • Control 4 Groups of 7 Cameras Each
  • VISCA/VISCA-over-IP/Pelco-P & D Support
  • 9 Quick, 4 Super & 255 Total Presets
  • Large LCD with Decoder, HDMI Output
  • Power-over-Ethernet (PoE) Support
  • Simultaneous Multi-Brand Camera Control
  • Import/Export Settings via IP or USB
  • 12 VDC Power Supply Included
Number of Supported Cameras 4 Channels via IP (7 Per Group)
4 Channels via Serial (7 Per Group)

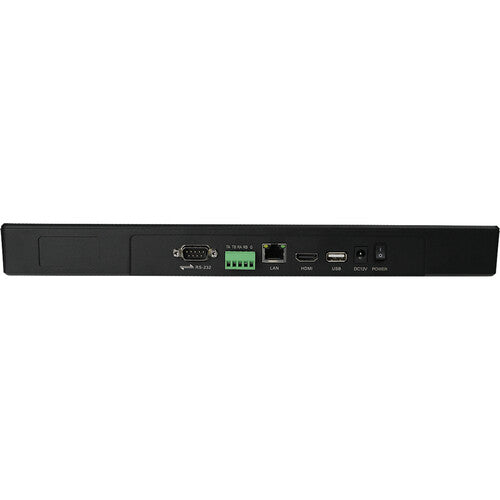

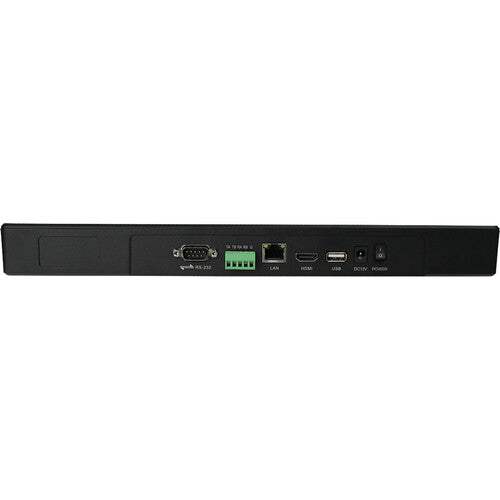

Control I/O 1x RJ45 (LAN)
1x Block (RS-422, RS-485) Output
1x DE-15/DB-15 (Pelco-D, Pelco-P, RS-232, VISCA) Output
Video I/O 1x HDMI (Loop Output)
Controls 1x Pan/Tilt, Zoom Joystick
Touchscreen No
PoE Support PoE 802.3af
Power Consumption 6 W
Security Lock Support No
