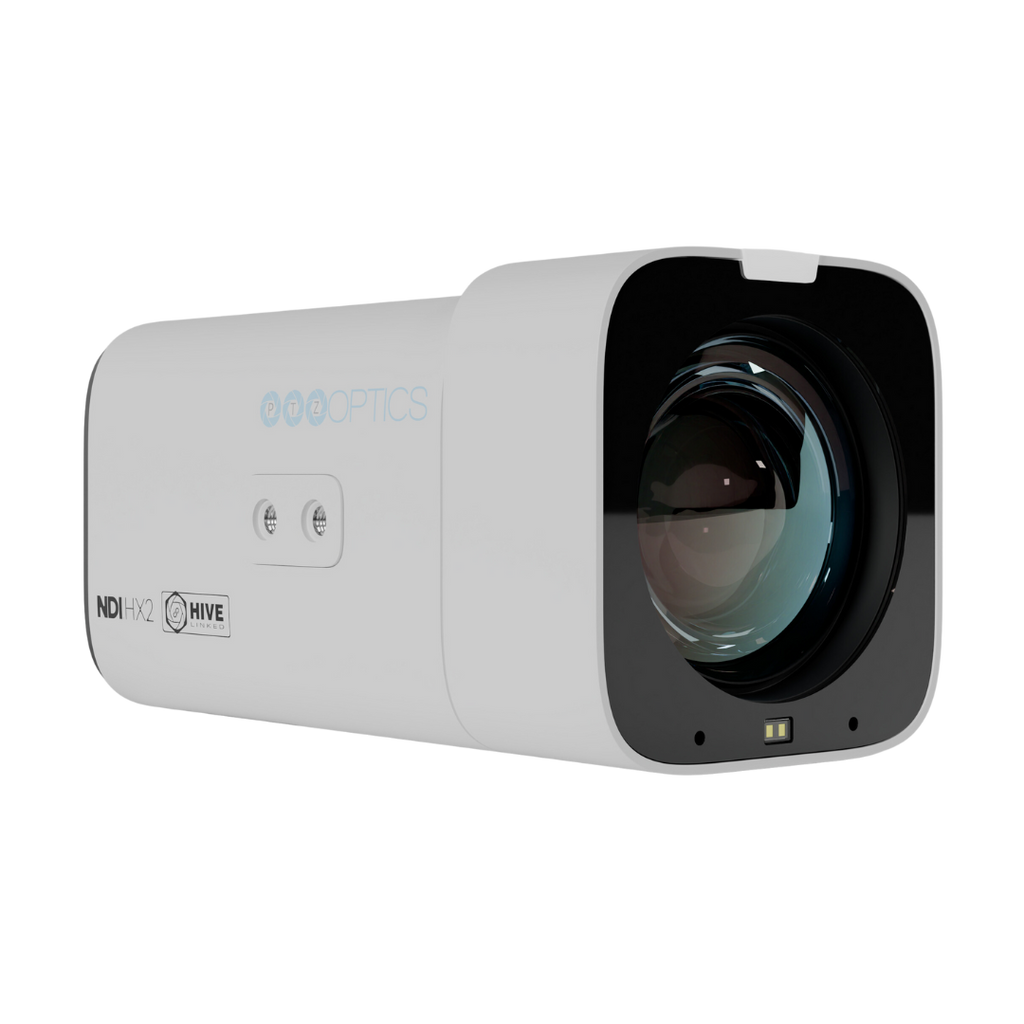

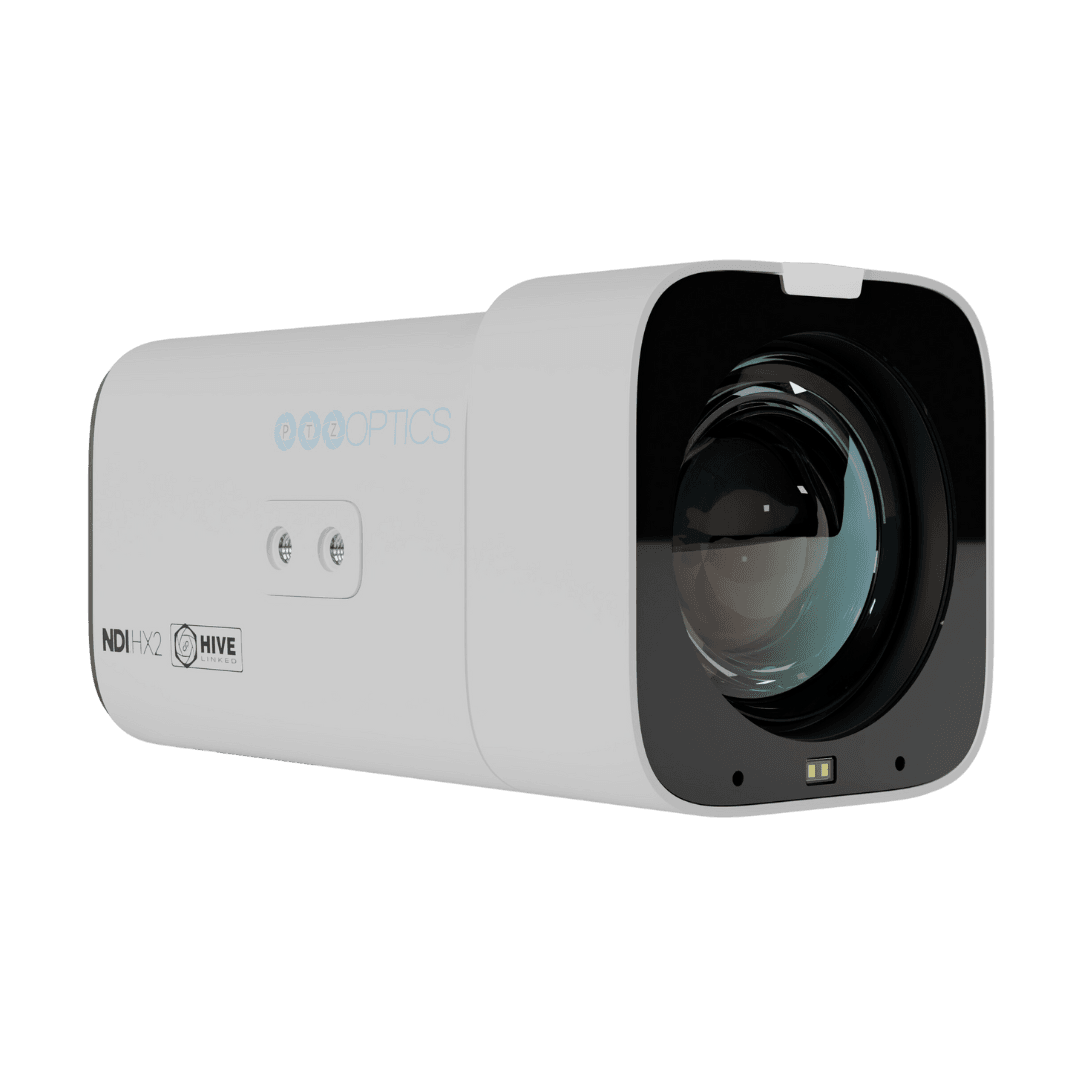

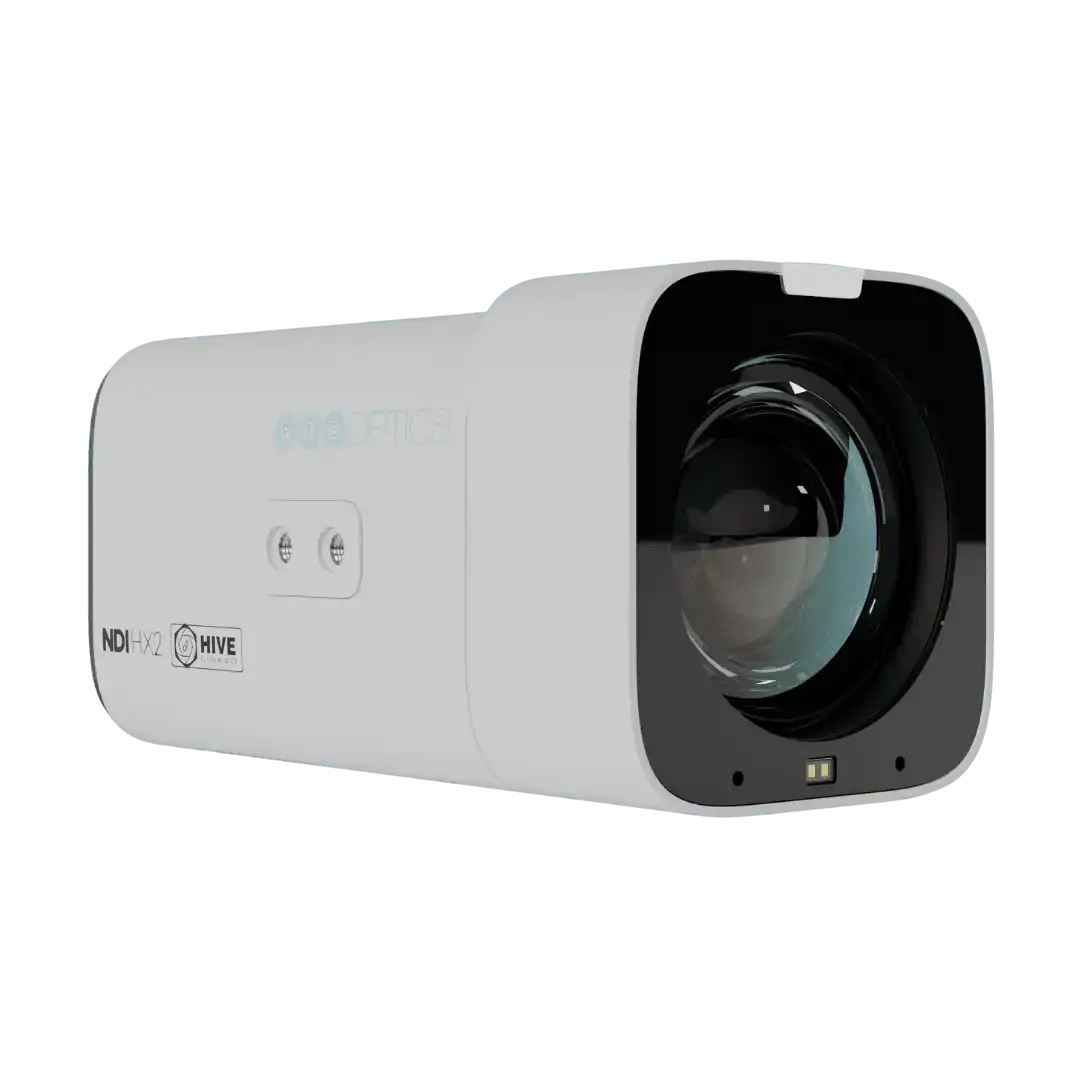

PTZOptics Studio 4K 12x Zoom Box Camera

Product Overview

The PTZOptics Studio 4K 12x Zoom Box Camera (PT12X-STUDIO-4K-GY-G3) is a fixed box-style 4K camera delivering 3840x2160p at 60fps with 12x optical zoom, designed for conference rooms, training rooms, broadcast studios, and houses of worship where a dedicated fixed angle is needed without a motorized pan/tilt head. It outputs simultaneously over HDMI 2.0, 3G-SDI, USB 3.0, and IP with native NDI|HX3, providing broad compatibility with production switchers, conferencing platforms, and network video systems. PoE+ (802.3at) and Hive-Linked connectivity simplify deployment and ongoing remote camera management across distributed facilities.

Product Description

The Studio 4K 12x is a compact, fixed-position box camera built for AV integrators and system designers who need 4K output at a wide field of view without the cost or complexity of a full PTZ head. The 1/2.8" CMOS sensor delivers 8MP (8.4M effective pixels) at 3840x2160p up to 60fps over HDMI 2.0, suitable for direct connection to 4K production switchers and displays. The 12x optical zoom (f = 4.1mm to 49.2mm, F1.8 to F2.68) provides a 72.5° horizontal field of view at wide angle, covering conference tables, podiums, and stages from typical mounting distances. A 3G-SDI BNC output per SMPTE 424M at 1080p 60fps connects to existing broadcast routing and recording infrastructure. USB 3.0 Type-C output operates as a UVC 1.1–1.5 source up to 4K 30fps over MJPEG or H.264 AVC/SVC, compatible with Microsoft Teams, Zoom, and enterprise video conferencing systems. NDI|HX3 is native over the RJ-45 Gigabit Ethernet port, and the camera also supports RTSP, RTMP/RTMPS, SRT, ONVIF, and Multicast for integration with virtually any IP AV infrastructure. PoE+ (802.3at) powers the unit over a single Ethernet cable, making ceiling and wall mounts practical without dedicated power circuits. Up to 255 presets are stored at 0.1° accuracy. Built-in Hive-Linked functionality pairs to PTZOptics Hive Studio for cloud-based remote control, configuration, and monitoring from any browser with no additional hardware. A built-in microphone and 3.5mm audio I/O support local audio integration. The camera is NDAA 2019 Section 889 compliant and covered by a 5-year limited parts and labor warranty.

Key Features

• 4K 60fps HDMI Output — 3840x2160p over HDMI 2.0 for direct integration with 4K production switchers and broadcast monitors.
• 12x Optical Zoom, 72.5° Wide FOV — Wide field of view at 12x suits conference tables, training rooms, and podium coverage from standard mounting distances.
• NDI|HX3 Native — Network video transport with low latency over Gigabit Ethernet, no additional encoder required.
• 3G-SDI Output — BNC connector (SMPTE 424M) for direct routing to broadcast infrastructure at 1080p 60fps.
• USB 3.0 UVC (Type-C) — Plug-and-play compatibility with Microsoft Teams, Zoom, and UVC-based lecture capture systems up to 4K 30fps.
• PoE+ Powered — Single Ethernet cable powers and connects the camera, reducing installation complexity at ceiling or wall-mount positions.
• 255 Presets — Precise zoom and image setting recall at 0.1° accuracy for repeatable framing across productions.
• Hive-Linked — Cloud-based remote management via PTZOptics Hive Studio; no additional hardware required.
• NDAA 2019 Section 889 Compliant — Qualified for government and education use.
• 5-Year Warranty — US-based support team with 5-year limited parts and labor coverage.

Typical Applications

• Conference room
• Training room
• Broadcast studio
• House of worship
• Government space
• Auditorium
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: When should I choose the 12x zoom over the 20x zoom model?

A: The 12x model offers a wider 72.5° horizontal field of view at wide angle, making it better suited for conference rooms, training rooms, and spaces where the camera is close to the subject. The 20x model provides a narrower starting FOV (60.7°) but greater reach at full zoom, making it preferable for large auditoriums or situations where the camera is mounted far from the subject.

Q: Does the Studio 4K 12x work as a USB camera for Microsoft Teams or Zoom?

A: Yes. The USB 3.0 Type-C output is UVC 1.1–1.5 compliant and works as a plug-and-play camera source in Microsoft Teams, Zoom, Google Meet, Cisco Webex, and any platform that accepts a standard USB webcam input.

Q: Can this camera output 4K and 1080p simultaneously to multiple destinations?

A: The HDMI output supports 4K at up to 60fps. The SDI output is limited to 1080p. The USB output supports 4K at 30fps (MJPEG/H.264). NDI|HX3 and IP streaming operate concurrently with the hardware outputs. Multiple simultaneous output paths are supported.

Q: Is a Hive subscription required to use this camera?

A: No. The camera functions as a standalone unit using its hardware outputs and IP streaming without any subscription. Hive-Linked connectivity enables optional cloud management through a PTZOptics Hive Studio account when needed.

Q: How is the Studio 4K different from the Studio SE?

A: The Studio 4K outputs 4K at up to 60fps over HDMI 2.0 and requires PoE+ (802.3at). The Studio SE outputs 1080p over HDMI and can be powered by standard PoE (802.3af). The Studio 4K also includes a 3G-SDI output; the Studio SE does as well. Both share the same physical chassis and lens options.

Q: What control interfaces does the Studio 4K 12x support?

A: The camera is controlled via VISCA over IP, ONVIF, IR remote, and the PTZOptics web UI accessed through a browser. It integrates with the PTZOptics Camera Management Platform (CMP) for zoom-only auto-tracking. Full PTZOptics Hive Studio integration is available for cloud-based control.

Q: Is this camera suitable for government or federal facility installation?

A: Yes. The Studio 4K 12x is NDAA 2019 Section 889 compliant and does not contain components from any of the restricted manufacturers listed in the legislation, qualifying it for federal, state, and local government deployments.
