PTZOptics Producer 20x Move 4K PTZ Camera Bundle

Product Overview

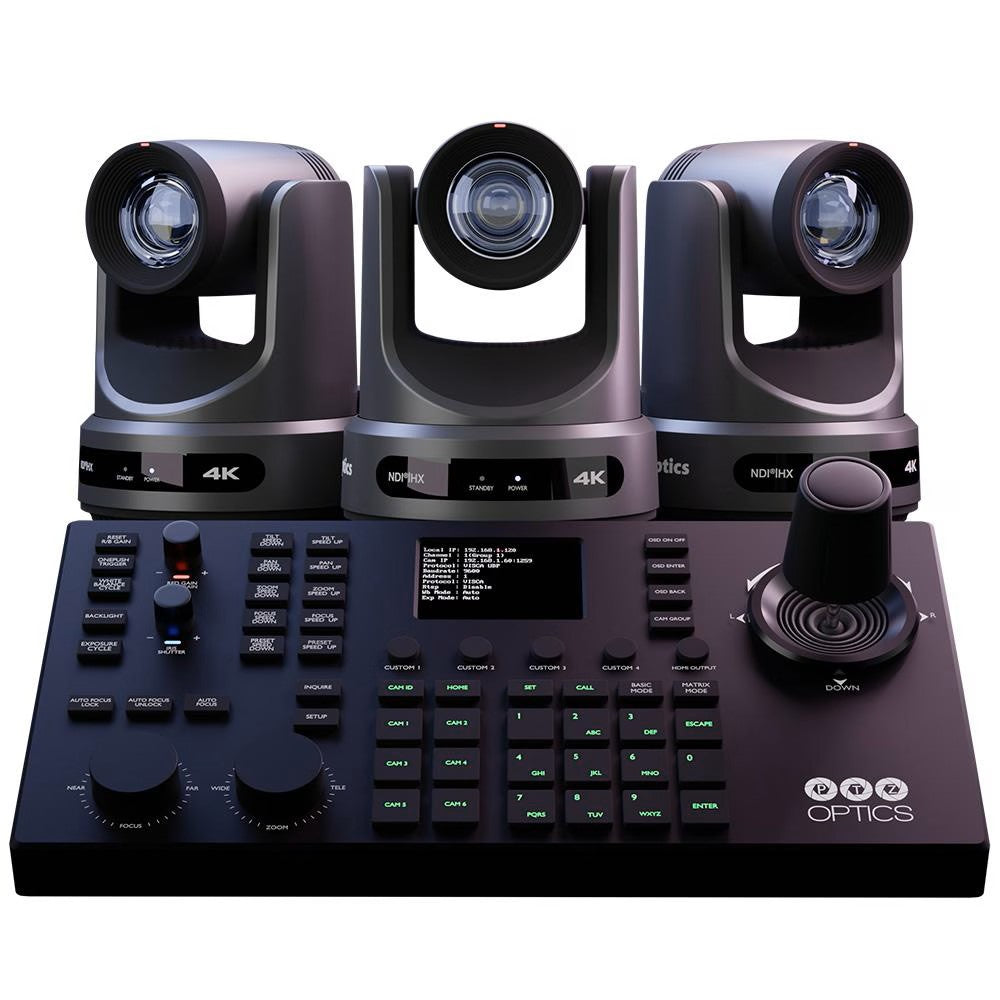

The PTZOptics Producer 20x Move 4K PTZ Camera Bundle is a complete professional production system combining the PTZOptics Move 4K 20x NDI|HX3 PTZ camera with the SuperJoy network joystick controller and essential accessories — everything required to deploy a broadcast-quality, 4K NDI PTZ camera system in a single purchase. Targeted at AV integrators, corporate AV teams, and house of worship production departments, this bundle at $7,923 delivers the full capability of the Move 4K platform — 4K@60fps HDMI 2.0, NDI|HX3, 3G-SDI, USB 3.0, and IP streaming — paired with the SuperJoy’s professional joystick control and HDMI preview output. For integrators who want a tested, pre-specified camera-and-controller pairing without sourcing components individually, the Producer bundle reduces procurement time and ensures compatibility.

Product Description

The PTZOptics Producer 20x Move 4K PTZ Camera Bundle (SKU: PT20X4K-PRODUCER-SJOY) centers on the PTZOptics Move 4K 20x Gen 3 camera — one of the most widely deployed NDI PTZ cameras in professional AV installations — combined with the PTZOptics SuperJoy joystick controller. The Move 4K 20x delivers 4K resolution at 60fps via HDMI 2.0, alongside simultaneous NDI|HX3 for video-over-IP, 3G-SDI for broadcast routing, USB 3.0 for direct UVC conferencing connections, and IP streaming via RTSP, RTMP, and SRT. The SuperJoy controller adds a layer of professional production capability: it features a precision 3-axis joystick, HDMI video output for a live camera preview at the operator position, backlit programmable buttons, and support for VISCA over IP and serial control of multiple cameras. PTZ control protocols on the camera include VISCA over IP, VISCA RS-232, and PELCO-D/P over RS-485, ensuring compatibility with Crestron, AMX, Q-SYS, Extron, and other control systems. PoE+ (802.3at) powers the camera over a single CAT cable, with 12V DC as an alternative. Auto-tracking is supported through PTZOptics Move AI software, enabling unattended presenter tracking for rooms that operate without a dedicated camera operator. The Producer bundle is the recommended starting point for integrators specifying a 4K NDI PTZ camera system for house of worship, corporate headquarters AV, higher education lecture capture, or broadcast studio environments.

Key Features

• Complete 4K PTZ Production System — Move 4K 20x camera, SuperJoy controller, and accessories in a single SKU for streamlined procurement.
• PTZOptics Move 4K 20x (Gen 3) — 4K@60fps PTZ camera with NDI|HX3, HDMI 2.0, 3G-SDI, USB 3.0, and simultaneous IP streaming (RTSP/RTMP/SRT).
• SuperJoy Controller — Professional network joystick with HDMI video preview output, backlit buttons, VISCA over IP and serial control, and multi-camera management.
• NDI|HX3 Video over IP — Low-latency NDI transport over gigabit Ethernet; compatible with vMix, OBS, Wirecast, and NewTek TriCaster.
• 4K 60fps HDMI 2.0 — Full 4K resolution output for local display, recording, or downstream encoding.
• 3G-SDI Output — Broadcast-standard SDI connection for integration with video routing and production switchers.
• PoE+ Power (802.3at) — Single-cable installation for the camera over standard CAT6 network infrastructure.
• Multi-Protocol PTZ Control — VISCA over IP, VISCA RS-232, PELCO-D, and PELCO-P RS-485 for compatibility with any professional control system.
• Auto-Tracking Ready — Compatible with PTZOptics Move AI software for hands-free presenter tracking.

Typical Applications

• House of worship
• Boardroom
• Conference room
• Auditorium
• Broadcast studio
• Training room
• Government space
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: What is the advantage of the SuperJoy over the Joystick Gen 4?

A: The SuperJoy includes an HDMI video output that lets the operator view a live preview of the camera feed directly at the controller position — without a separate monitor connection. It also features backlit programmable buttons and a form factor designed for professional production environments. The Joystick Gen 4 is a solid alternative for budget-conscious deployments or installations where a preview at the controller is not needed.

Q: Does this bundle include everything needed for a complete installation?

A: The bundle includes the camera, SuperJoy controller, and accessories. You will need a PoE+ switch or 12V DC power supply for the camera, CAT6 cabling, and a network switch or router for IP connectivity. For NDI production, a gigabit network is required.

Q: Is NDI|HX3 compatible with my existing production software?

A: NDI|HX3 is compatible with vMix, OBS (with NDI plugin), Wirecast, NewTek TriCaster, Vizrt, and most other professional production platforms. Check your software’s NDI version requirements — NDI|HX3 requires NDI 5 or later on the receiving end.

Q: Can the SuperJoy control multiple Move 4K cameras?

A: Yes. The SuperJoy supports multi-camera addressing over VISCA over IP, allowing a single operator to control and recall presets on multiple cameras from one controller.

Q: Is auto-tracking included or does it require additional software?

A: Auto-tracking requires PTZOptics Move AI software, which runs on a networked computer. The camera hardware supports it, but the software must be separately configured. Contact Creation Networks or PTZOptics for current software licensing details.

Q: Can I add more cameras to this system later?

A: Yes. The SuperJoy supports multi-camera control, and additional PTZOptics Move 4K or Move SE cameras can be added to the same network and addressed from the same controller. The system scales cleanly as production requirements grow.

Q: What is the warranty on this bundle?

A: PTZOptics provides manufacturer warranty coverage on both the camera and the SuperJoy controller. Creation Networks offers pre-sales technical support to help with system design and specification. Contact us for specific warranty terms and post-sales support options.
