PTZOptics 3G-SDI Plenum Video Cable (White)
Product Overview

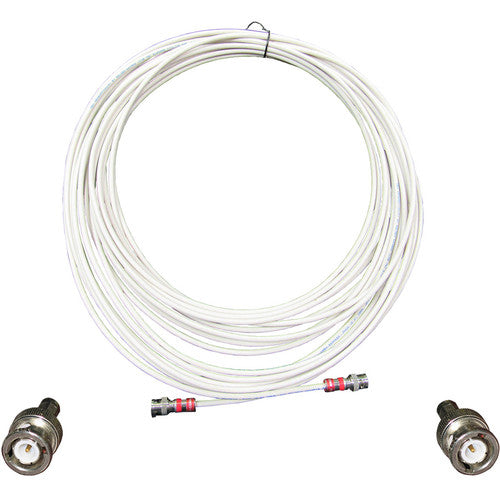

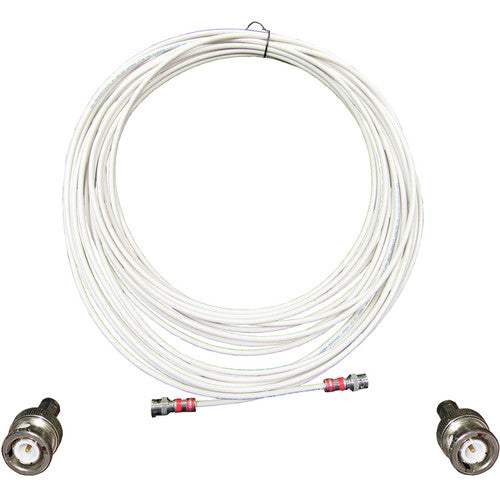

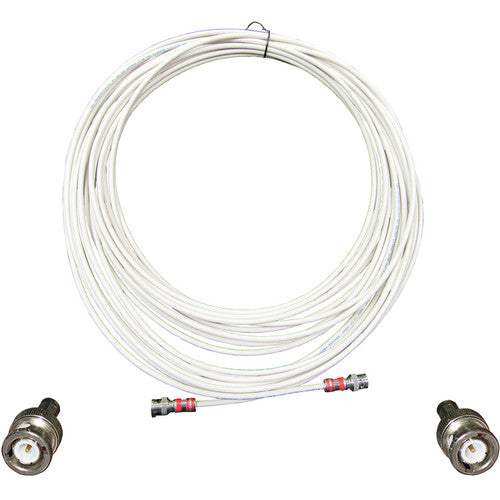

The PTZOptics 3G-SDI Plenum Video Cable (HDSDI-25) is a 25-foot, plenum-rated HD-SDI cable built for broadcasting video signals from PTZ cameras to switchers, frame grabbers, and video inputs in permanent AV installations. Constructed with Belden 1695A premium coaxial cable, it supports 3G-SDI signal transmission up to the 3 Gb/s standard and meets plenum (CMP) rating requirements for in-wall and above-ceiling routing in commercial buildings. The cable terminates in BNC connectors on both ends and is finished in white for clean installation aesthetics.
Product Description
In commercial AV installations, the cable run between a wall-mounted or ceiling-mounted PTZ camera and the production rack or switcher frequently passes through plenum air-handling spaces. The HDSDI-25 satisfies the CMP plenum rating requirement for these environments, allowing integrators to route SDI video without the separate conduit required for non-plenum cable in many jurisdictions and building codes.
The Belden 1695A construction is a widely specified coaxial cable for 3G-SDI broadcast applications, providing consistent impedance and low attenuation at HD-SDI and 3G-SDI frequencies. At 25 feet, this cable length is appropriate for short runs from a camera mount to an in-wall junction or to a nearby distribution amplifier or switcher. PTZOptics SDI cameras including the Move SE and legacy SDI-equipped models output 3G-SDI video, making this cable a direct companion accessory for SDI-based PTZ camera installations.
The male-to-male BNC termination is standard for professional video equipment. The white jacket coordinates with PTZOptics white wall and ceiling mounts, maintaining a consistent visual finish across the camera installation. For integrators who need longer runs, PTZOptics also offers this cable in 50-foot, 75-foot, and 100-foot versions under related SKUs.
Key Features
- Plenum-Rated (CMP) — Meets plenum cable requirements for routing through air-handling spaces in commercial buildings without additional conduit.
- Belden 1695A Construction — Premium coaxial cable specified for 3G-SDI broadcast video installations.
- 3G-SDI Rated — Supports HD-SDI and 3G-SDI video signals up to 2.97 Gb/s payload data rate.
- Male-to-Male BNC Connectors — Standard professional video termination compatible with all 3G-SDI and HD-SDI equipment.
- 25-Foot Length — Appropriate for camera-to-switcher or camera-to-junction runs in conference rooms and similar spaces.
- White Jacket — Coordinates with PTZOptics white camera mounts for a consistent installation appearance.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | HDSDI-25 |
| UPC | 53176516400 |
| Cable Length | 25 feet (7.6 m) |
| Signal Standard | 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M) |
| Cable Construction | Belden 1695A coaxial |
| Plenum Rating | CMP (plenum-rated) |
| Connector Type | BNC male to BNC male |
| Jacket Color | White |
| Compatible Equipment | 3G-SDI and HD-SDI cameras, switchers, frame grabbers, distribution amplifiers |
