Premier Mounts PDS-PLUS-W Low-Profile Universal Projector Mount (White)
Premier Mounts PDS-PLUS-W Low-Profile Universal Projector Mount (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Premier Mounts PDS-PLUS-W Low-Profile Universal Projector Mount (Wh...

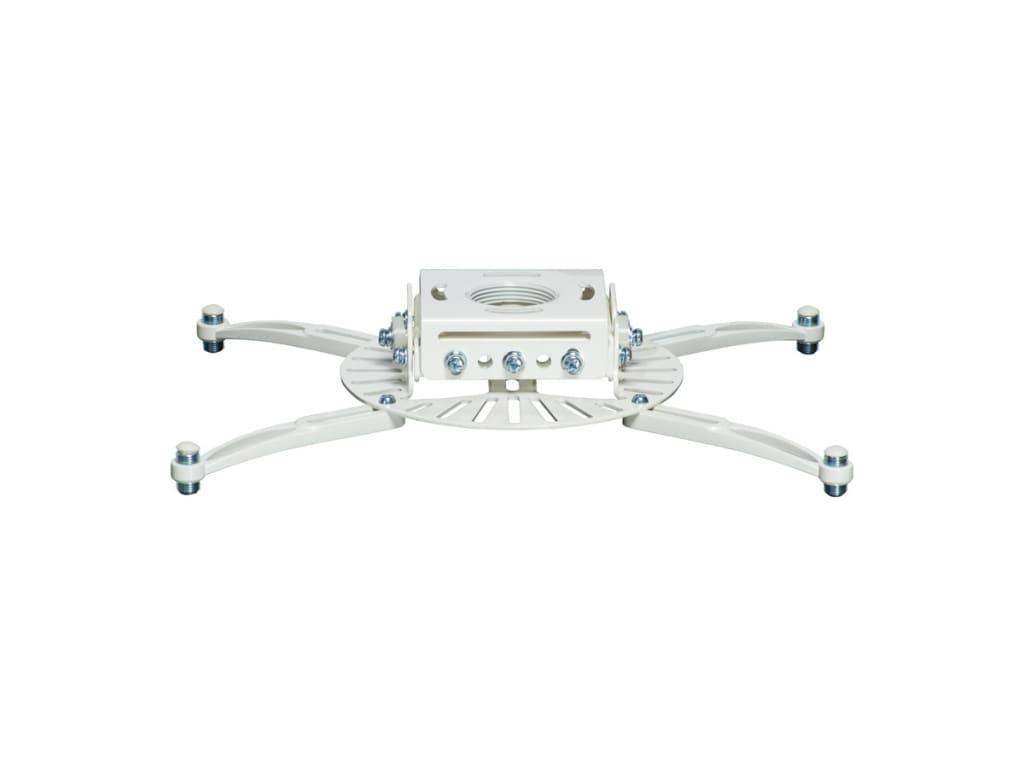

The PDS-PLUS-W is a low-profile universal projector mount that can be mounted directly to the ceiling or in use with a drop pipe. This mount truly is universal because it features a slotted mounting base with six interchangeable legs (four long and two short) to reach both shorter and wider mounting points. Most standard sized projectors will work well with the PDS-PLUS-W.
Installation of the PDS-PLUS-W is easy because it mates to standard 1.5 in. NPT pipe, or directly to structural surfaces. In addition, it is very lightweight, weighing under 5lbs, in order to make ceiling installation a little easier on installers.
Being one of the most popular mounts for education applications, the PDS-PLUS-W is OSHPD approved, UL listed and includes Lock-It security hardware so you have piece of mind when installing in classrooms or high traffic areas.

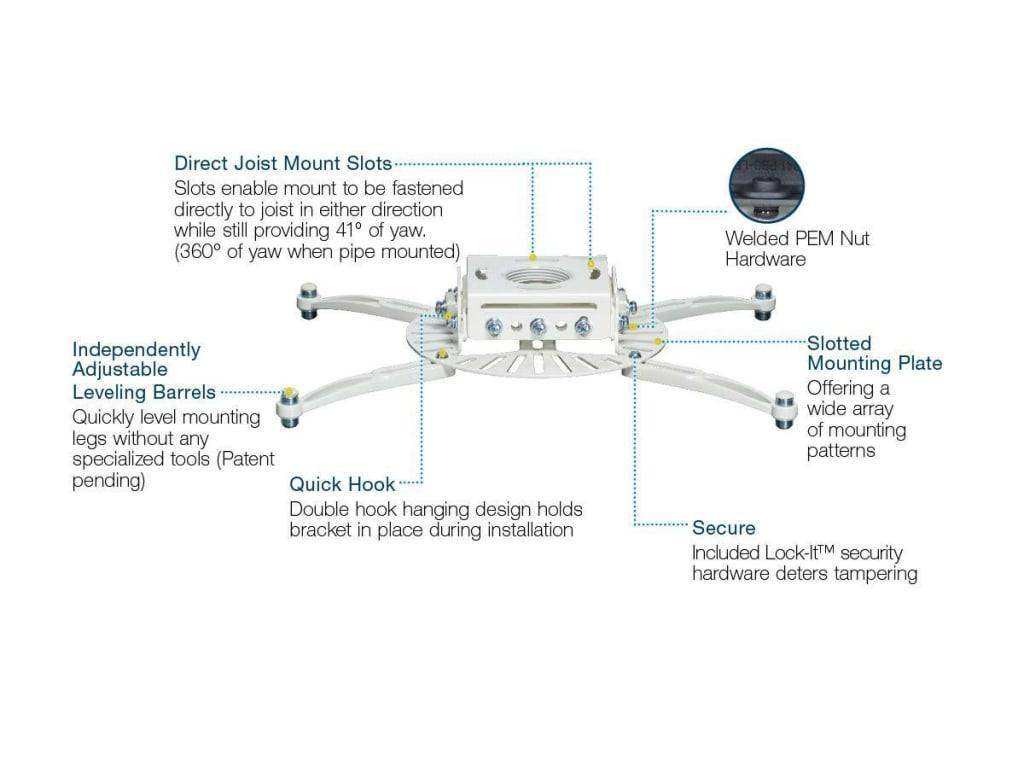

Features
- Mates to standard 1.5" NPT or directly to structural surfaces
- Its unique design allows it to work with many of our adapters and accessories
- Cables can be routed inside pipe for a neat appearance
- Each PDS mount includes Lock-It Security Hardware
- Heavy-duty steel construction
- Pitch: +/-16.5°
- Roll: +/-7.5°
- Yaw: +/-41°
- 75lb. weight capacity
- Premier Mounts' limited Lifetime Guarantee
- OSHPD & DSA approved (OPA-1787-07)
Specifications
Product Specifications
Weight
4.9 lbs.
Width
11.8 inches
Height
6.5 inches
Depth
11.8 inches
