Premier Mounts ECM-3763D Back-to-Back Ceiling Mount Assembly
Premier Mounts ECM-3763D Back-to-Back Ceiling Mount Assembly is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Premier Mounts ECM-3763D Back-to-Back Ceiling Mount Assembly

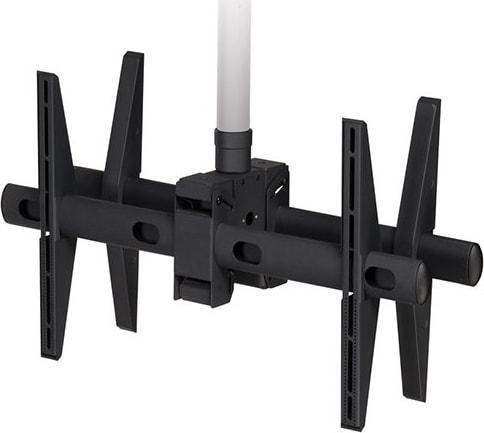

The ECM-3763D is a back-to-back ceiling mount made to hold dual flat panel displays that each weigh up to 175lb. This combines for a total weight capacity of 350lbs. Using a 2" NPT pipe (not included) or a height-adjustable pipe adapter the ECM-3763D can sit at a variety of lengths depending on the application.
Overhead displays should have a clean and organized look, that's why we engineered the ECM-3763D to have integrated cable management channels so avoid loose wires and power cords. In addition, the center support features mounting points to receive J-Box for power or A/V (not included).
The speed of installation is important, especially when working from a ladder or scissor lift, that's why the ECM-3763D does not have adapters and is ready to mount straight out of the box. In addition, some applications will require mini PC or digital media players to run content, so we have optional brackets to support these as well.
- A ceiling plate and a 2” extension pipe are required and must be ordered separately.
- This configuration requires the ECM-S and ECM-S2 assemblies
- Brackets available for media players
Features
- Integrated cable management
- Ready to install out of the box
- Post-installation adjustment
- Dynamic viewing with 360° swivel and 15° of tilt
- Ultra-thin design keeps the center of gravity close to the flat panels for better balance
- Supports two flat-panels back-to-back
- Center support features mounting points to receive J-Box for power or A/V (Not Included)
Specifications
Product Specifications
Weight
53 lbs. | 24.1kg
Width
37.2" | 945mm
Height
21.32" | 541mm
Depth
10.19" | 259mm
Weight Capacity
350lbs. | 159.1kg
Compatibility
VESA Patterns: 200mm x 200mm - 875mm - 505mm
