Sonance PPX-3.5x16-2-STR – Straight Toekick Connector and Grille
Product Overview

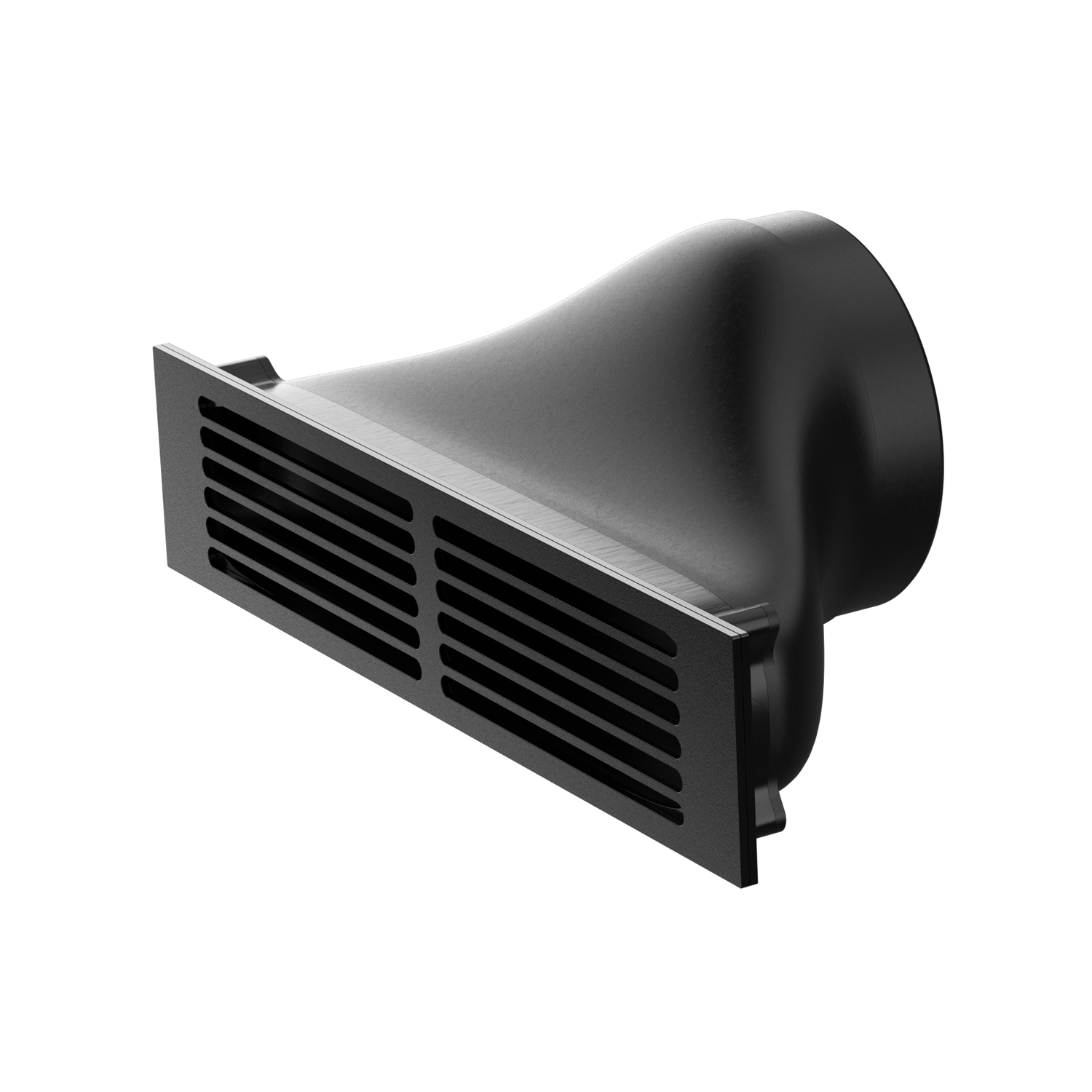

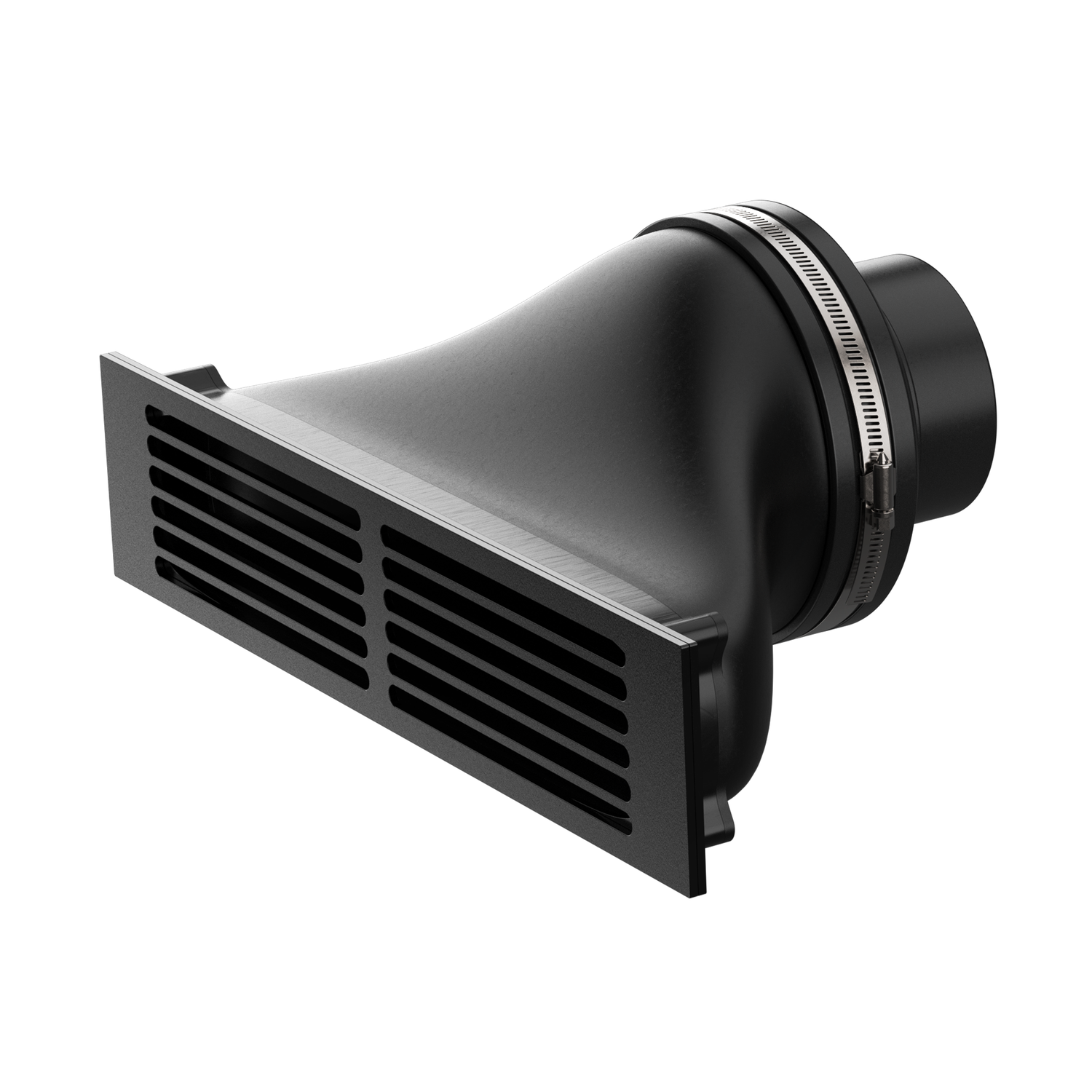

The Sonance PPX-3.5x16-2-STR is a straight toekick connector and grille for the PowerPipe X hidden bass system, providing a direct, unobstructed path for a PPX subwoofer's port through cabinetry toe space. It is intended for integrators installing PowerPipe X subwoofers where a straight run through the toekick is possible. An integrated grille finishes the visible opening.
Product Description
Where the PPX-3.5x16-2-90 redirects a bass port around a corner, this straight version from the Sonance PowerPipe X accessory line keeps the airflow path direct for efficient bass delivery. It measures 16.0 inches wide by 3.5 inches high by 6.65 inches deep overall, with a 5.91-inch diameter port and a required cut-out of 14.45 inches wide by 3.31 inches high. It ships in a textured black finish with an integrated grille, keeping the cabinetry opening's visual presence to a minimum. This connector is well suited to millwork and built-in cabinetry projects where the PowerPipe X subwoofer sits directly behind the toekick.
Key Features
- Straight Port Configuration — Direct airflow path for efficient bass delivery.
- Integrated Grille — Minimal visual presence in cabinetry.
- Toekick-Ready Sizing — 3.5-inch height fits standard cabinet toekick spaces.
- Textured Black Finish — Designed for millwork and built-in integration.
Typical Applications
Used in residential and commercial cabinetry installations where a PowerPipe X subwoofer's port runs straight through a toekick without needing to change direction.
Technical Specifications
| Overall Dimensions (W x H x D) | 16.0" x 3.5" x 6.65" |
| Port Connection | 5.91" diameter x 6.65" depth |
| Required Cut-Out | 14.45" W x 3.31" H |
| Grille | Integrated grille included |
| Finish | Textured black |
