Sonance PPX-3.5x16-2-90 – 90-Degree Toekick Connector and Grille
Product Overview

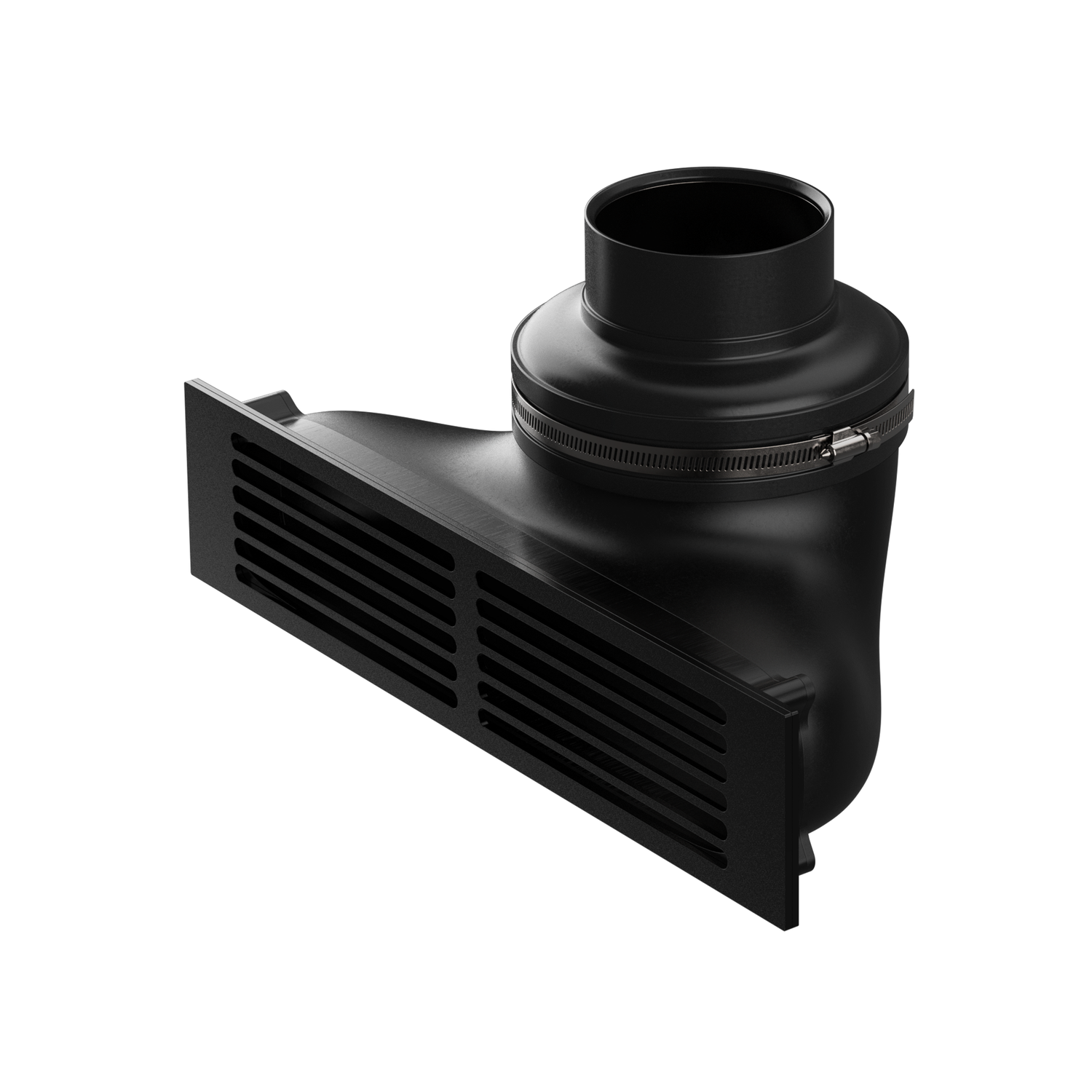

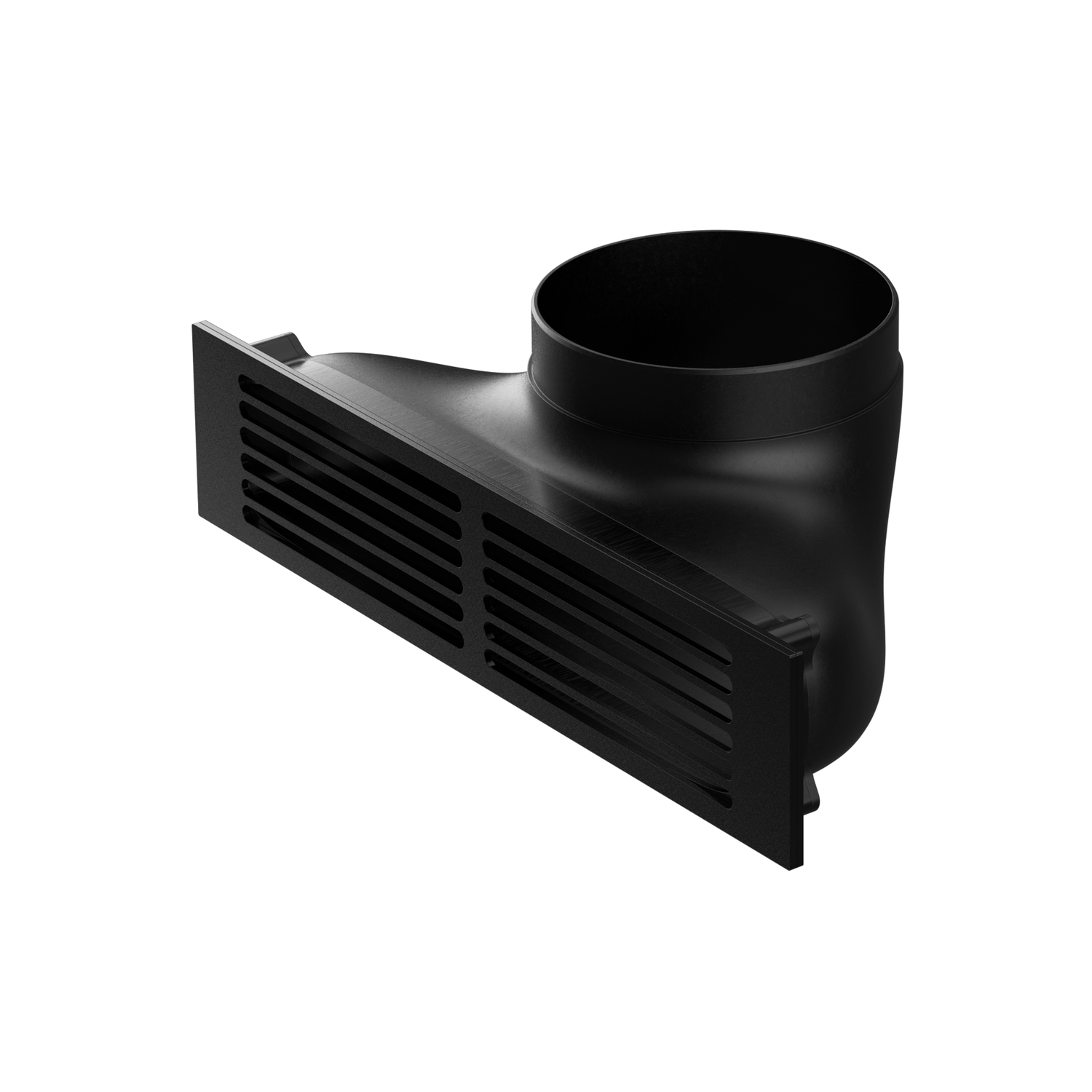

The Sonance PPX-3.5x16-2-90 is a 90-degree toekick connector and grille for the PowerPipe X hidden bass system, used to route a PPX subwoofer's port through cabinetry toe space at a right angle. It is intended for integrators installing PowerPipe X subwoofers in millwork or built-in cabinetry where the port must turn a corner. An integrated grille finishes the visible opening.
Product Description
Part of the Sonance PowerPipe X accessory line, the PPX-3.5x16-2-90 redirects a PPX subwoofer's bass port 90 degrees, which is useful when running a port through cabinetry toe kicks where a straight path is not available. The connector measures 16.0 inches wide by 3.5 inches high by 7.76 inches deep overall, with a 5.91-inch diameter port connection and a required cut-out of 14.45 inches wide by 3.31 inches high. It ships in a textured black finish and includes an integrated 3.5-by-16-inch grille, so no separate grille purchase is needed. This connector is designed specifically for concealed, low-profile bass integration in millwork and built-in cabinetry as part of a complete PowerPipe X installation.
Key Features
- 90-Degree Port Redirection — Routes PPX bass output around cabinetry and tight spaces.
- Integrated Grille — Includes a matching 3.5" x 16" grille for a finished look.
- Toekick-Ready Sizing — 3.5-inch height fits standard cabinet toekick spaces.
- Textured Black Finish — Low-profile appearance that blends into cabinetry.
Typical Applications
Used in residential and commercial cabinetry installations where a PowerPipe X subwoofer's port must be routed through a toekick at a right angle.
Technical Specifications
| Overall Dimensions (W x H x D) | 16.0" x 3.5" x 7.76" |
| Port Connection | 5.91" diameter x 7.76" depth |
| Required Cut-Out | 14.45" W x 3.31" H |
| Grille | Integrated 3.5" x 16" grille included |
| Finish | Textured black |
