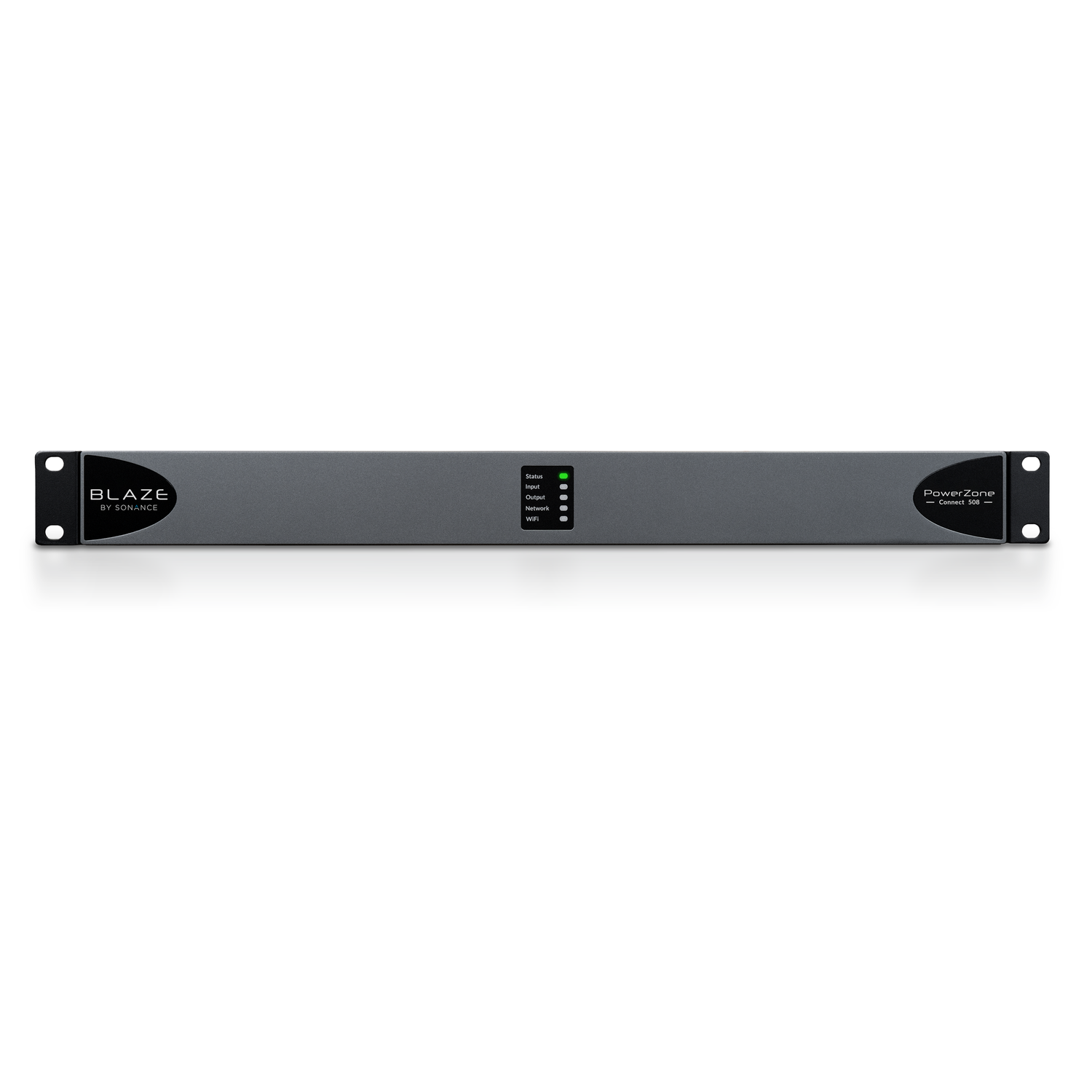

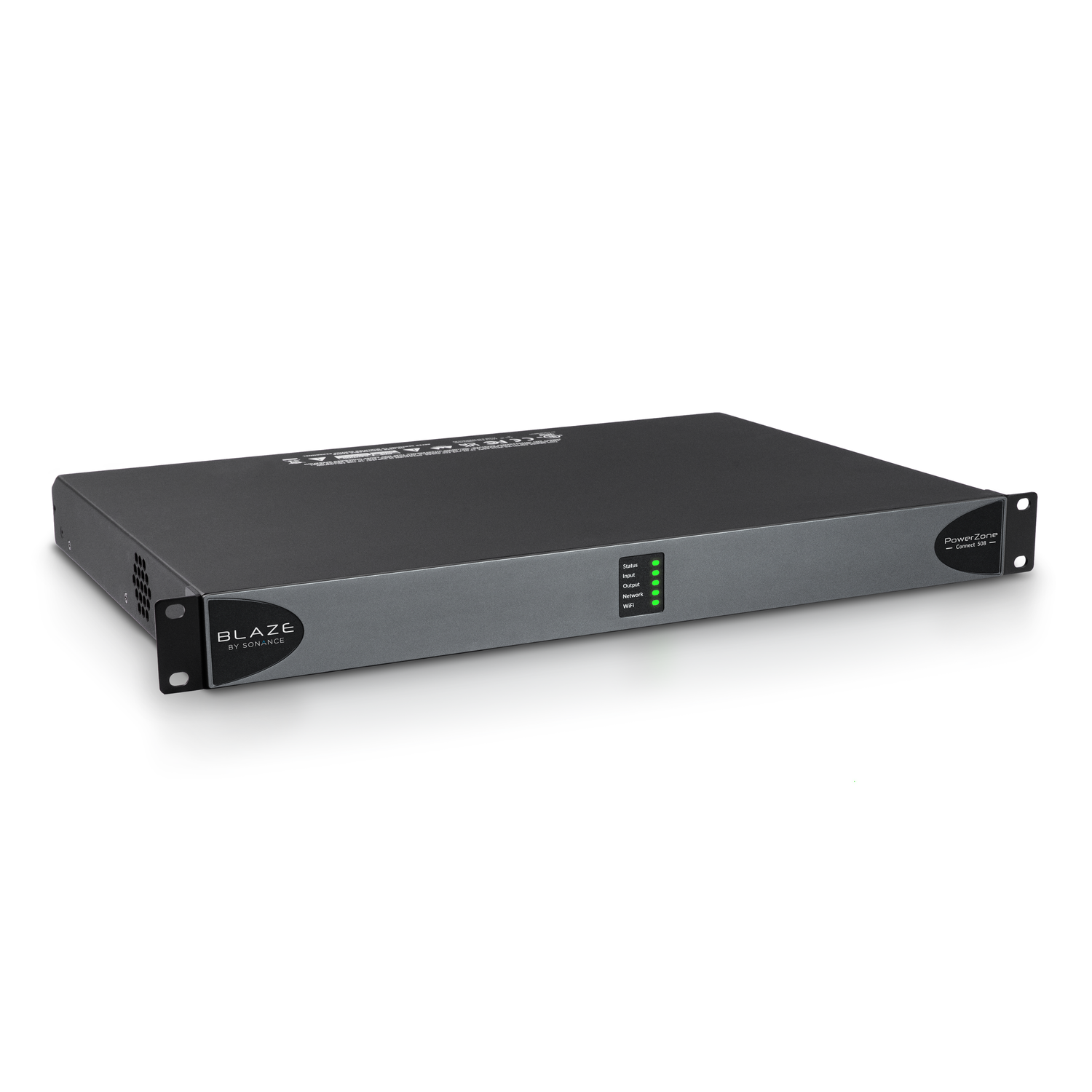

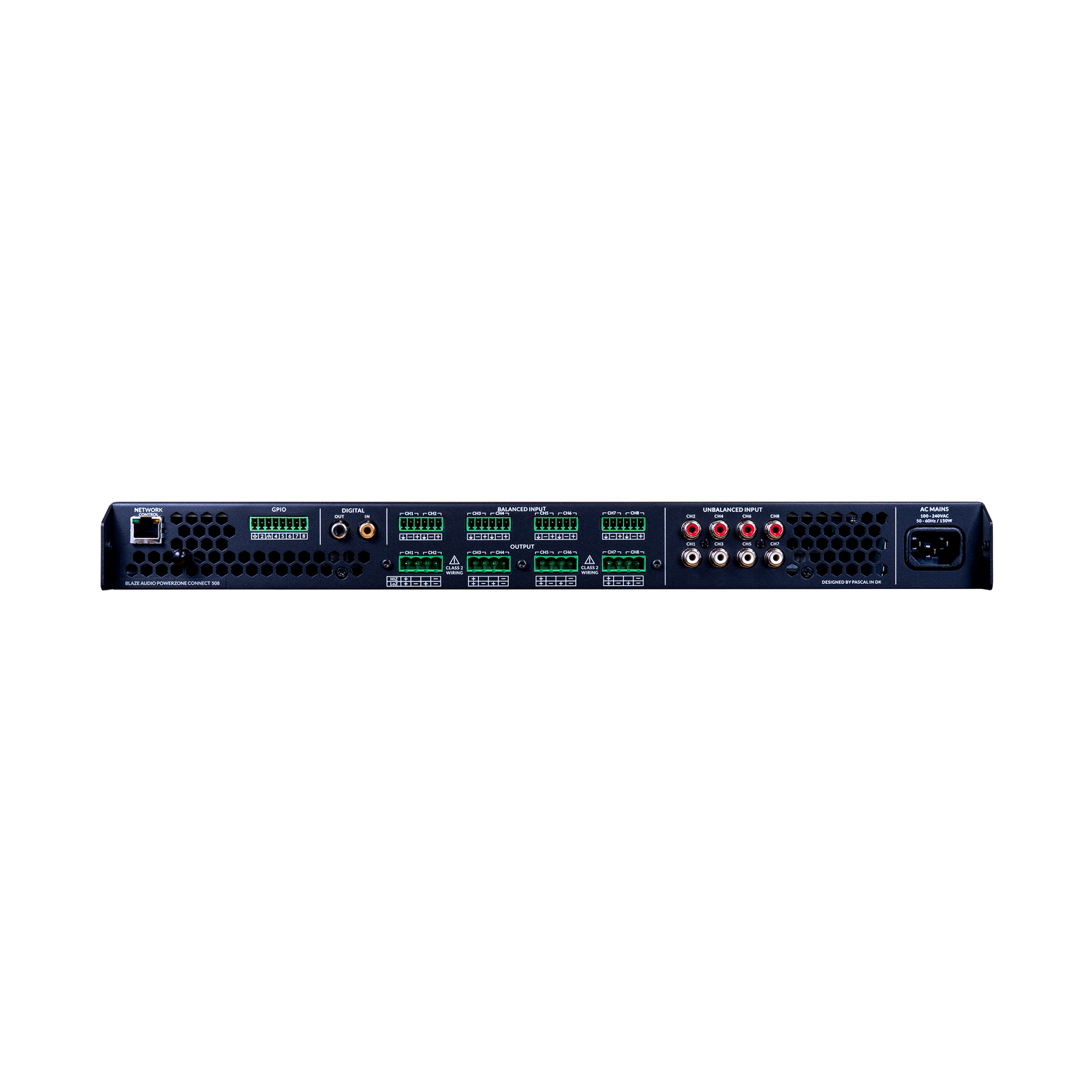

Sonance PowerZone Connect 508 – 8-Channel Compact 1RU DSP Amplifier
Product Overview
The Sonance PowerZone Connect 508 is a compact, 1RU, 8-channel amplifier designed for smaller commercial zones that still need built-in DSP and hybrid impedance flexibility. It gives integrators an entry point into the PowerZone Connect line for projects that do not require the higher power ceilings of the 1008 or 6008 models. Its 1RU footprint makes it a practical choice for equipment racks with limited depth or height.
Product Description
The PowerZone Connect 508 delivers up to 60W per channel across 8 channels at 4 or 8 ohms, or can be reconfigured for 4 channels at 125W in 70V/100V high-impedance mode, with power sharing capability up to 2x250W between channels. This Sonance amplifier includes full-matrix DSP through the built-in PowerZone Control web application, giving integrators the same configuration workflow used across the entire PowerZone Connect family. S/PDIF digital input and output support signal distribution in multi-amplifier racks, and configurable GPIO allows integration with wall controllers or automation systems. Pascal UMAC Class-D amplification keeps the 508 ErP and ENERGY STAR compliant while fitting into a single rack unit. It pairs naturally with in-ceiling speakers in smaller commercial spaces where a full 2U amplifier would be more capacity than the zone requires. A 5-year warranty covers the unit.
Key Features
- 8 Channels at 60W — Or 4 channels at 125W in 70V/100V mode.
- Power Sharing — Up to 2x250W shared between channels for larger loads.
- Full-Matrix DSP — Configured via the built-in PowerZone Control web app.
- Pascal UMAC Class-D Technology — Efficient, energy-compliant amplification.
- S/PDIF Digital I/O — Supports multi-amplifier signal distribution.
- Configurable GPIO — Wall controller and automation integration.
- Compact 1RU Chassis — Fits shallow or space-constrained racks.
- 5-Year Warranty — Commercial-grade coverage.
Typical Applications
- Small retail stores and boutiques
- Restaurants and cafes
- Small offices and meeting rooms
- Single-zone background music systems
Technical Specifications
| Channels | 8 (or 4 in Hi-Z mode) |
| Power per channel (Lo-Z, 4Ω/8Ω) | 60W |
| Power per channel (Hi-Z, 70V/100V) | 125W (4 channels) |
| Power sharing | Up to 2x250W |
| DSP | Full-matrix DSP via PowerZone Control web app |
| Digital I/O | S/PDIF input/output |
| Control | Configurable GPIO |
| Dimensions | 17.3" x 1.7" x 12.6" |
| Weight | 7.7 lbs |
| Rack size | 1RU |
Frequently Asked Questions
How many channels does the PowerZone Connect 508 have?
It has 8 channels at 60W in low-impedance mode, or 4 channels at 125W in 70V/100V mode.
What is power sharing on this amplifier?
Power sharing allows up to 2x250W to be allocated between channels for zones needing more output.
Does the 508 support Dante networking?
No, the 508 uses S/PDIF digital input and output rather than Dante.
How much rack space does it need?
It occupies a single rack unit (1RU) and weighs 7.7 lbs.
How is DSP configured?
Through the built-in PowerZone Control web application.
What warranty is included?
The PowerZone Connect 508 includes a 5-year warranty.
