Sonance PPX8 – 8-Inch PowerPipe X Hidden Bass Subwoofer
Product Overview

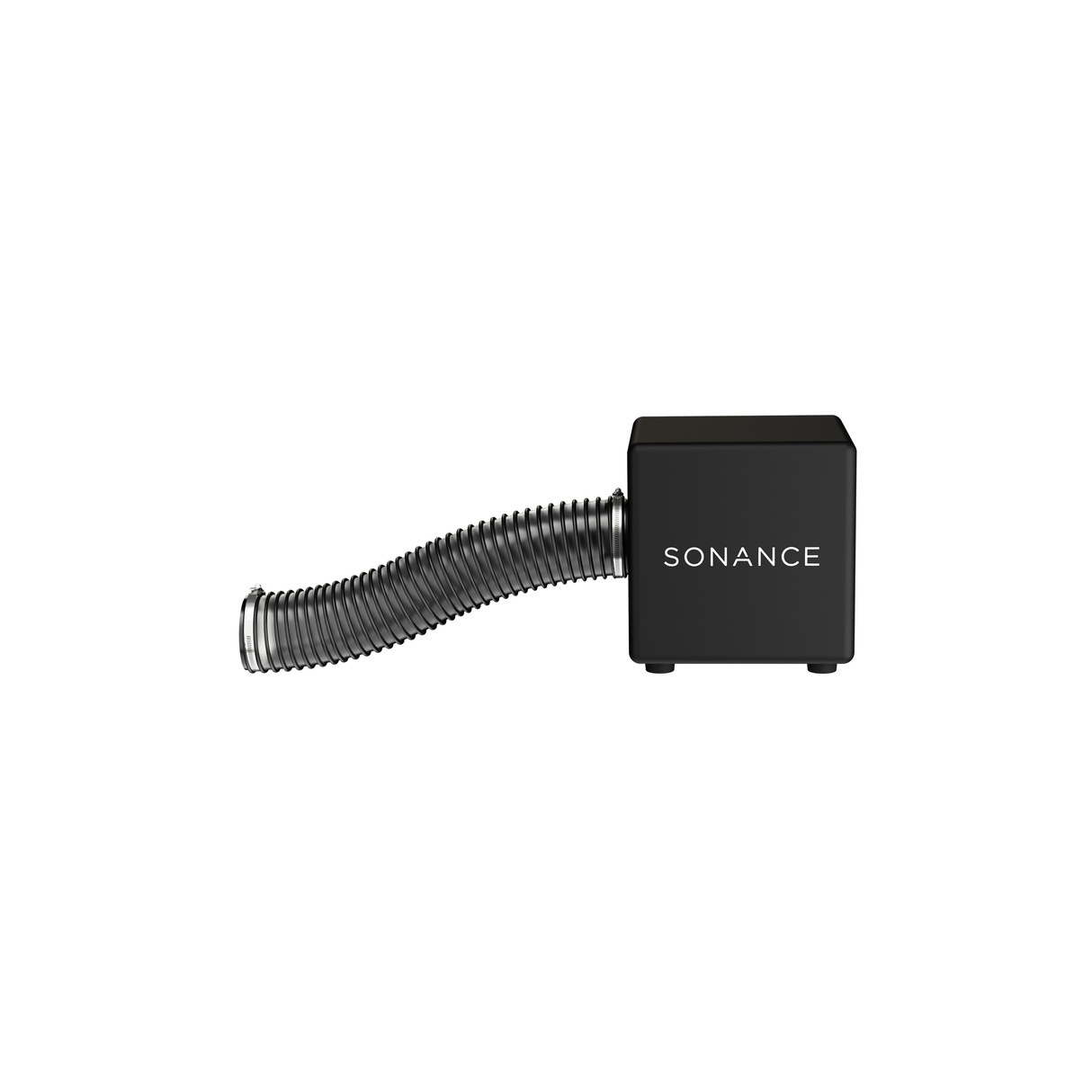

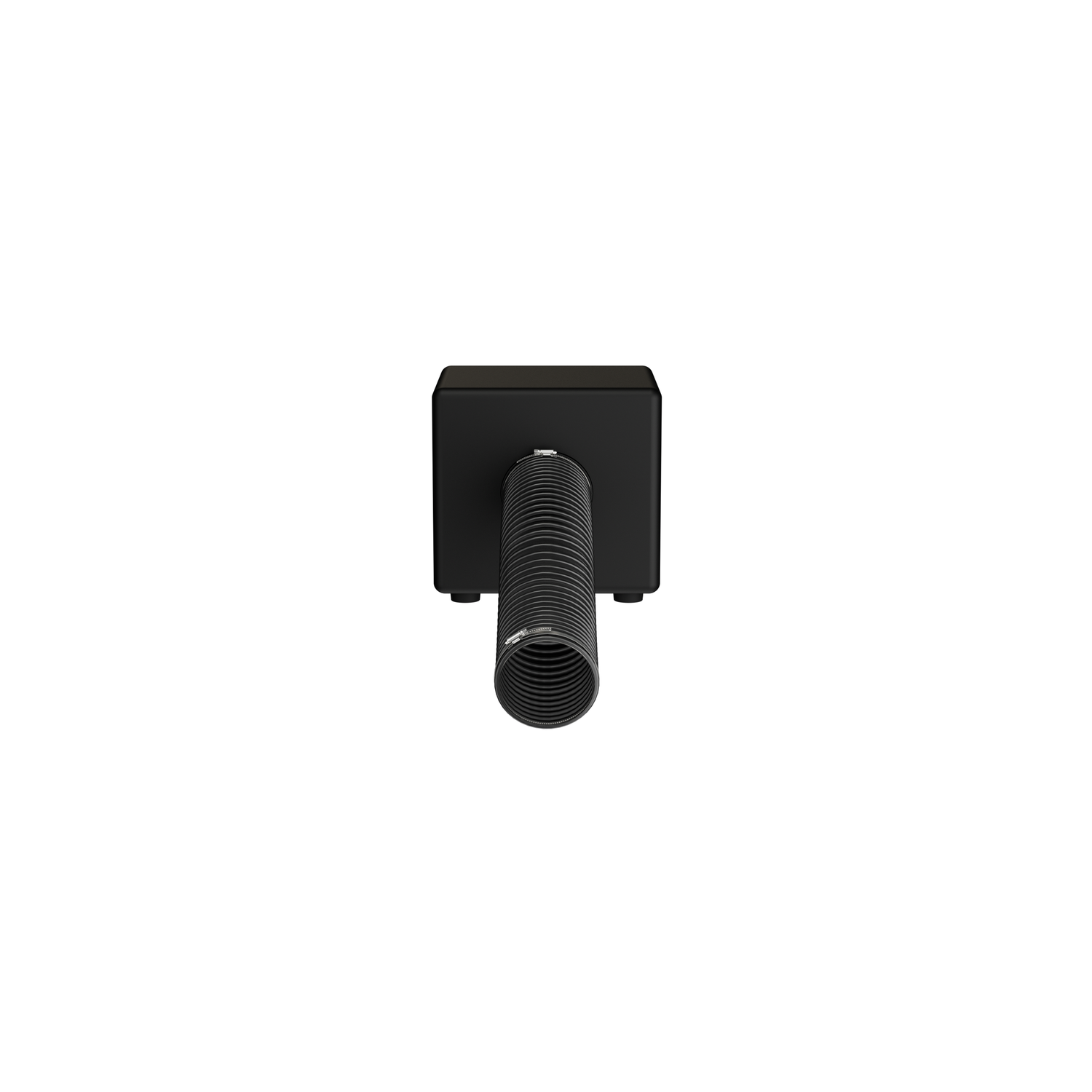

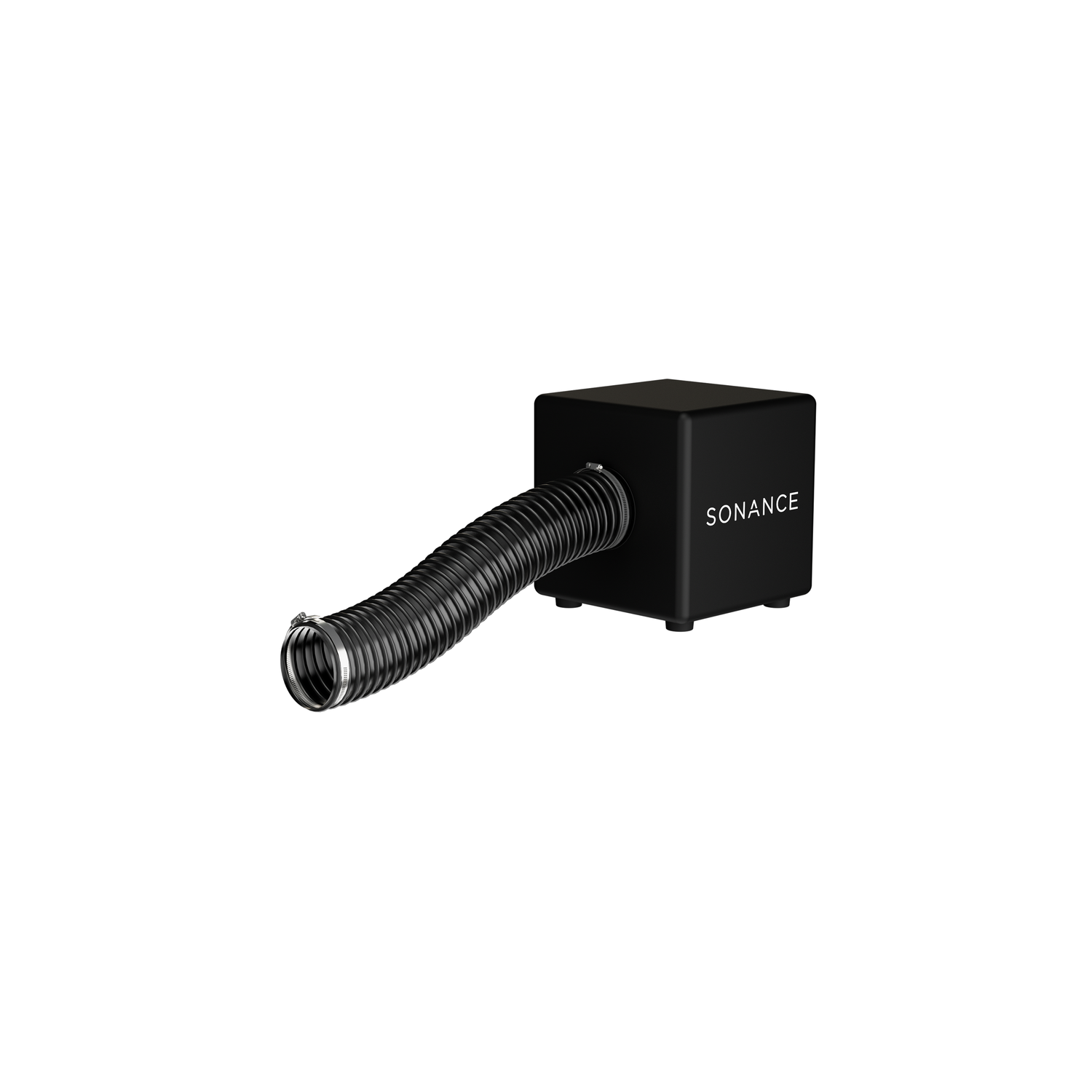

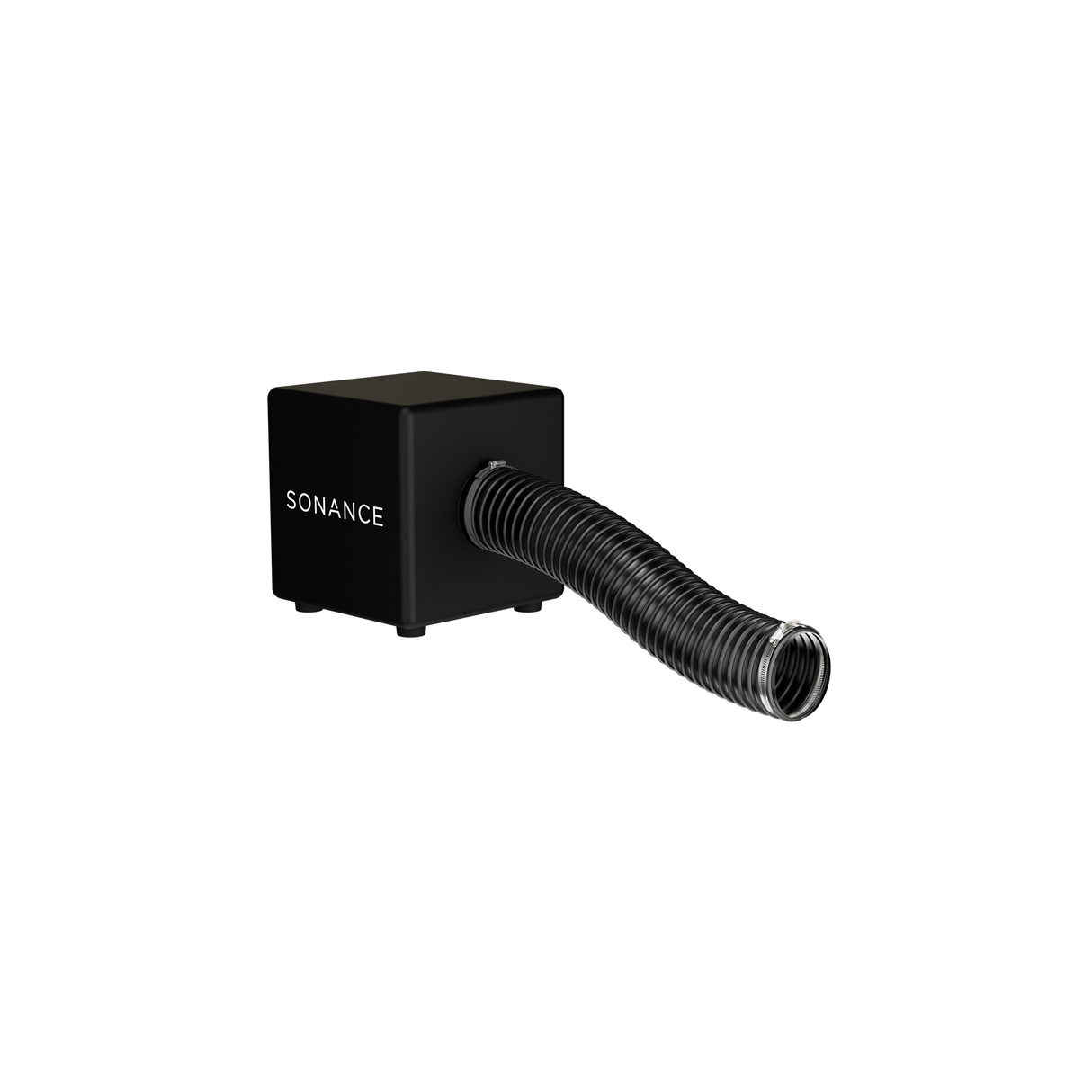

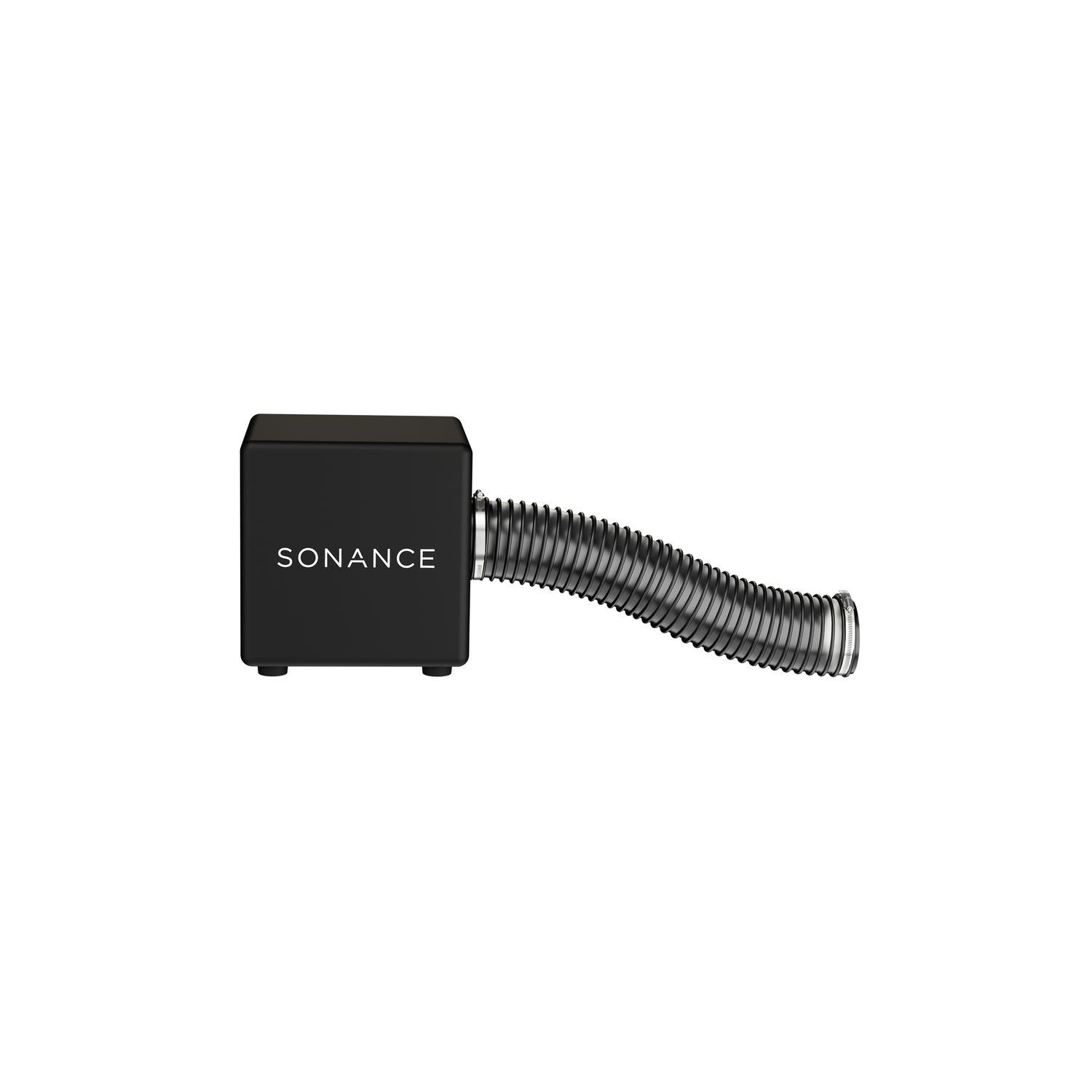

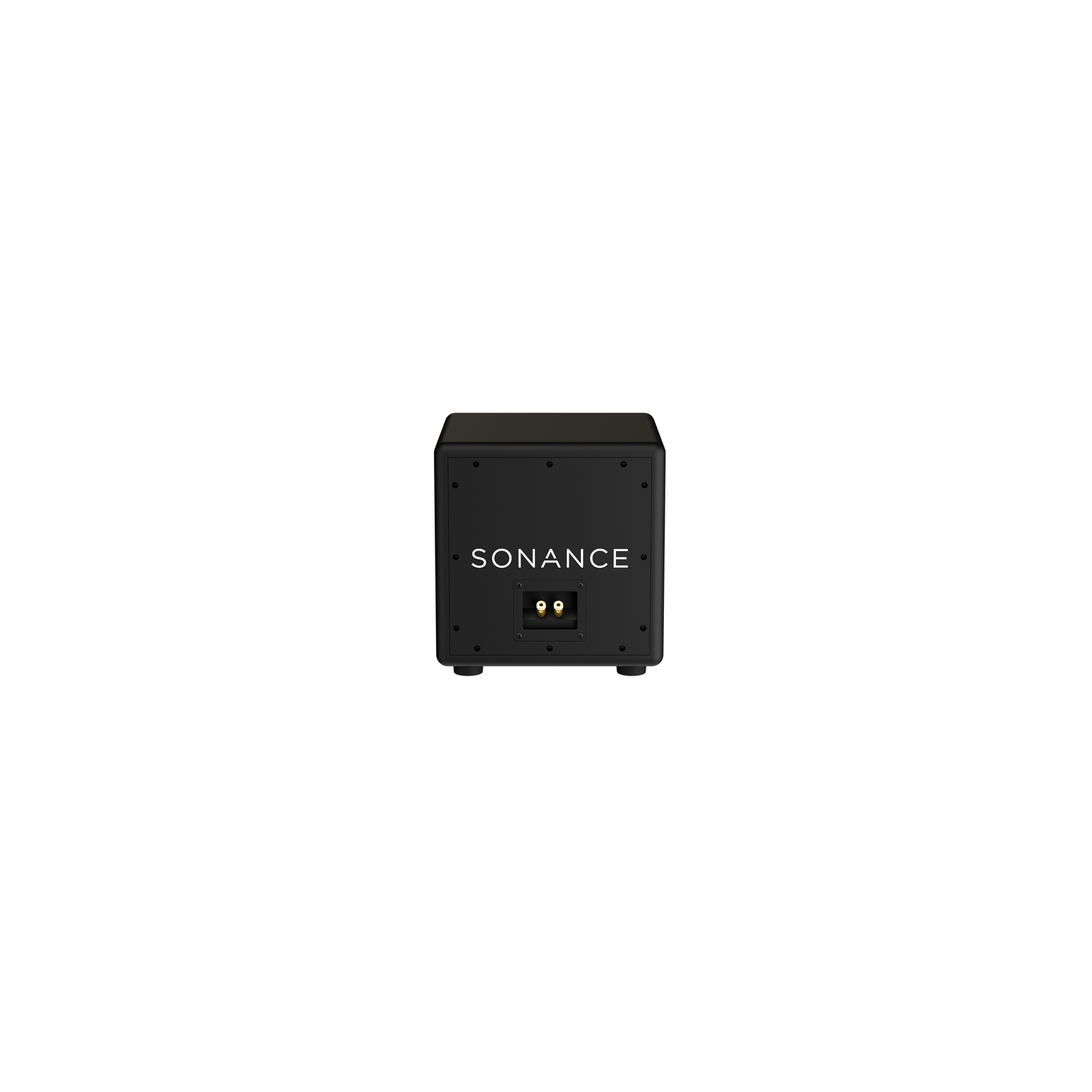

The Sonance PPX8 is an 8-inch subwoofer from the PowerPipe X Series, designed to hide bass performance inside a ceiling, wall, or cabinetry cavity rather than a visible enclosure. It targets integrators building distributed audio systems in retail, hospitality, and residential spaces where a concealed subwoofer is required. A ported bandpass design and high-excursion aluminum cone deliver low-frequency output from a compact footprint.
Product Description
The PPX8 is the smallest model in the Sonance PowerPipe X Series, built around an 8-inch anodized aluminum cone woofer with a rubber surround for high-excursion output. Its ported bandpass enclosure is rated 44Hz to 130Hz (±3dB) at 91dB sensitivity, with a recommended power handling of 300 watts at 4 ohms nominal impedance. The MDF cabinet, finished in textured black, measures 11.81 inches wide by 11.81 inches high by 11.5 inches deep and weighs 30.56 pounds, with an internal tube 4.02 inches in diameter and 21.65 inches long that shapes the bandpass response. Because the PPX8 is engineered to disappear into ceilings, walls, or cabinetry, it pairs with a range of PPX toekick connectors and XPC-style grille adapters, including the 4-inch adapter designed specifically for this model. Integrators can browse related hidden bass subwoofer options to compare PowerPipe X models by size and power handling. The PPX8 is intended for distributed audio applications where visible subwoofer cabinets are not an option.
Key Features
- 8-Inch High-Excursion Woofer — Anodized aluminum cone with rubber surround for low-frequency output.
- Ported Bandpass Design — Delivers efficient bass from a compact enclosure.
- Compact Footprint — 11.81" x 11.81" x 11.5" cabinet fits tight architectural spaces.
- 300-Watt Power Handling — Rated for 300 watts at 4 ohms nominal impedance.
- Concealed Installation — Engineered to integrate into ceilings, walls, or cabinetry.
- Compatible Grille Adapters — Works with PPX 4-inch XPC-style grille adapters and toekick connectors.
Typical Applications
The PPX8 is suited to distributed audio systems in retail spaces, restaurants, boardrooms, and residential rooms where a concealed subwoofer is preferred over a visible cabinet.
- Retail and restaurant sound systems
- Boardrooms and conference spaces
- Residential media rooms and cabinetry integration
Technical Specifications
| Driver Size | 8" (205mm) anodized aluminum cone, rubber surround |
| Power Handling | 300 watts recommended |
| Impedance | 4 ohms nominal |
| Frequency Response | 44Hz - 130Hz (±3dB) |
| Sensitivity | 91dB SPL |
| Dimensions (W x H x D) | 11.81" x 11.81" x 11.5" (without feet) |
| Weight | 30.56 lbs |
| Enclosure | MDF, textured black finish |
Frequently Asked Questions
What is the frequency response of the PPX8?
The PPX8 is rated 44Hz to 130Hz (±3dB).
What amplifier power does the PPX8 need?
Sonance recommends up to 300 watts into the PPX8's 4-ohm nominal impedance.
How is the PPX8 concealed during installation?
It is designed to mount inside ceilings, walls, or cabinetry, and pairs with PPX grille adapters and toekick connectors for a hidden finish.
What is the cabinet made of?
The enclosure is MDF construction finished in textured black.
How much does the PPX8 weigh?
The PPX8 weighs 30.56 pounds.
Which grille adapters are compatible with the PPX8?
Sonance offers a 4-inch XPC-style grille adapter designed specifically for the PPX8 model.
