Sonance PPX10 – 10-Inch PowerPipe X Hidden Bass Subwoofer
Product Overview

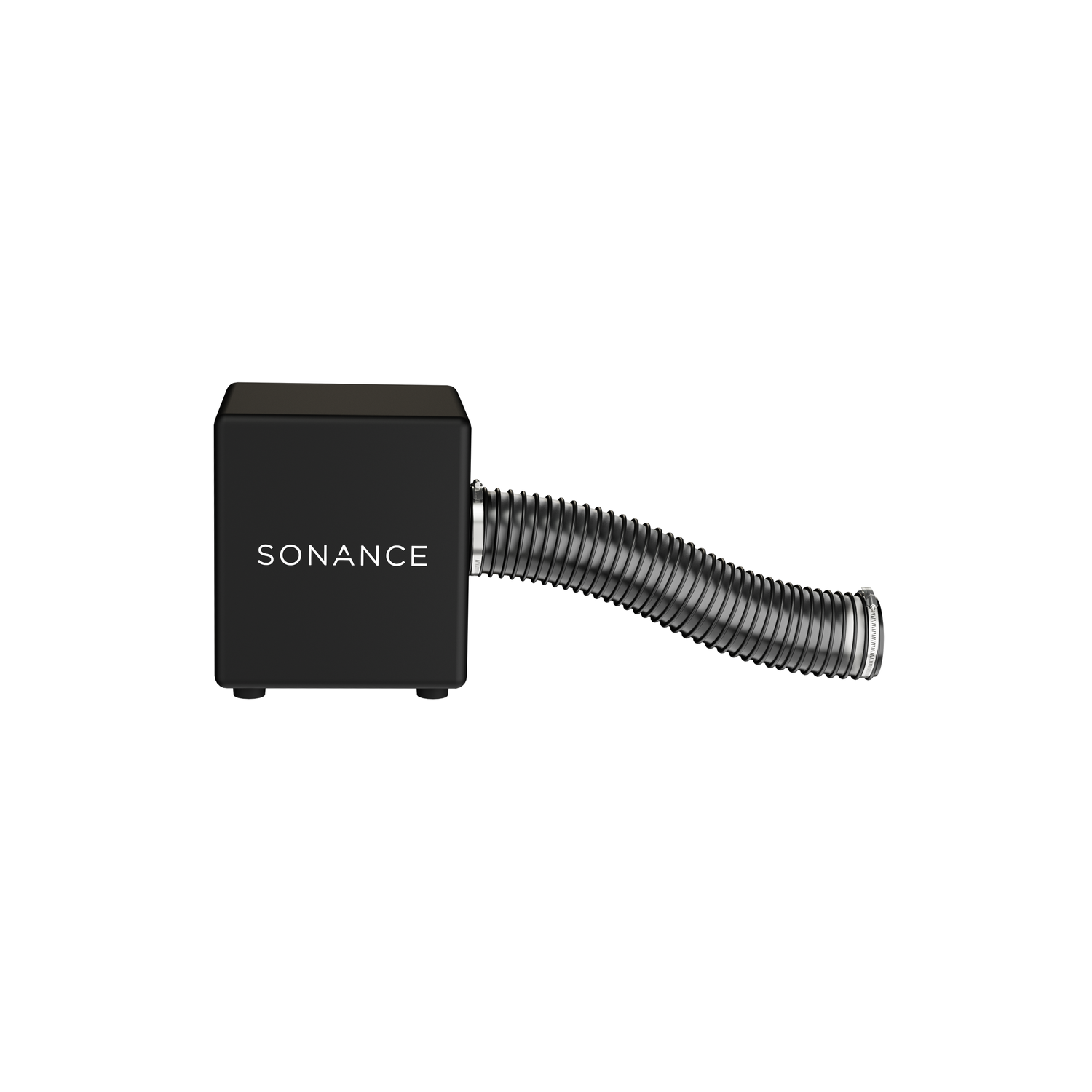

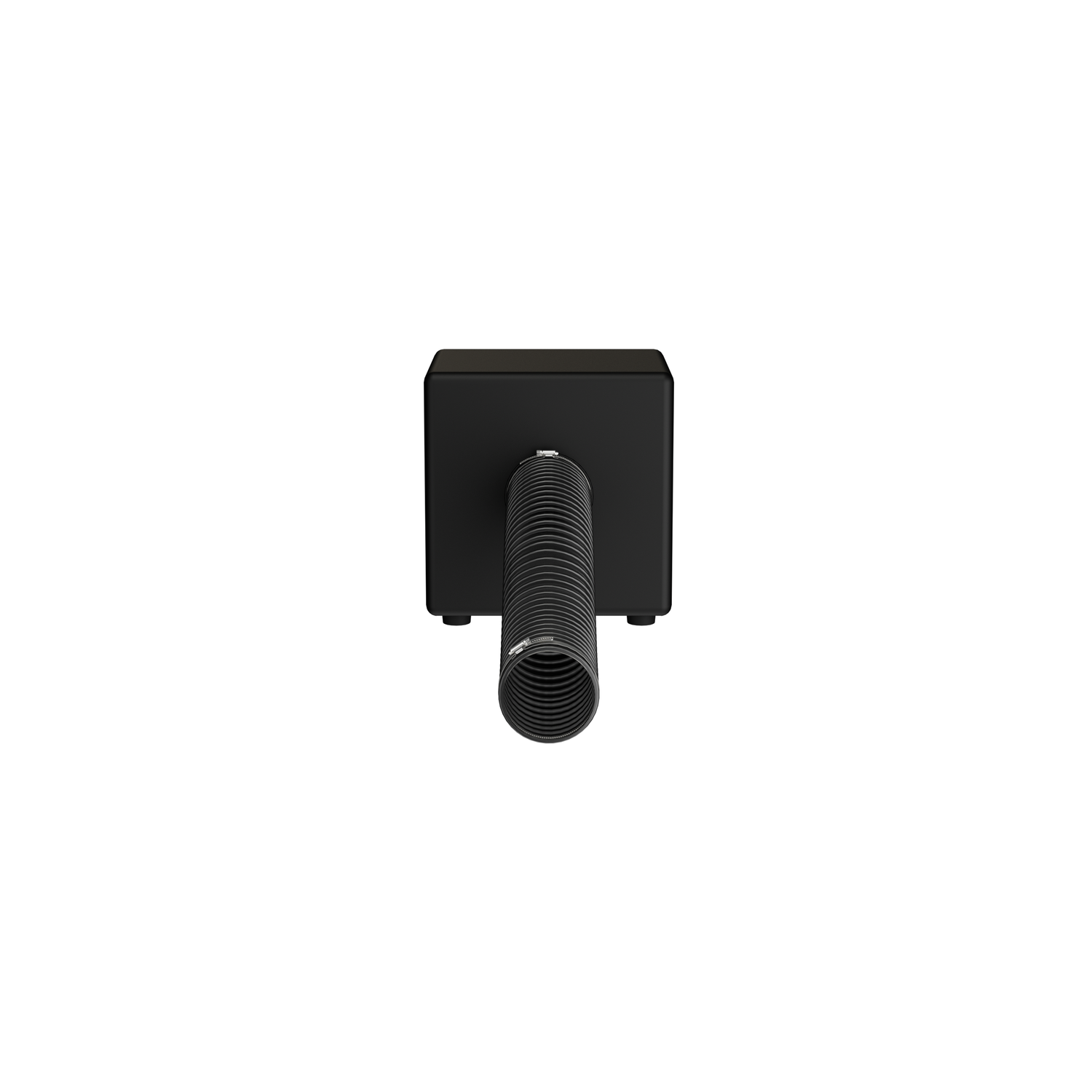

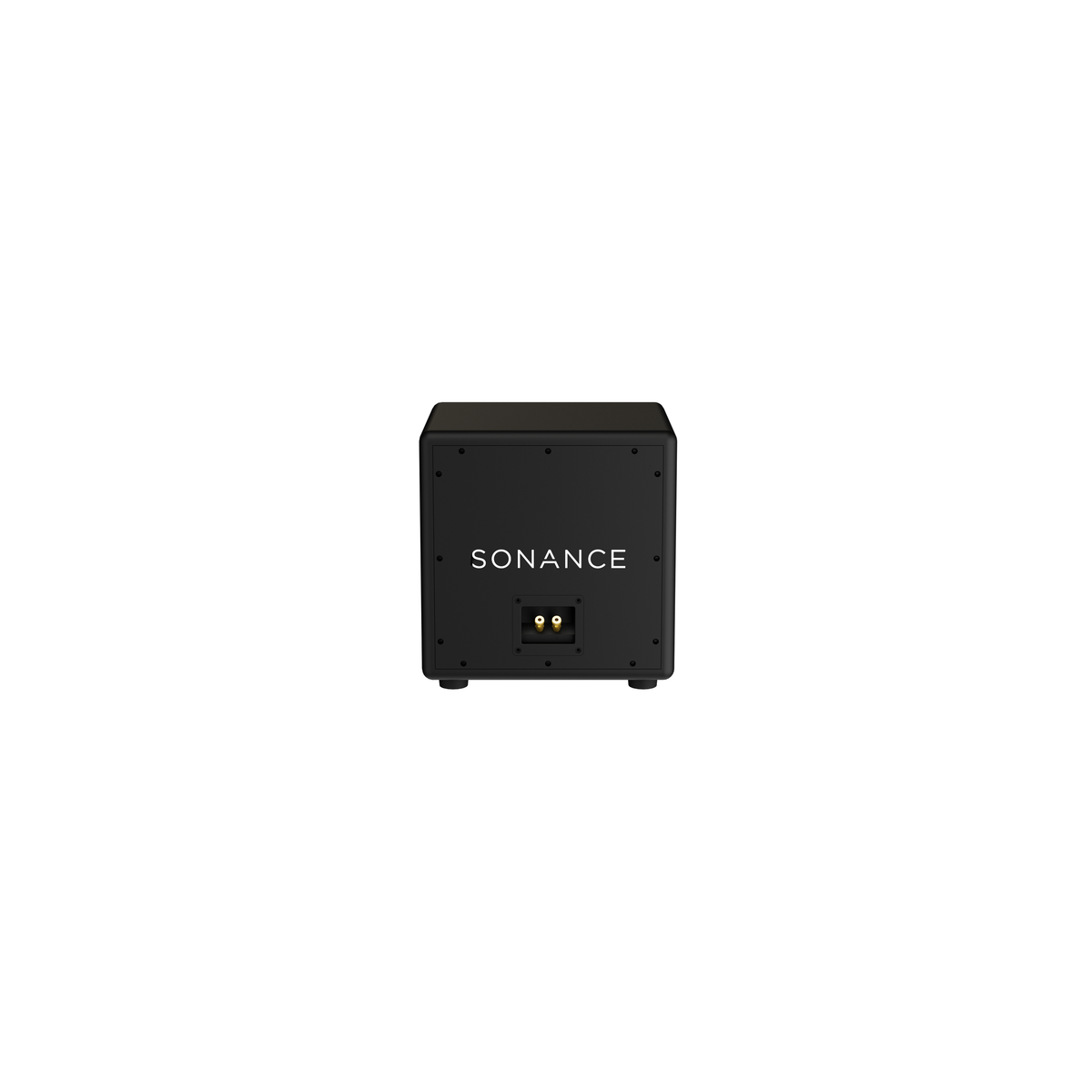

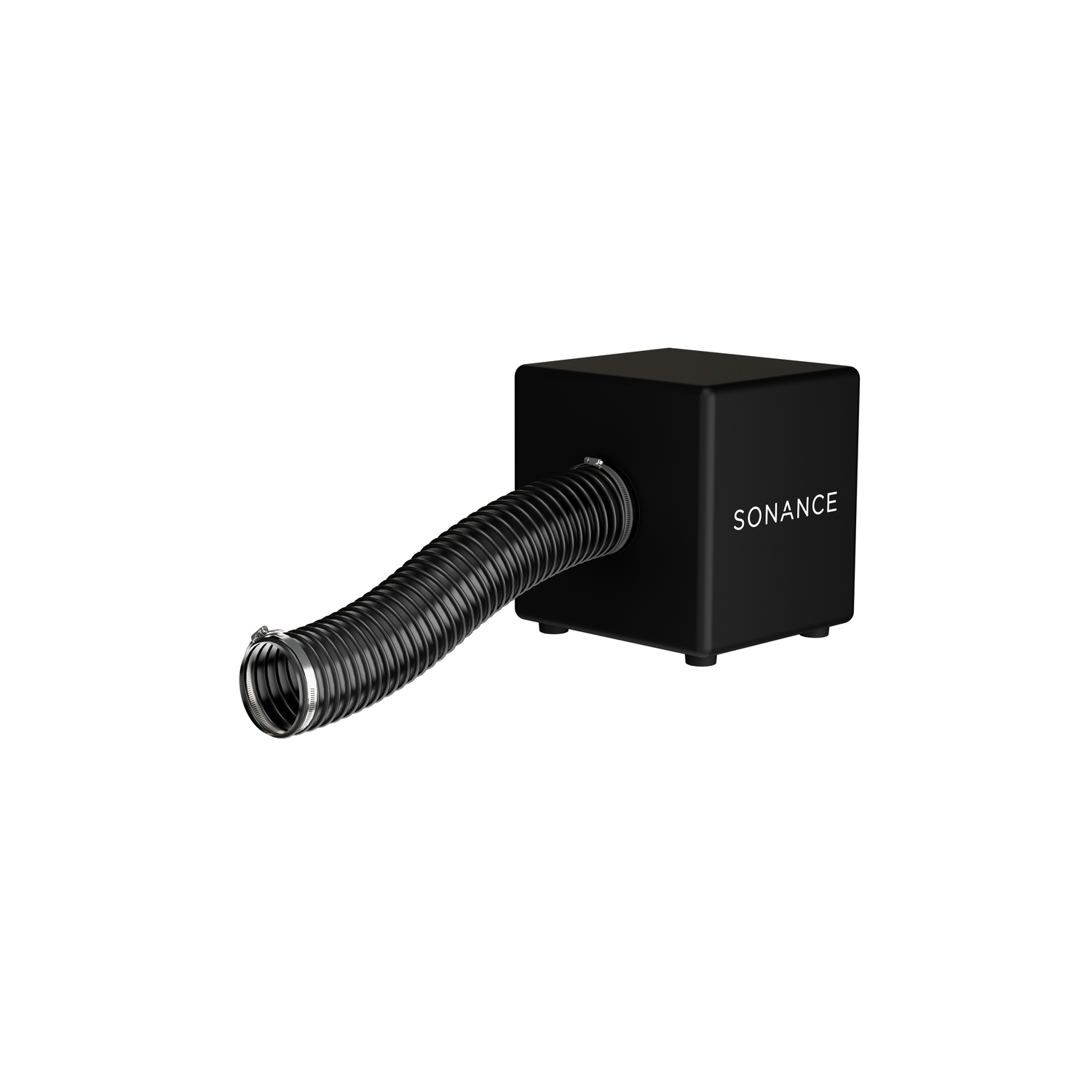

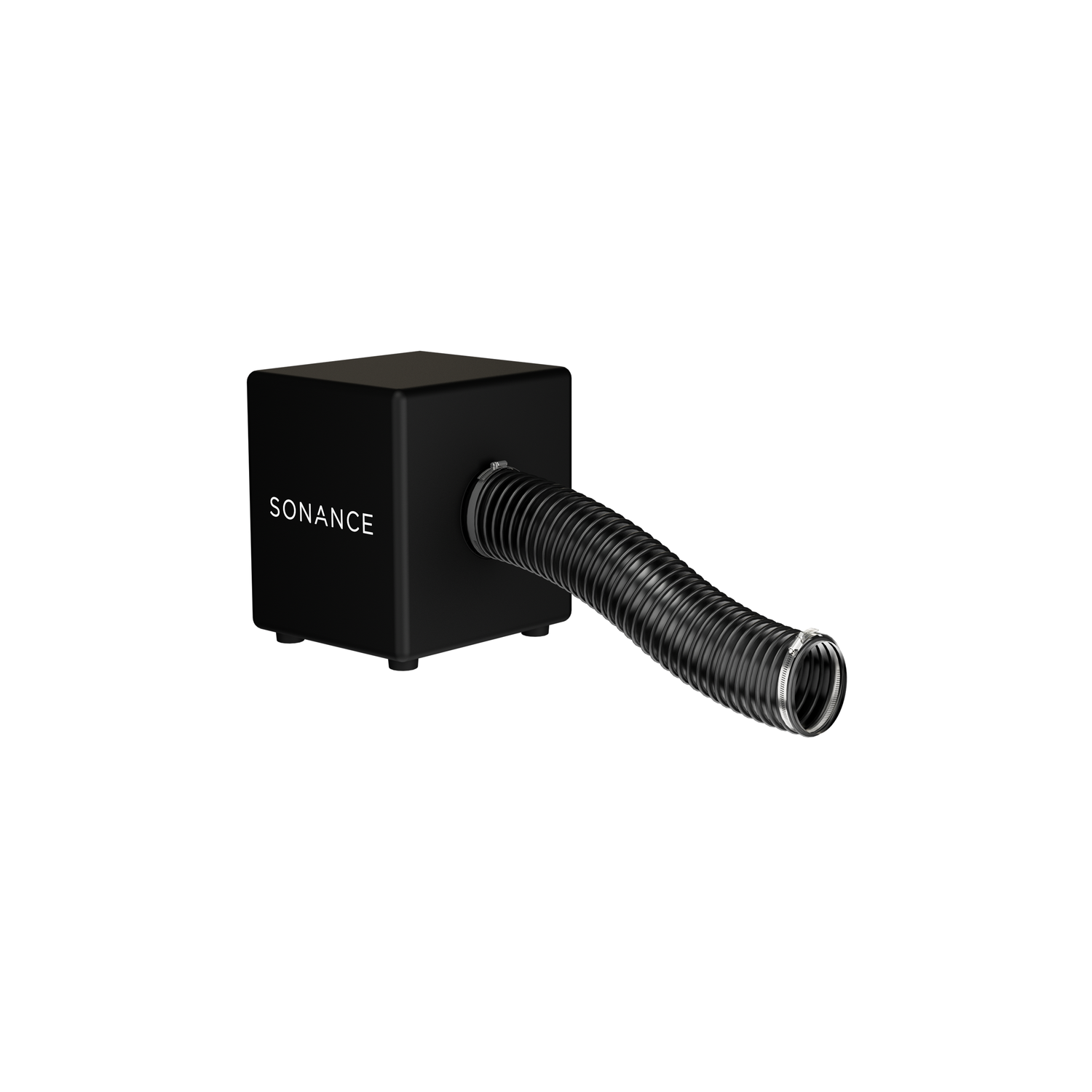

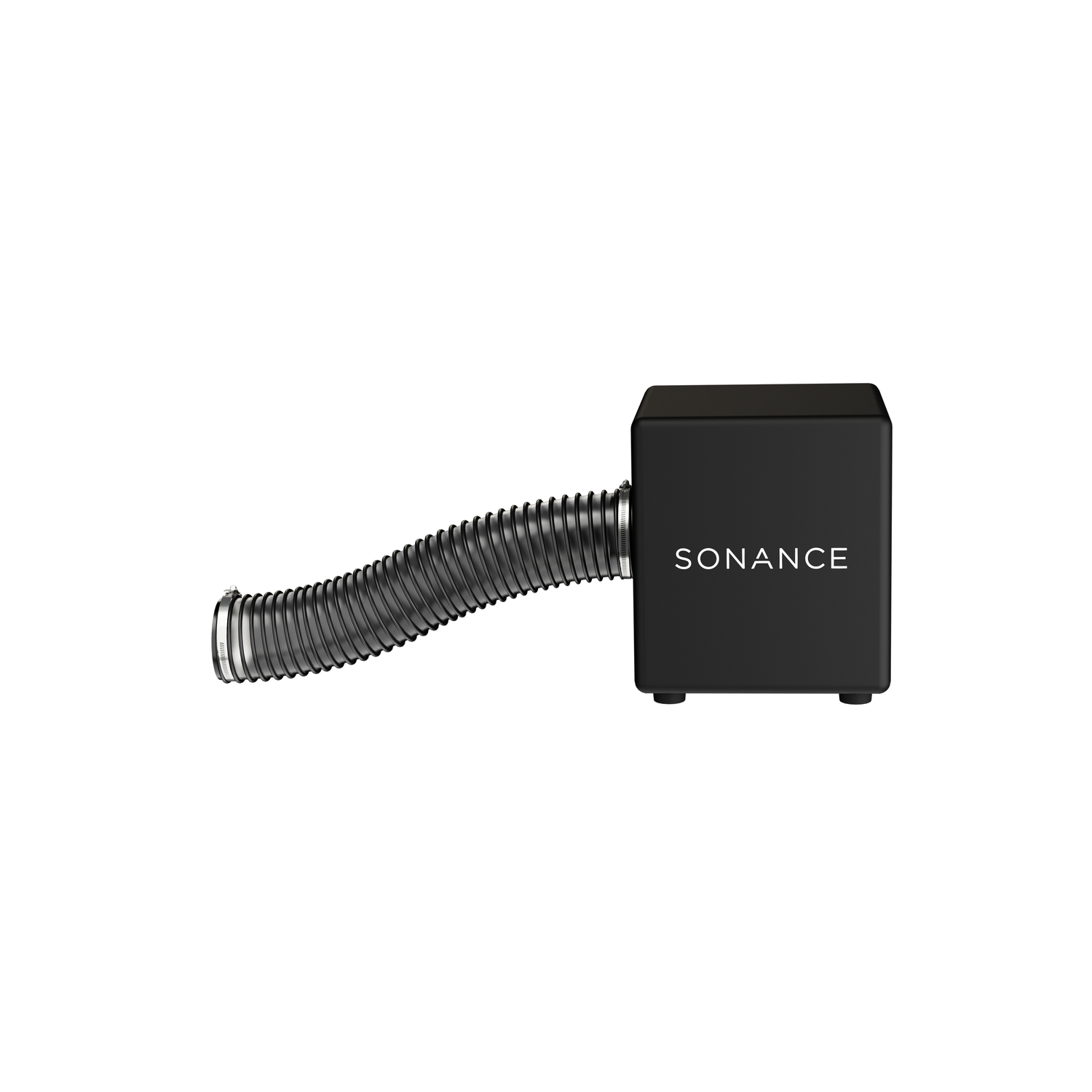

The Sonance PPX10 is a 10-inch subwoofer from the PowerPipe X Series, built to hide bass performance inside ceilings, walls, or cabinetry rather than a visible cabinet. It is intended for integrators specifying distributed audio in medium-sized residential or commercial spaces that need more output than the PPX8 provides. A ported bandpass enclosure and high-excursion aluminum cone extend response to 39Hz.
Product Description
Stepping up from the PPX8, the Sonance PPX10 uses a 10-inch anodized aluminum cone with a rubber surround in a ported bandpass enclosure rated 39Hz to 115Hz (±3dB) at 92dB sensitivity. It handles up to 400 watts at 4 ohms nominal impedance, giving it meaningfully more output than the 8-inch model. The MDF cabinet is finished in textured black and measures 12.99 inches wide by 12.99 inches high by 11.81 inches deep without feet, weighing 38.27 pounds, with an internal tube 4.02 inches in diameter and 21.65 inches long. Like the rest of the PowerPipe X line, the PPX10 supports micro trim, trimless, toekick, and flush-mount finishing options so integrators can match the installation to the architecture. It also pairs with PPX toekick connectors and grille adapters for concealed cabinetry installations. Integrators comparing sizes across the line can review our hidden bass subwoofer options to find the right balance of output and footprint.
Key Features
- 10-Inch High-Excursion Woofer — Anodized aluminum cone with rubber surround, rated 39Hz–115Hz.
- Ported Bandpass Design — Balances output and efficiency from a compact cabinet.
- 400-Watt Power Handling — Rated for 400 watts at 4 ohms nominal impedance.
- Flexible Finishing Options — Supports micro trim, trimless, toekick, and flush-mount installation.
- Concealed Installation — Integrates into ceilings, walls, or cabinetry.
- Compatible Grille Adapters — Works with PPX 6-inch XPC-style grille adapters and toekick connectors.
Typical Applications
The PPX10 fits medium-to-large distributed audio systems in retail, hospitality, boardroom, and residential settings that need concealed bass output.
- Retail and restaurant sound systems
- Boardrooms and conference spaces
- Residential media rooms and cabinetry integration
Technical Specifications
| Driver Size | 10" (254mm) anodized aluminum cone, rubber surround |
| Power Handling | 400 watts recommended |
| Impedance | 4 ohms nominal |
| Frequency Response | 39Hz - 115Hz (±3dB) |
| Sensitivity | 92dB SPL |
| Dimensions (W x H x D) | 12.99" x 12.99" x 11.81" (without feet) |
| Weight | 38.27 lbs (17.36kg) |
| Enclosure | MDF, textured black finish |
Frequently Asked Questions
What is the frequency response of the PPX10?
The PPX10 is rated 39Hz to 115Hz (±3dB).
What amplifier power does the PPX10 need?
Sonance recommends up to 400 watts into the PPX10's 4-ohm nominal impedance.
How much does the PPX10 weigh?
The PPX10 weighs 38.27 pounds (17.36 kg).
What finishing options are available for the PPX10?
It supports micro trim, trimless, toekick, and flush-mount finishing options.
How does the PPX10 compare to the PPX8?
The PPX10 uses a larger 10-inch driver, handles more power (400 watts versus 300 watts), and extends lower in frequency.
Which grille adapters fit the PPX10?
Sonance offers a 6-inch XPC-style grille adapter compatible with the PPX10.
