Sennheiser Portable digital wireless set. Includes EW-DP EK receiver, EW-D SK bodypack transmitter, ME 2 lavalier, EW-D SKP plug-on transmitter, mounting kit, batteries, cables, frequency range: R4-9 (552-608 MHz)
Sennheiser Portable digital wireless set. Includes EW-DP EK receiver, EW-D SK bodypack transmitter, ME 2 lavalier, EW-D SKP plug-on transmitter, mounting kit, batteries, cables, frequency range: R4-9 (552-608 MHz) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser Portable digital wireless set. Includes EW-DP EK receive...
Product Overview

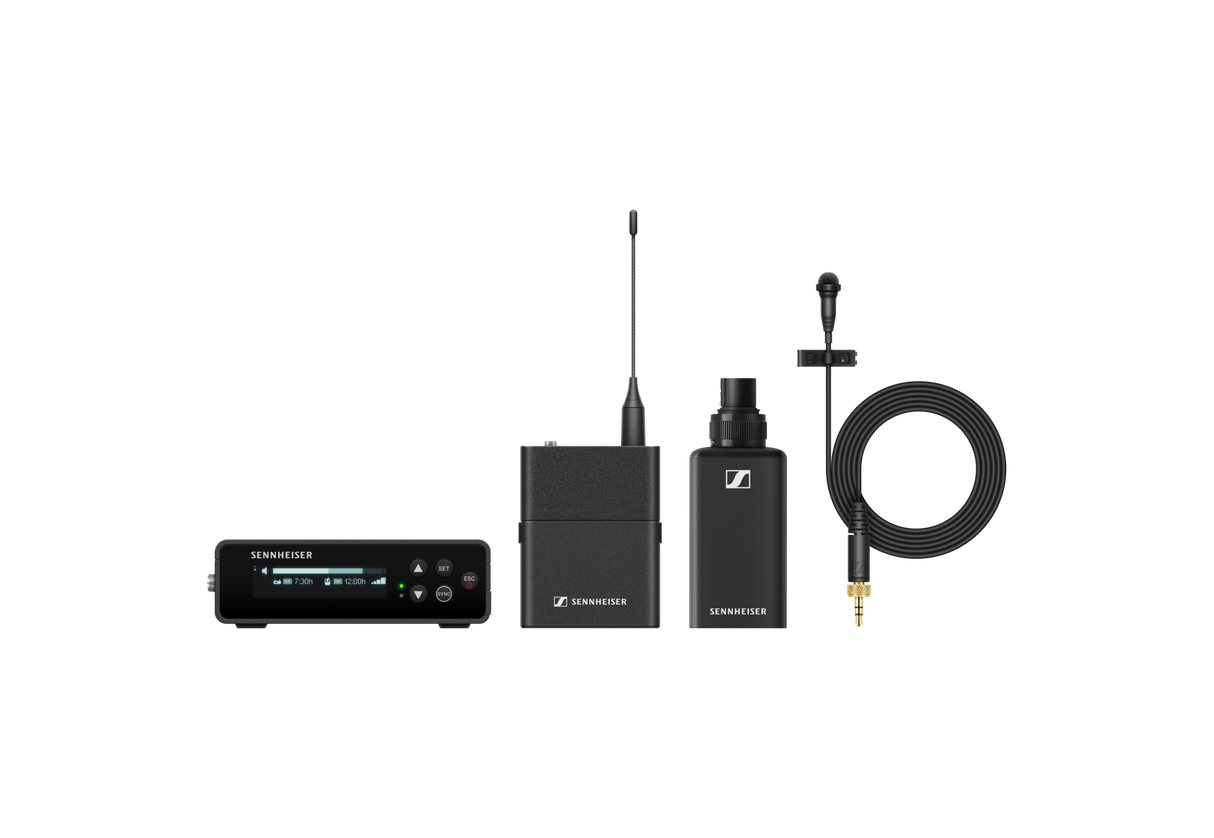

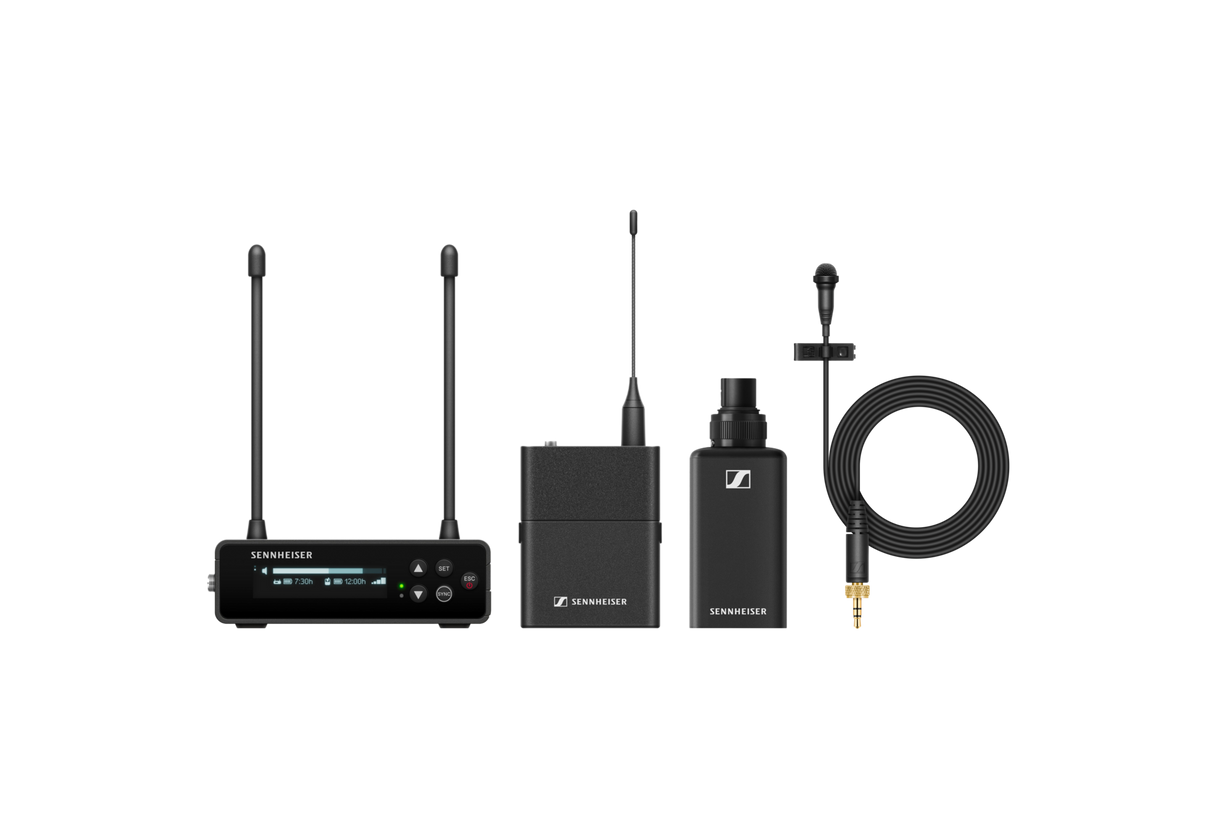

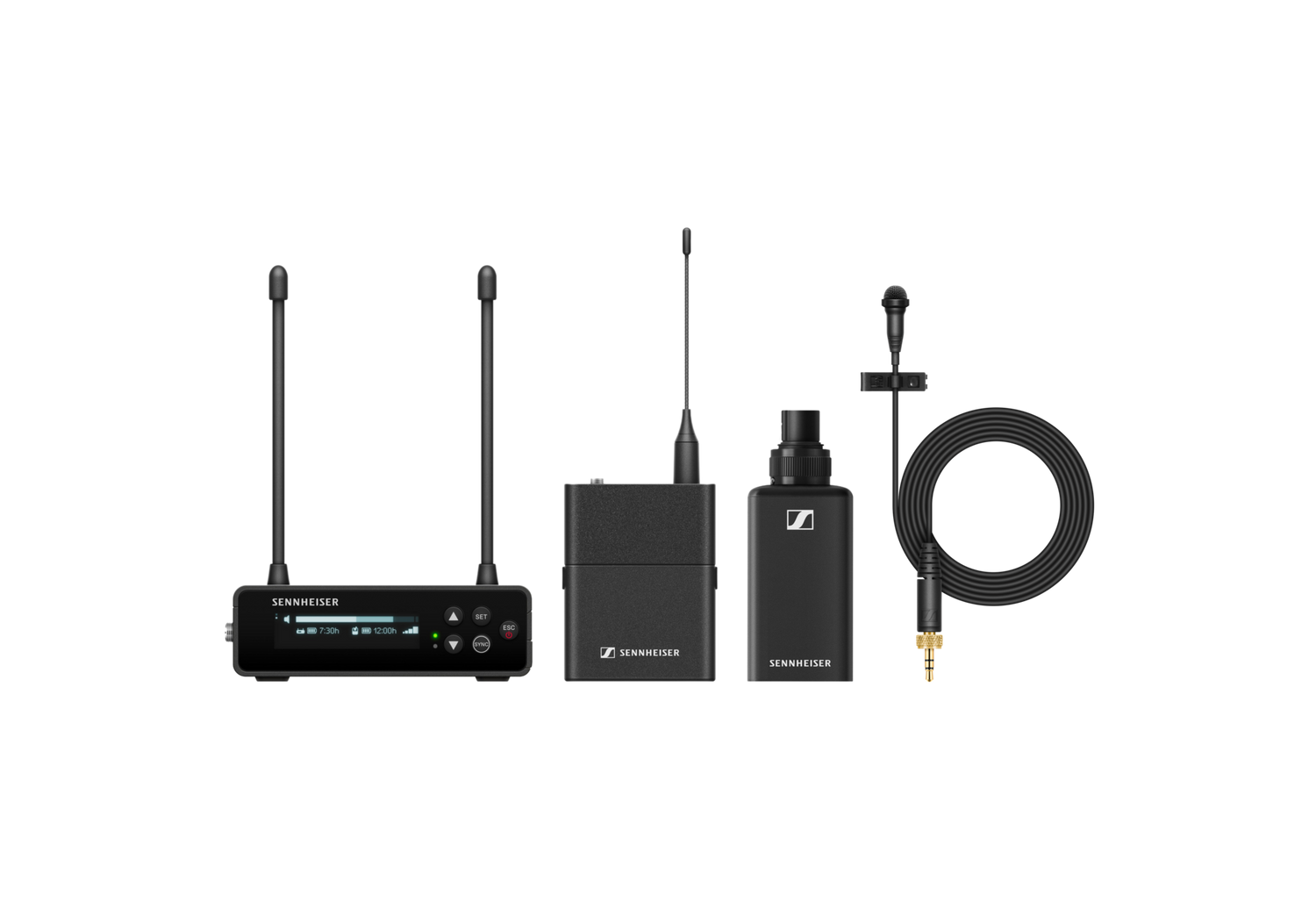

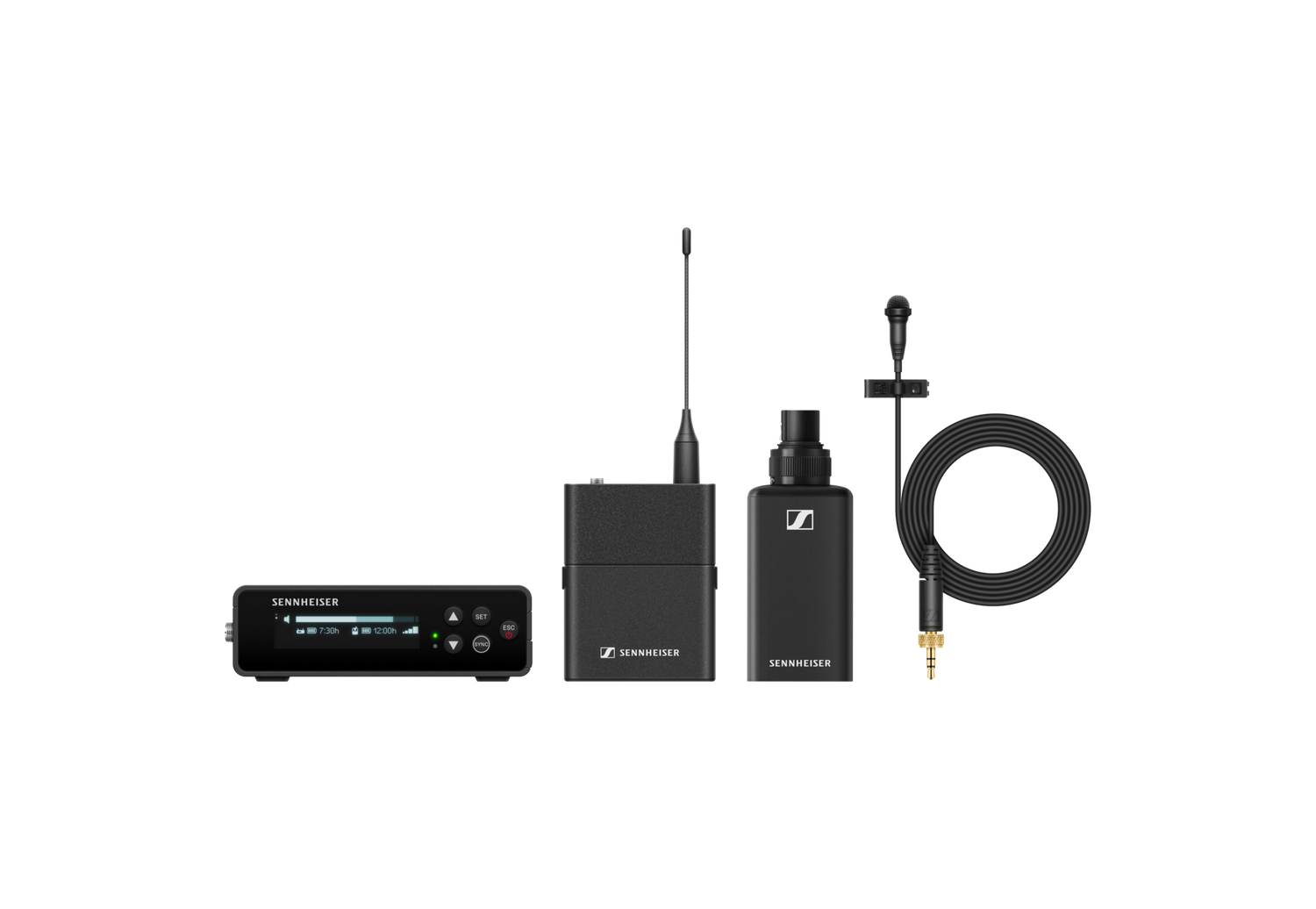

The Sennheiser EW-DP ENG Set (SKU 700042, R4-9: 552–608 MHz) is a portable digital UHF wireless combo system designed for ENG, outside broadcast, filmmakers, content creators, and newsgatherers who need both a bodypack lavalier and plug-on transmitter in a single kit. The set includes the EW-DP EK camera-mount receiver, EW-D SK bodypack transmitter with ME 2 omnidirectional lavalier, and the EW-D SKP plug-on transmitter with built-in recorder and +48V phantom power, giving operators maximum flexibility to cover both lav and handheld or XLR microphone sources from one portable wireless system.
Product Description
The EW-DP ENG Set is built on Sennheiser’s EW-DP (Evolution Wireless Digital Portable) platform, delivering broadcast-quality UHF digital audio with a 134 dB dynamic range and the SePAC codec. No input gain adjustment is required on the bodypack transmitter — the 134 dB range handles everything from quiet dialogue to high-SPL sources without clipping. The EW-DP EK receiver mounts magnetically to the included cheese plate via cold shoe or mounting bolts, attaching to a DSLR, mirrorless camera, or field recorder with 3.5 mm or XLR output cables (both included). The EW-D SKP plug-on transmitter adds phantom power (+48V) for wired XLR microphones, and features a built-in recorder for backup audio. Up to 56 MHz switching bandwidth makes frequency coordination fast and straightforward. Bluetooth pairing via the Sennheiser Smart Assist app allows remote control at up to 120 feet. Battery life is up to 8 hours on two AA batteries (bodypack) or 12 hours with rechargeable BA 70 packs. Operating range is up to 100 m line of sight. The R4-9 frequency range (552–608 MHz) is a standard commercial UHF band; verify local frequency licensing requirements before deployment.
Key Features
- EW-D SK Bodypack + ME 2 Lavalier — Omnidirectional condenser lavalier for discreet talent audio in ENG and interview setups.
- EW-D SKP Plug-On Transmitter — Accepts any XLR microphone; +48V phantom power for condenser mics; built-in backup recorder.

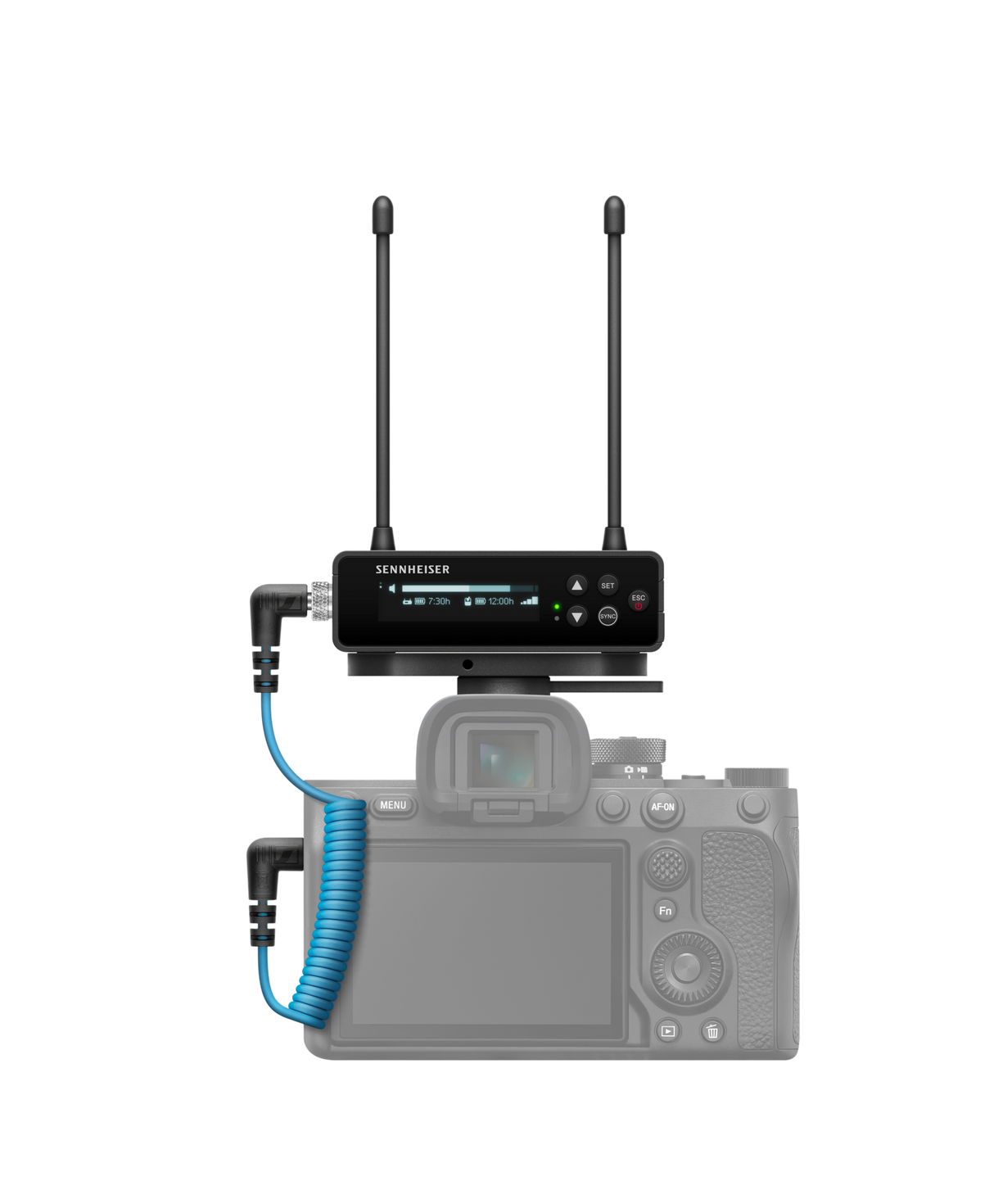

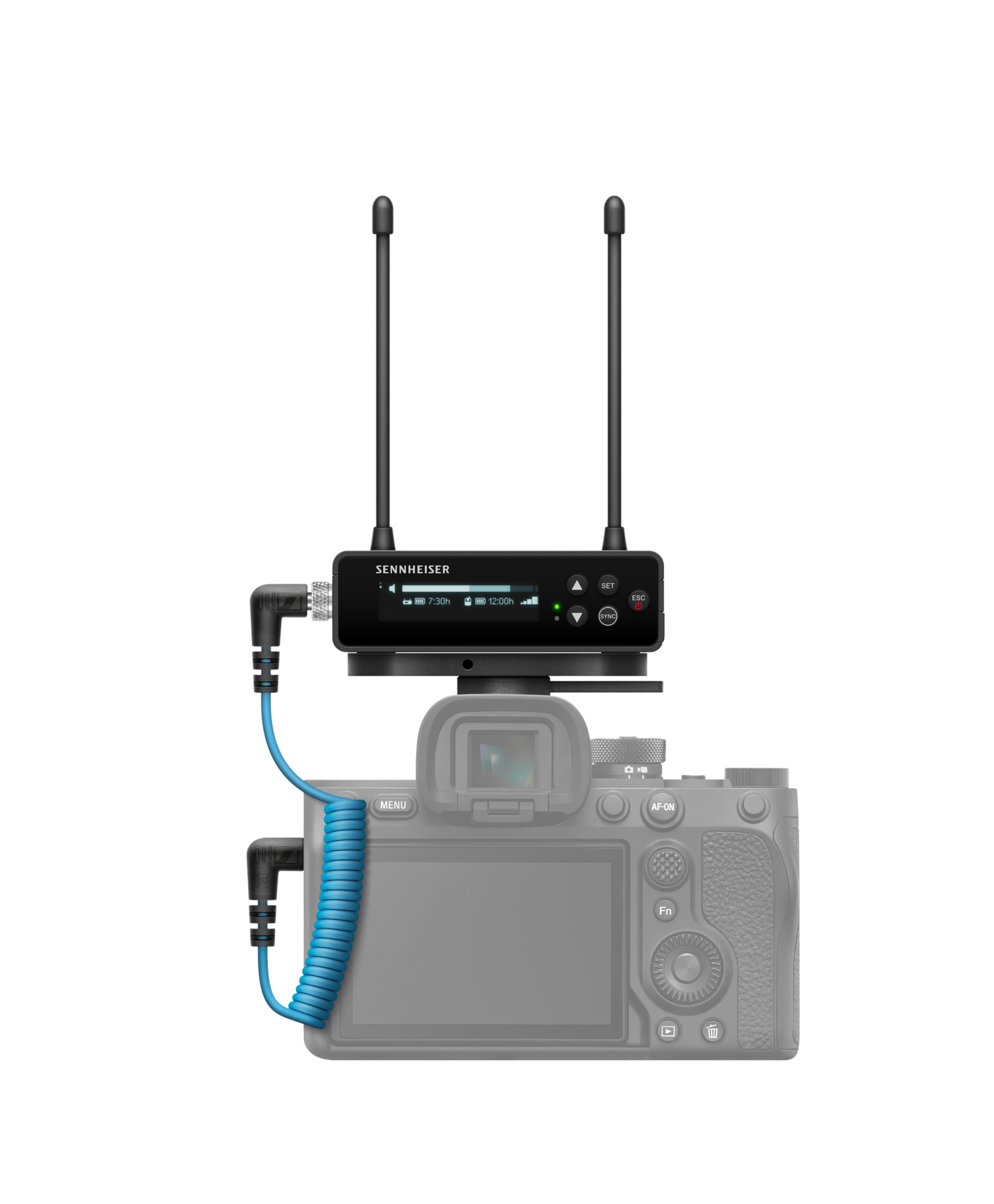

- EW-DP EK Camera-Mount Receiver — Magnetic cheese plate attachment; 3.5 mm and XLR outputs for camera or recorder connection.
- 134 dB Dynamic Range (SePAC) — No input gain adjustment needed on transmitters in the field.
- 56 MHz Switching Bandwidth — Fast, clean channel deployment for single and multi-system use.
- Bluetooth Smart Assist App — Remote pairing and control up to 120 ft via iOS/Android app.
- Up to 12-Hour Battery Runtime — With rechargeable BA 70 batteries; up to 8 hours on AA cells.
- 100 m Operating Range — Reliable UHF range for ENG and outdoor field production.
- Includes 3.5 mm + XLR Output Cables — Ready to connect to camera or recorder immediately out of the box.
Typical Applications
- ENG and outside broadcast portable wireless systems
- Broadcast studio field production wireless
- Corporate video production and documentary filmmaking
- Conference room and boardroom presenter wireless
- Training room and educational video production
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 700042 |
| Frequency Range | R4-9: 552–608 MHz |
| Includes | EW-DP EK receiver, EW-D SK bodypack, ME 2 lavalier, EW-D SKP plug-on transmitter, cheese plate, cold shoe, rechargeable battery, 3.5mm + XLR cables |
| Audio Codec | SePAC |
| Dynamic Range | 134 dB |
| Switching Bandwidth | Up to 56 MHz |
| Operating Range | Up to 100 m (line of sight) |
| Battery Runtime | Up to 8 hrs (AA) / 12 hrs (BA 70 rechargeable) |
| Phantom Power (SKP) | +48V |
| Bluetooth Range | Up to 120 ft (Smart Assist app) |
| Receiver Output | 3.5 mm TRS + XLR |
Frequently Asked Questions
- Does this system require an FCC license?
- The R4-9 frequency range (552–608 MHz) may be subject to local frequency coordination requirements. Verify with your local regulatory authority before deployment. The EW-DP system is designed for operation in commercially licensed UHF bands.
- Can the SKP plug-on transmitter record audio internally?
- Yes. The EW-D SKP plug-on transmitter includes a built-in recorder for backup audio capture, useful as a safety track in ENG and interview production.
- What is the difference between the EW-DP ENG Set and the EW-DP ME 2 Set?
- The ENG Set adds the EW-D SKP plug-on transmitter to the package, providing coverage for both lavalier (via the SK bodypack) and XLR microphone sources simultaneously. The ME 2 Set includes only the SK bodypack and lavalier.
- What cameras and recorders is the EW-DP EK receiver compatible with?
- The EK receiver outputs via 3.5 mm TRS (for DSLR/mirrorless cameras) and XLR (for field recorders and mixers), covering the majority of professional camera and recorder inputs.
- What warranty applies?
- Standard 2-year Sennheiser warranty.
