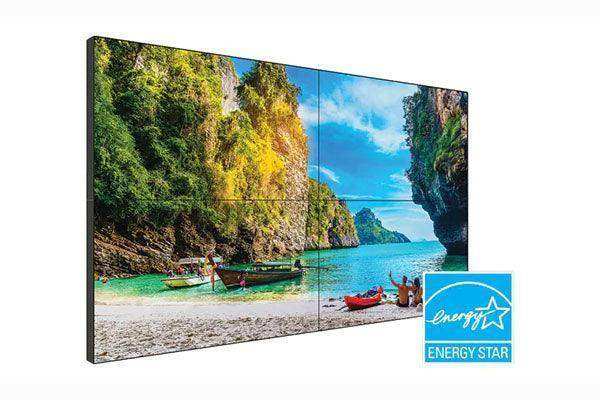

Planar VM55LX-X2 55in 1920x1080 500 nit 2.5mm bezel to bezel LCD Video Wall - 998-2598-00

Planar SKU: 998-2598-00
No reviews

Sale price$3,129.00


The Planar® VM55LX-X2 is a 55" tiled LCD video wall display with a 2.6mm tiled bezel width and 500-nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the  Planar VM55LX-X2 has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplify tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55LX-X2 delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55LX-X2 is designed to meet a wide range of applications including retail, hospitality, lobbies, and museums.

The Planar VM55LX-X2 is an ENERGY STAR® certified video wall display.

Product Name VM55LX-X2
Planar Part Number 998-2598-00
Viewable Size 55" diagonal
Display Technology Commercial-grade IPS LCD
Backlight D-LED with Local Dimming
Brightness (Typical) 500 cd/m²
Bezel Width 1.7mm (left / top), 0.9mm (right / bottom)
Tiled Bezel Width 2.6mm
Display Resolution 1920 x 1080, full HD
Aspect Ratio 16:9
Contrast Ratio (typ) 1000:1
Contrast Ratio - Dynamic 100,000:1
Response Time (typ) 8 ms
Viewing Angle (typ) 178°
Palette 1.073B colors (10 bit)
Color Gamut 72% NTSC
Pixel Pitch 0.630mm x 0.630mm
Haze 28%
