Planar VM55LX-M 55in 1920 x 1080 LCD Video Wall Display - 998-1151-00

Product Overview

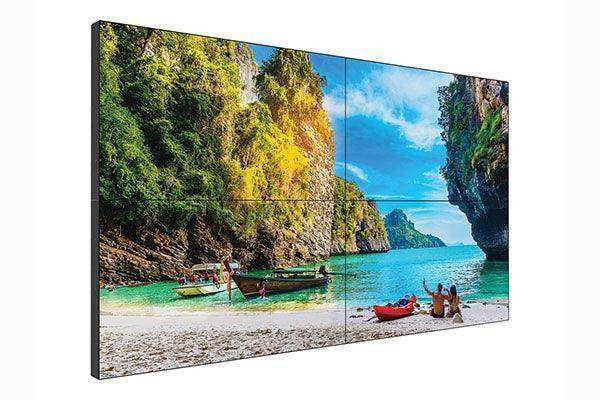

The Planar VM55LX-M (SKU 998-1151-00) is a 55-inch Full HD IPS LCD video wall display from the VM Series LX standard-brightness tier, delivering 500 nit output for controlled indoor ambient light environments. With a tiled bezel width as small as 1.8mm, 4K@60Hz signal connectivity with HDCP 2.2, built-in video wall scaling up to a 10x10 array, OPS slot, and 24/7 mission-critical reliability, the VM55LX-M is the cost-effective VM Series choice for lobbies, boardrooms, retail, hospitality, and institutional video wall deployments where 700 nit premium brightness is not required.

Product Description

The Planar VM55LX-M occupies the LX standard-brightness position in the VM Series product line. With 500 nit brightness and IPS technology, it delivers consistent color accuracy, a 1.8mm tiled bezel for near-seamless visual surfaces, and full VM Series feature parity with the MX tier at a lower price point. It supports 4K@60Hz input via DisplayPort and HDMI (HDCP 2.2), with loop-through and built-in video wall scaling that handles arrays up to 10x10 without a standalone wall controller. Daisy-chain support spans DisplayPort, HDMI, DVI, and VGA. An OPS slot accepts compatible media player modules for integrated playback. Source failover ensures continuous content display. The fanless chassis delivers silent operation — essential in conference rooms, boardrooms, and other audience-critical spaces. Both landscape and portrait orientations are supported, and VESA mounting is compatible with standard third-party mounts.

Key Features

• 55-inch Full HD (1920x1080) IPS LCD — VM Series LX standard-brightness tier
• 500 nit brightness — optimized for controlled indoor ambient light
• 1.8mm tiled bezel width for near-seamless video wall arrays
• IPS technology — superior viewing angles and color accuracy
• 4K@60Hz DisplayPort and HDMI connectivity with HDCP 2.2
• Built-in video wall scaling — up to 10x10 display configurations
• OPS slot for integrated digital signage media players
• Multiple daisy-chain signal support: DisplayPort, HDMI, DVI, VGA
• Source failover for uninterrupted display continuity
• Fanless design — acoustically clean commercial operation
• Landscape and portrait orientation support
• VESA mounting compatible
• 24/7 mission-critical operation rated

Typical Applications

• Corporate boardrooms and conference center video walls
• Hotel lobby and hospitality venue display arrays
• University auditorium and lecture hall display systems
• Sports bar and restaurant entertainment walls
• Retail store interiors with controlled lighting
• Museum exhibit and gallery display walls

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the VM55LX-M and the VM55MX-M2?

The VM55LX-M (998-1151-00) delivers 500 nit brightness and is the LX standard-brightness tier — appropriate for controlled indoor lighting. The VM55MX-M2 (998-2595-00) delivers 700 nit and is the MX high-brightness tier for high ambient light environments such as atriums, casinos, and retail with window exposure. Core features (1.8mm bezel, 4K@60Hz, OPS, 10x10 scaling, fanless) are shared across both tiers.

Does the VM55LX-M require a separate video wall controller?

No. Built-in video wall scaling supports configurations up to 10x10 (100 displays) without a standalone controller. For more complex multi-source or dynamic content management, an external controller may still be preferred.

Does the VM55LX-M support portrait orientation?

Yes. Both landscape and portrait mounting configurations are supported, enabling vertical column designs and mixed-orientation video wall layouts.

What is source failover and why does it matter?

Source failover automatically switches the display to an alternate input signal if the primary signal is interrupted. This ensures uninterrupted content on 24/7 public-facing or mission-critical displays without manual intervention.

Can an OPS media player be installed inside the VM55LX-M?

Yes. The OPS (Open Pluggable Specification) slot accepts compatible digital signage compute or playback modules, eliminating external media player hardware and simplifying installations.

What warranty does the VM55LX-M carry?

Planar VM Series products typically include a 3-year advance exchange warranty. Confirm current terms with Creation Networks at the time of purchase.
