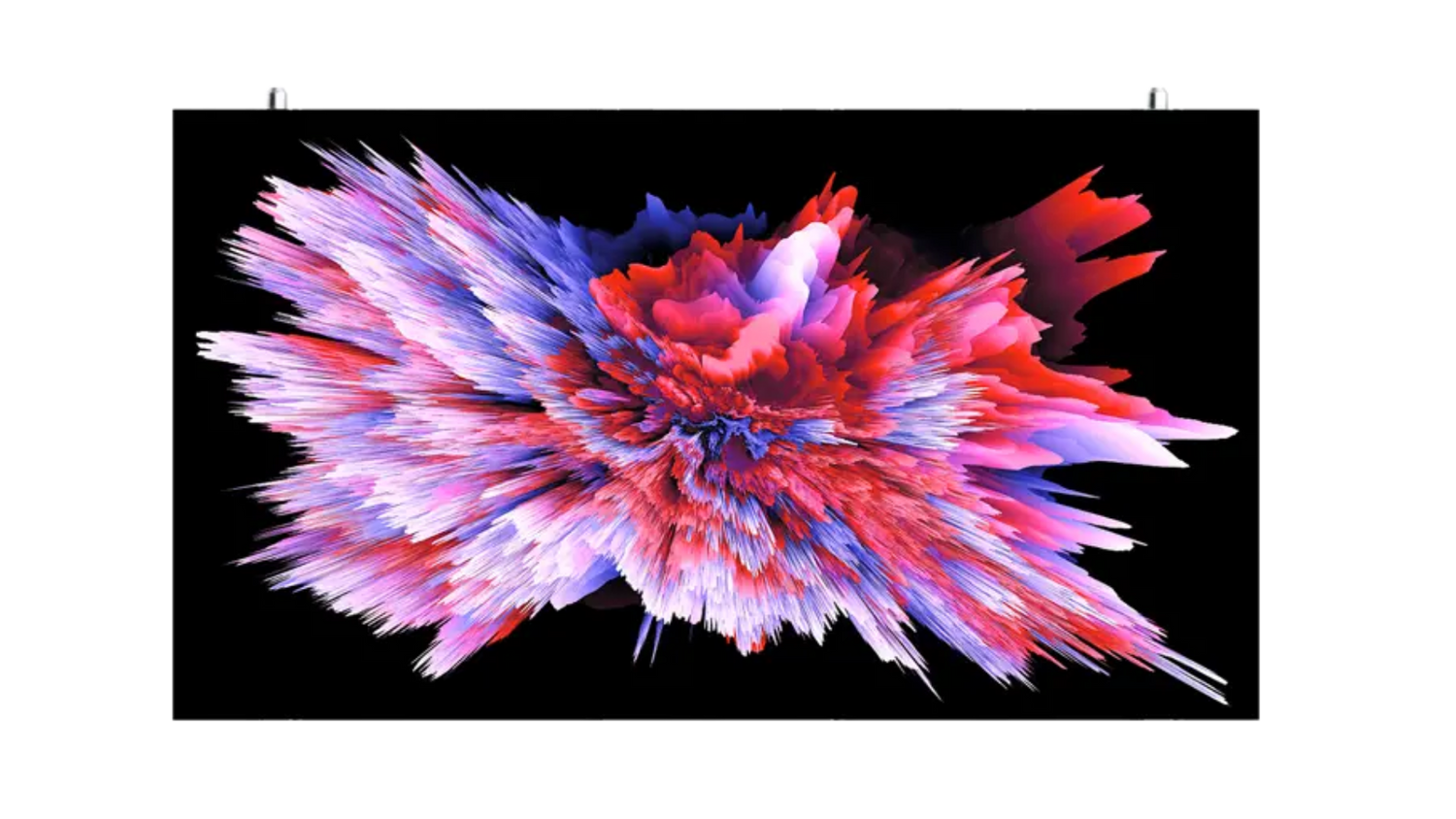

Planar VDS Series 0.9mm COB LED Video Wall Cabinet - VDS009
The Planar VDS Series is an entry-level indoor fine-pitch LED cabinet built on Chip-on-Board flip-chip technology. Every module is fully encapsulated, so the surface is collision, scratch and static resistant as well as waterproof and dustproof. The 0.9mm model gives you a 640 x 360 cabinet resolution, so a 3x3 array lands at native 1920 x 1080.
Why it matters
- A surface that survives a public space. Full encapsulation with 4H hardness means the wall handles knocks, fingernails and cleaning in a lobby, classroom or retail floor without a protective barrier in front of it.
- COB flip-chip LED. Excellent contrast, wide viewing angles and even brightness, with 97% or better brightness uniformity across the wall.
- Front install and service. Modules come off the front magnetically, so the wall can go against a solid surface. Power supplies are reachable from the front or the rear.
- Low running cost. Roughly 175W per square meter in normal use, with a one-key energy saving mode that cuts at least 90% on a black screen.
- Built for corners. 90-degree splicing down to a 600mm minimum column side, so it wraps pillars and inside corners.
Recognized with rAVe's Best of Show Award at ISE 2024 in the Best Overall LED Video Wall Product category.
Specifications
| Pixel Pitch | 0.9375mm |
| Cabinet Resolution | 640 x 360 |
| Pixel Density | 1,137,777 per sq m |
| LED Type | Full Flip Chip COB |
| Cabinet Size (W x H x D) | 600 x 337.5 x 43.5mm | 23.62 x 13.29 x 1.71 in |
| Cabinet Area | 0.2025 sq m | 2.18 sq ft |
| Cabinet Weight | 5 kg | 11.02 lbs |
| Cabinet Material | Die-cast aluminum |
| Module Configuration | 4 x 2 (8 modules per cabinet) |
| Module Size | 150 x 168.75mm | 5.91 x 6.64 in |
| Module Resolution | 160 x 180 |
| Brightness | 600 nits, 1000 nits optional |
| Contrast Ratio | 10,000:1, 20,000:1 optional |
| Refresh Rate | 3840 Hz |
| Frame Rate | 50 / 60 Hz |
| Grayscale | 16 bit |
| Color Temperature | 3000 - 10,000K adjustable |
| Viewing Angle | 170 degrees horizontal and vertical |
| Brightness Uniformity | 97% or better |
| Surface Flatness | 0.1mm or better |
| Power, Maximum | 375 W/sq m | 76 W per cabinet |
| Power, Average | 175 W/sq m | 36 W per cabinet |
| Line Voltage | AC 100-240V, 50/60Hz |
| Drive Mode | Common cathode constant current |
| Ingress Protection | IP54, 4H surface hardness |
| Operating Temperature | -10 to 40 C | 14 to 104 F |
| LED Lifetime | 100,000 hours at 24/7 |
| Certifications | FCC, CB, cTUVus, CE, IC, RoHS, WEEE, REACH |
| Warranty | 2 year standard LED warranty |
Specifications published by Planar Systems. Sold as an individual cabinet; wall size, controller and mount are configured per project.
