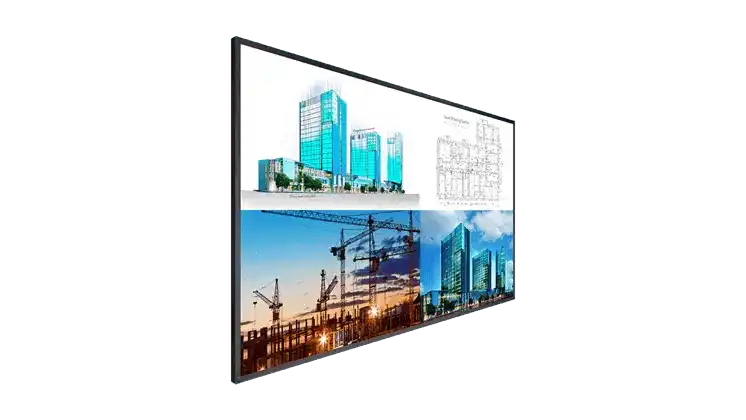

Planar URX100-ERO-T UltraRes X Series 100" 4K UHD LED Touch Display - 998-3172-00
Planar URX100-ERO-T UltraRes X Series 100" 4K UHD LED Touch Display - 998-3172-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar URX100-ERO-T UltraRes X Series 100" 4K UHD LED Touch Di...
Product Overview
The Planar URX100-ERO-T is a TAA-compliant, 100-inch 4K UHD commercial display engineered for demanding mission-critical and high-traffic environments. As a flagship Planar UltraRes X 4K commercial display, it combines 700-nit brightness, HDR capability, and Planar ERO-LCD protective glass — optically bonded Gorilla Glass — in a single large-format panel suited to control rooms, corporate meeting spaces, and high-impact public signage. The touch-enabled model adds projected capacitive touch input, allowing interactive use cases without sacrificing the ruggedized protection that ERO provides. An OPS expansion slot and redundant power supply address enterprise integration and uptime requirements.
Product Description
At 100 inches diagonal, the URX100-ERO-T occupies the same visual footprint as a modest projection screen while delivering the consistency, longevity, and brightness that LCD technology provides. Planar MediaPlex Plus Processing is built in, enabling picture-in-picture, dual, triple, and quad source layouts — all recallable from stored presets, which is particularly useful in control room environments where operators switch between predetermined display configurations. The 700-nit panel maintains image legibility in bright ambient conditions typical of large lobby or command center installations. HDR compatibility broadens the displayable luminance and color range, important for visualization and simulation applications. TAA compliance makes the URX100-ERO-T suitable for U.S. federal procurement and government integrators. The optional ADA-compliant mounting configuration via the Planar Profile Mounting System extends accessibility requirements compliance.
Key Features
- 100" diagonal 4K UHD (3840 x 2160) LCD display
- 700-nit brightness for high-ambient-light environments
- Planar ERO-LCD with Gorilla Glass protective overlay
- Projected capacitive touch
- Planar MediaPlex Plus multi-source processing (PiP, dual, triple, quad)
- HDR-ready with wide color gamut
- OPS expansion slot for compute module integration
- Redundant power supply for continuous operation
- TAA compliant for federal and government procurement
- Portrait and landscape orientation support
- 24x7 duty cycle rating
- Optional ADA-compliant mounting via Planar Profile Mounting System
Typical Applications
- Command and control rooms requiring 24x7 uptime
- Corporate boardrooms and executive briefing centers
- Government and defense operations centers
- University and higher education collaboration spaces
- High-traffic lobby and wayfinding digital signage
- Healthcare command centers and diagnostic display walls
Technical Specifications
| Specification | Value |
|---|---|
| Screen Size | 100" diagonal |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 700 nits |
| HDR | Yes |
| Protective Glass | ERO-LCD with Gorilla Glass |
| Touch Technology | Projected Capacitive |
| Multi-Source Processing | Planar MediaPlex Plus (PiP, dual, triple, quad) |
| OPS Slot | Yes (1 slot) |
| Redundant Power Supply | Yes |
| Orientation | Landscape and Portrait |
| Duty Cycle | 24x7 |
| TAA Compliant | Yes |
| Operating Temperature | 0 to 40°C |
Competitor Comparison
| Criteria | Planar URX100-ERO-T | Samsung QMB-T 98" | LG UH7F 86" | NEC P988QL 98" |
|---|---|---|---|---|
| Screen Size | 100" | 98" | 86" | 98" |
| Brightness | 700 nits | 500 nits | 500 nits | 500 nits |
| Protective Glass | ERO-LCD Gorilla Glass | Tempered glass option | None standard | None standard |
| Touch Input | Projected Capacitive | IR Touch | IR Touch | None standard |
| Multi-Source Processing | Built-in MediaPlex Plus | Built-in | Built-in | Built-in |
| Redundant Power Supply | Yes | No | No | No |
| TAA Compliant | Yes | No | No | No |
| OPS Slot | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What makes the ERO-LCD glass different from standard tempered glass?
- Planar ERO-LCD uses an optical bonding process that eliminates the air gap between the glass and the LCD panel. This reduces internal reflection and improves contrast, which is especially noticeable in high-ambient-light public environments. The Gorilla Glass formulation also provides greater impact resistance than standard cover glass.
- Can this display be used in portrait orientation?
- Yes. The URX100-ERO-T supports both landscape and portrait mounting orientations, broadening its application in digital signage and wayfinding installations.
- Does the OPS slot support standard Intel OPS modules?
- Yes. The OPS slot follows the standard Open Pluggable Specification and is compatible with commercial OPS compute modules from Intel and other vendors, allowing embedded PC functionality without external cabling.
- Is the touch input compatible with Windows and macOS?
- Yes. The projected capacitive touch layer is compatible with Windows 10, Windows 11, macOS, and Linux operating systems.
- How does the redundant power supply benefit the installation?
- In mission-critical environments where display downtime is not acceptable, the redundant power supply allows the display to continue operating even if one power supply module fails, avoiding the need for an immediate service call.
