Planar UltraRes W Series URW105-ERO-T 105" UHD 5K 21:9 Ultra-Wide Touchscreen Commercial Monitor - 998-3425-00

Planar SKU: 998-3425-00
No reviews
Price:
$24,500.00

Description

New Product. Available to ship in August.

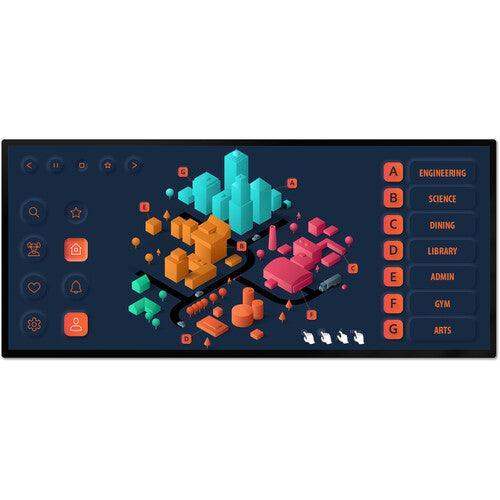

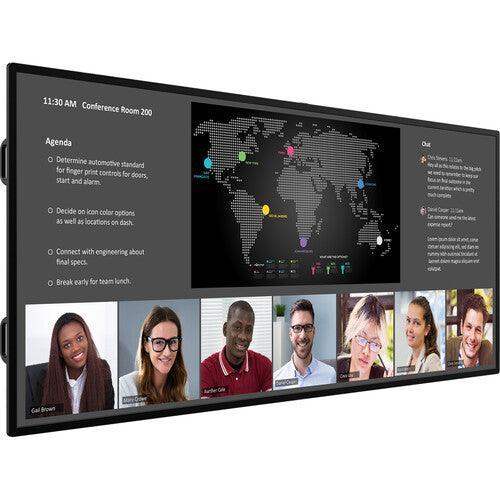

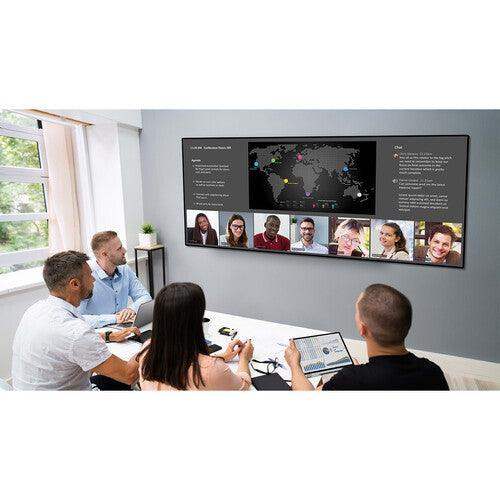

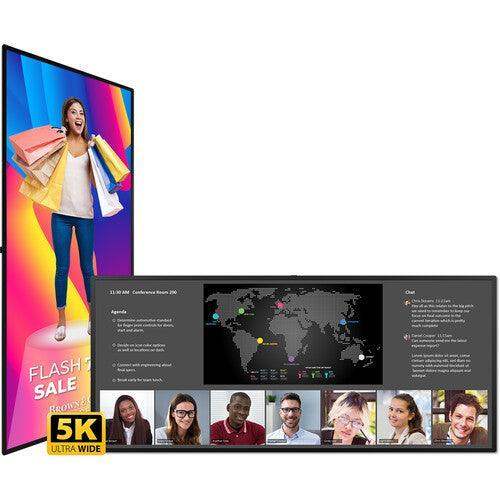

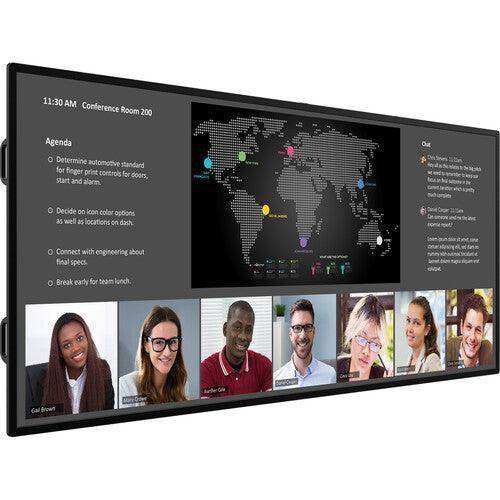

Planar URW105-ERO-T is a 105" 5K (5120 x 2160) ultra-wide format LCD touch screen display ideally sized to suit the most popular unified communications and video collaboration platforms such as Microsoft Teams with its Front Row layout. Its 21:9 aspect ratio is excellent for native cinematic video playback. It features Planar ERO-LCD protective glass and pin-point accurate projected capacitive touch that supports up to 50 simultaneous touch points. Its commercial-grade construction offers 24x7 reliability and remote monitoring facilitates email alerts if an unexpected event occurs. View two sources simultaneously with dual layout or Picture-in-Picture. The display is TAA-Compliant.

  • 5K (5120 x 2160) Native Resolution
  • HDR10 Compatible
  • LED LCD with Projected Capacitive Touch
  • Crestron & Q-SYS Compatible
  • 2 x DisplayPort | 2 x HDMI | 1 x USB-C
  • 1200:1 Static Contrast Ratio
  • 450 nits Brightness | 25% Haze Level
  • Digital Signage Support
  • 24/7 Duty Cycle | Portrait & Landscape
  • TAA Compliant

Planar Systems URW105-ERO-T Specs

 Display
Size 105"
Panel Type LCD
Aspect Ratio 21:9
Display Orientation Landscape, Portrait
Resolution 5120 x 2160
Maximum Brightness 450 nits / cd/m2
Lighting System Direct LED
HDR Compatibility HDR10
Contrast Ratio 1200:1
Dynamic Contrast Ratio 33,000:1
Response Time 8 ms
Refresh Rate 60 Hz
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Color Gamut 88% NTSC
Viewing Angle (H x V) 178 x 178°
Screen Area 96.4 x 40.7" / 2449.2 x 1033.6 mm
Dot Pitch 0.479 x 0.479 mm
Pixels Per Inch (ppi) 53 ppi
Finish Anti-Glare / Matte, Anti-Friction
Surface
Touchscreen Technology Projected Capacitive
Multi-Touch Points 50
Haze Level 25%
Video
TV Tuner No
Connectivity
Inputs 2 x DisplayPort (1.4)
2 x HDMI (2.1)
Outputs 1 x DisplayPort
1 x 1/8" / 3.5 mm (Analog Audio)
1 x TOSLINK Optical (Digital Audio)
HDCP Support Yes, Version 2.2
Wireless None
NFC No
USB I/O 1 x USB-C Unspecified Version (Audio/Video)
4 x USB-A Unspecified Version (Audio/Photo/Video/Control/Power)
2 x USB-B Unspecified Version (Touchscreen Control)
1 x USB-A Unspecified Version (Service)
Ethernet I/O 1 x RJ45 (Unspecified Ethernet)
Other I/O 1 x 1/8" / 3.5 mm IR Input
1 x DE-9/DB-9 Serial (RS-232C) Control Input
Number of OPS/Expansion Slots 1
Ambient Light Sensor Yes
Multi-Input Support (PIP/PBP) Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Speaker
Built-In Speakers Yes, 2 x 15 W
Speaker Configuration 2-Channel
Hardware
OS Compatibility Windows 10
Windows 11
macOS
Linux
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Media Card Reader None
Built-In Mic No
Supported File Formats
Supported Languages English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 85% (Non-Condensing)
Operating Altitude 9842' / 3000 m
Electrical
Power Consumption Typical: 372.0 W
Standby: < 0.5 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Type Internal
General
Certifications FCC Class A, CE
*as per Manufacturer
Mounting-Hole Pattern 1000 x 600 mm
Lighting Lifespan 30000 Hours
Material of Construction Glass, Metal
IK Rating None
Lock Slot No
Bezel Thickness 2.5 mm
Duty Cycle 24 Hours / 7 Days
Dimensions 99.1 x 43.8 x 3.6" / 2517.5 x 1112 x 90.6 mm
Weight 218.3 lb / 99 kg
