Planar URP98-ERO-T 98" diagonal, UHD, D-LED backlight, 450 nit brightness, 24x7 reliability, multi-source viewing, speakers, landscape and portrait, ERO with Soda-lime Glass, 20 pt IR touch - 998-3264-00

New product. Available to ship in August. Replaces QE9850T.

Planar UltraRes P Series large format LCD displays are ideal for applications ranging from dynamic digital signage to collaborative meeting spaces with 4K resolution and commercial-grade construction to suit 24x7 use. View up to four sources simultaneously in quad layout and receive remote monitoring email alerts if an unexpected event occurs. Touch models are available with Planar ERO-LCD (Extended Ruggedness and Optics ) protective glass and multi-point interaction. Displays are TAA Compliant.

Specs
Product Name URP98-ERO-T
Planar Part Number 998-3264-00
Protective Glass ERO optically-bonded glass technology, Soda-lime Glass, 3mm AR
Touch Technology IR touch: 20 points
OS Compatibility Windows 10, 11, Mac OSX and Linux
Display Resolution Ultra HD (3840 x 2160)
Screen Size 98 in. (diagonal)
Aspect Ratio 16:9
Display Technology Direct-lit LED LCD
Display Active Area TBD" (TBDmm) x TBD" (TBDmm)
Viewing Angle (typ) 178°
Backlight LED
Backlight life (1/2
brightness)
60,000 hrs (typ)
Brightness (w/protective
glass)
450 nits
Response Time (typ) 8 ms
Frame Rate 60Hz
Contrast Ratio (typ) 5000:1
Contrast Ratio - Dynamic TBD
Pixel Pitch 0.5622 mm
Color Gamut 72% NTSC
Display Color >1 billion colors. Full 10 bit data path
External Connections DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2,
USB-B (for touch controller)
Modes 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x
1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz;
1080i @ 50/60 Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface
Cabinet Dimensions (W x H
x D)
87.5" x 50.3" x 3.9" (2221.0mm x 1276.0mm x 98.9mm)
Cabinet Dimensions with
Handles (W x H x D)
87.5" x 50.3" x 4.2" (2221.0mm x 1276.0mm x 106.9mm)

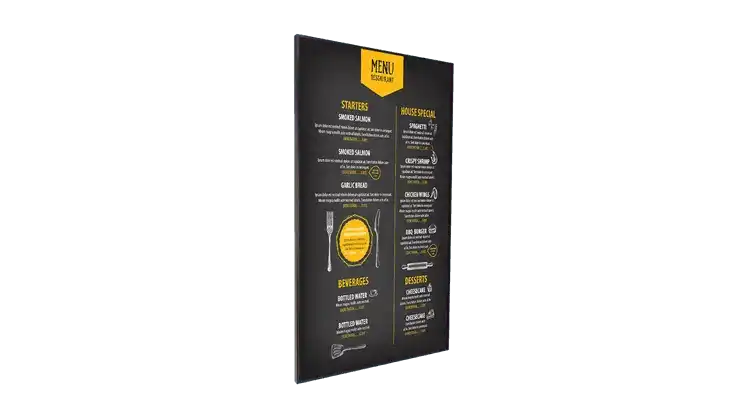

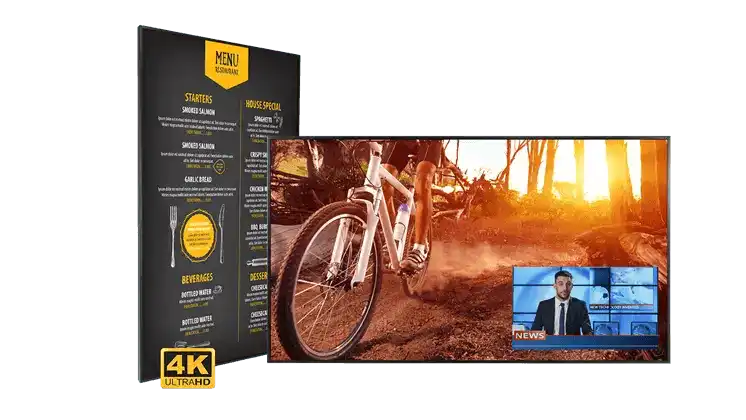

Orientation Landscape/Portrait
Bezel Width 0.6" (15.2mm)
Display Edge to Active
Area
1.2” (31.3mm) Right, Left; 1.2” (31.0mm) Top, Bottom
Weight 278 lbs (126.1 kg)
Audio Input PC Line In
Audio Output PC Line Out, S/PDIF
Speakers 10W x 2 built-in
Enclosure Metal
Mounting VESA: 600 x 400mm. External device mounting: 100 x 100mm
Fanless Yes
Line Voltage 100-240V; 50/60Hz
Power Consumption (typ) 273W (standby: <0.5W)
AC Output Current (max) 3A
Operating Temperature 0° to +40°C (32° to 104°F) at up to 3000m
Humidity 20 - 85% RH (non-condensing)
Options / Features MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for
third-party accessories

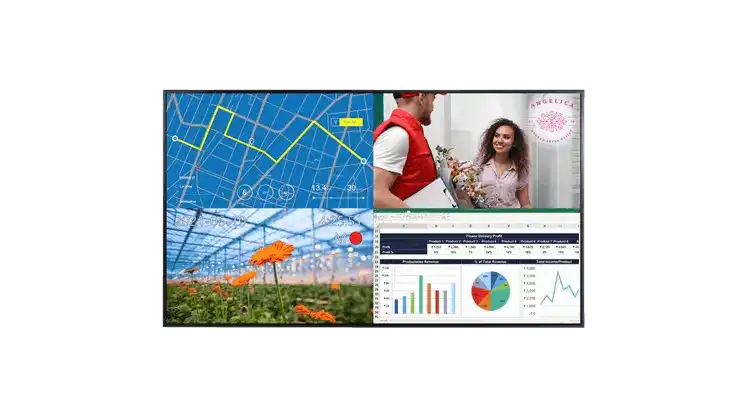

Multi-Source Views PiP, Dual, Triple, Quad
Approvals FCC Class A, CE, cTUVus, RoHS
ENERGY STAR Certified No
TAA Compliance Yes
Security No WiFi, no Android O/S, signed and encrypted firmware
Warranty 3 years Advance Exchange
Recommended Usage Up to 24x7 operation
In the Box URP98-ERO-T display, US power cord - 1.8m, HDMI cable 2m, USB (A to B)
cable, IR sensor, remote control, QuickStart Guide
UPC 810069811048
