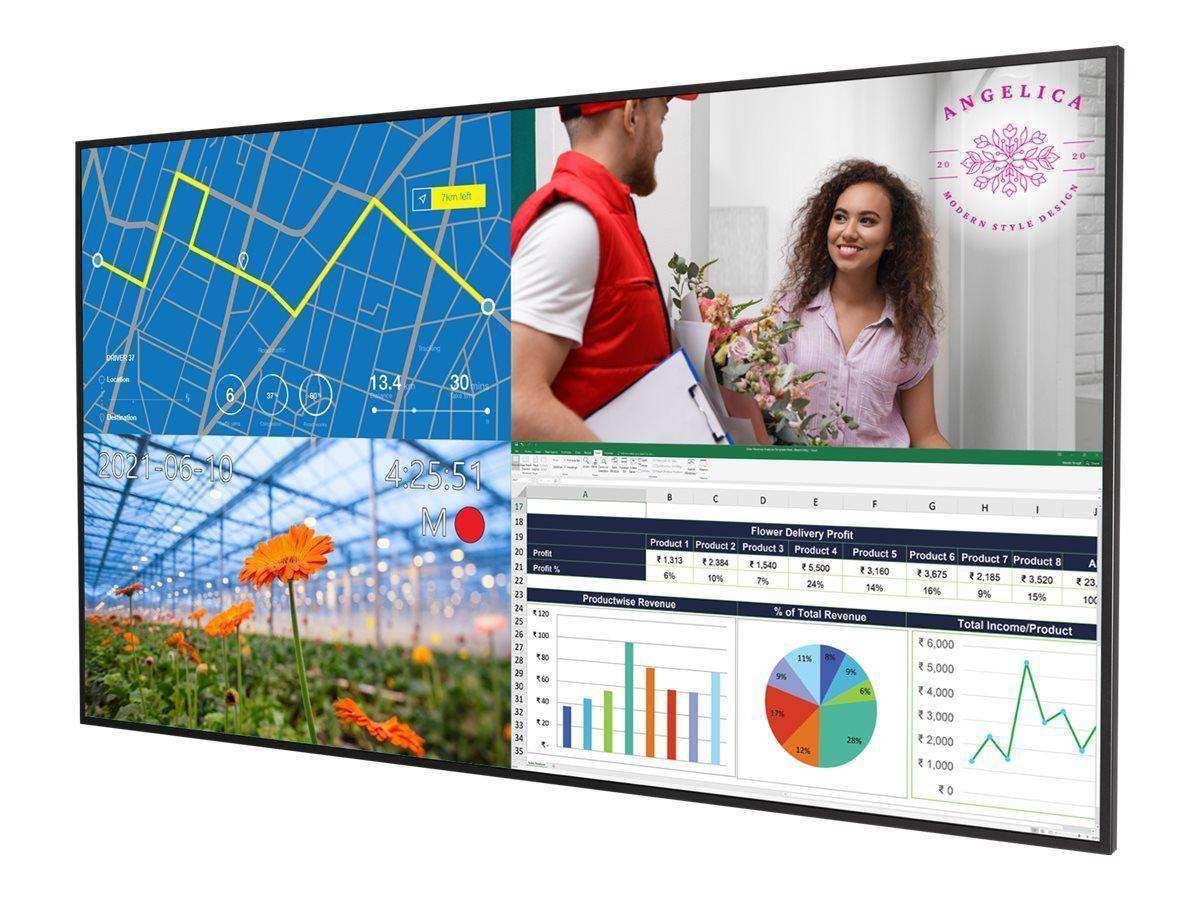

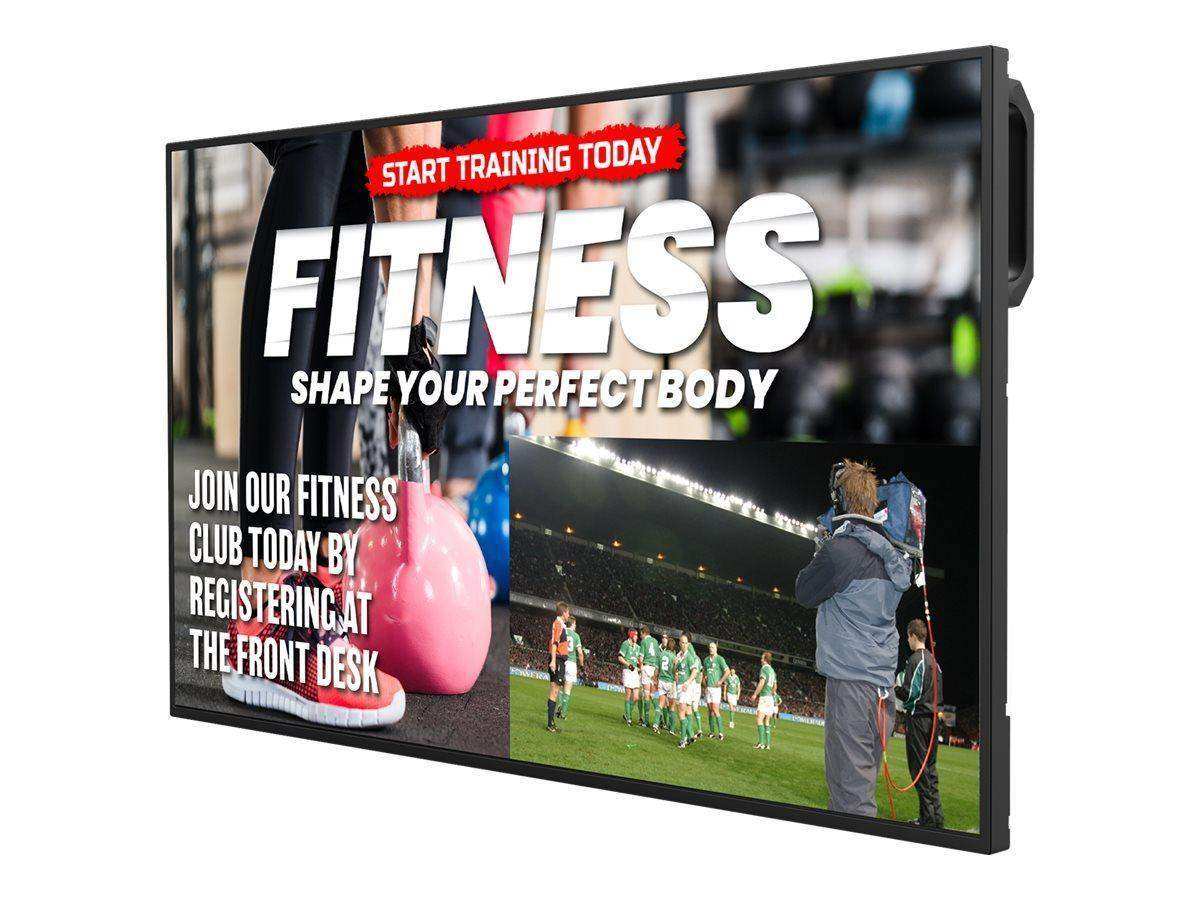

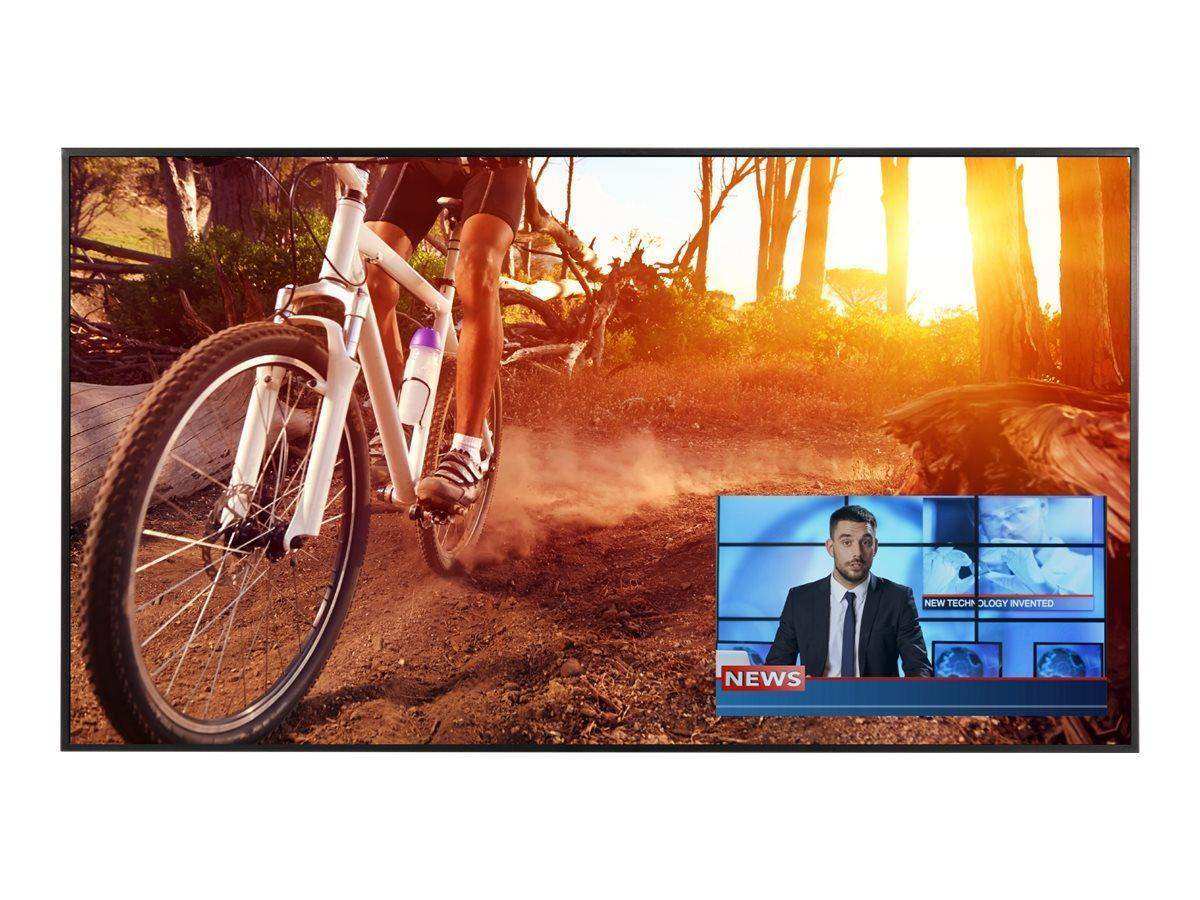

Planar URP75 UltraRes P Series 75" 4K Ultra HD LED-LCD Display - 998-2653-01

Planar SKU: 998-2653-01
No reviews
Price:
$6,959.00

Description

It is designed for applications ranging from dynamic digital signage to collaborative meeting spaces. Among the applications for the Planar URP75 are applications ranging from dynamic digital signage to collaborative meeting spaces. It supports native 4K resolution at up to 60Hz via HDMI 2.0 and DisplayPort 1.2, enabling smooth motion video and mouse tracking. Users can view up to four sources simultaneously and receive remote monitoring alerts via email when a designated event occurs. For precise image control, adjustments can be made within each of the four zones allowing users to optimize the picture quality at the source level. Operating without fans, it provides whisper quiet operation and reduced points of failure. The URP75 is ENERGY STAR Certified.

Planar® UltraRes™ P Series large format LCD displays are ideal for applications ranging from dynamic digital signage to collaborative meeting spaces with 4K resolution and commercial-grade construction to suit 24x7 use. View up to four sources simultaneously and receive remote monitoring email alerts if an unexpected event occurs. Multi-point projected capacitive touch models are available, as well as Planar® ERO-LCD™ (Extended Ruggedness and Optics™) protective glass. Displays are TAA Compliant.

Specification: Detail:
Product Name URP75
Planar Part Number 998-2653-01
Display Resolution Ultra HD (3840 x 2160)
Screen Size 75 in. (diagonal)
Aspect Ratio 16:9
Display Technology Direct-lit LED LCD
Haze 25 %
Surface Treatment AG
Display Active Area 64.9” (1649.7mm) x 36.5” (927.9mm)
Viewing Angle (typ) 178°
Backlight LED
Backlight life (1/2 brightness) 50,000 hrs (typ)
Brightness (typ) 500 nits
Response Time (typ) 8 ms
Frame Rate 60Hz
Contrast Ratio (typ) 1200:1
Pixel Pitch 0.4296 mm
Color Gamut 72% NTSC
Display Color >1 billion colors. Full 10 bit data path
External Connections DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2
Modes 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface
Cabinet Dimensions (W x H x D) 66.3" x 37.9" x 3.6" (1684.0mm x 962.0 x 91.2mm)
Cabinet Dimensions with Handles (W x H x D) 66.3" x 37.9" x 3.6" (1684.0mm x 962.0 x 91.2mm)
Orientation Landscape/Portrait
Bezel Width 0.6" (14.9mm)
Display Edge to Active Area 0.7" (16.9mm)
Weight 92 lbs (42 kg)
Audio Input PC Line In
Audio Output PC Line Out, S/PDIF
Speakers 10W x 2 built-in
Enclosure Metal
Mounting VESA: 600 x 400mm
Fanless Yes
Line Voltage 100-240V; 50/60Hz
Power Consumption (typ) 195W (standby: <0.5W)
AC Output Current (max) 3A
Operating Temperature 0° to +40°C (32° to 104°F) at up to 3000m
Humidity 20 - 85% RH (non-condensing)
Options / Features MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for third-party accessories
Multi-Source Views PiP, Dual, Triple, Quad
Approvals FCC Class A, cTUVus, RoHS
ENERGY STAR Certified Yes
TAA Compliance Yes
Security No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers
Warranty 3 years Advance Exchange
Recommended Usage Up to 24x7 operation
In the Box URP75 display, US power cord - 1.8m, HDMI cable 2m, IR sensor, remote control, QuickStart Guide
UPC 8 10069 81079 9
