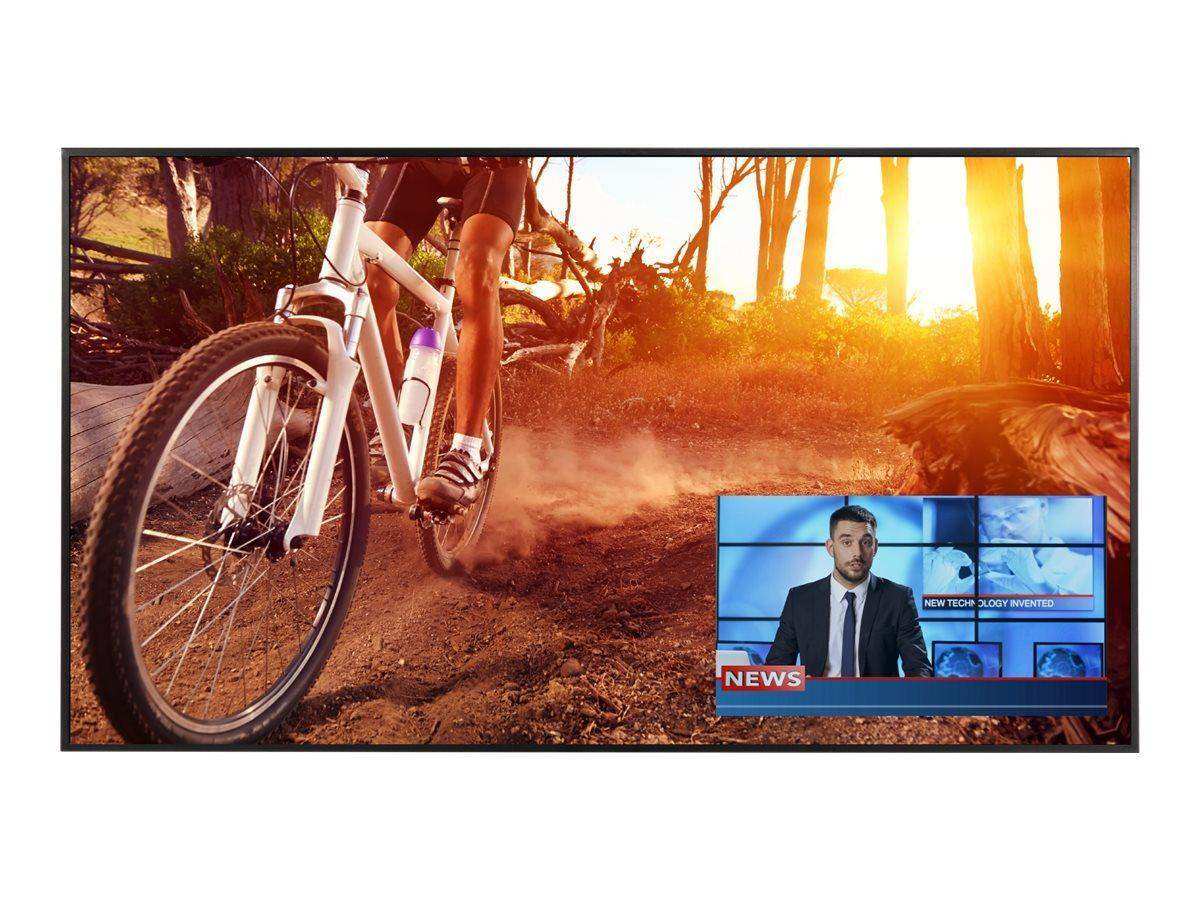

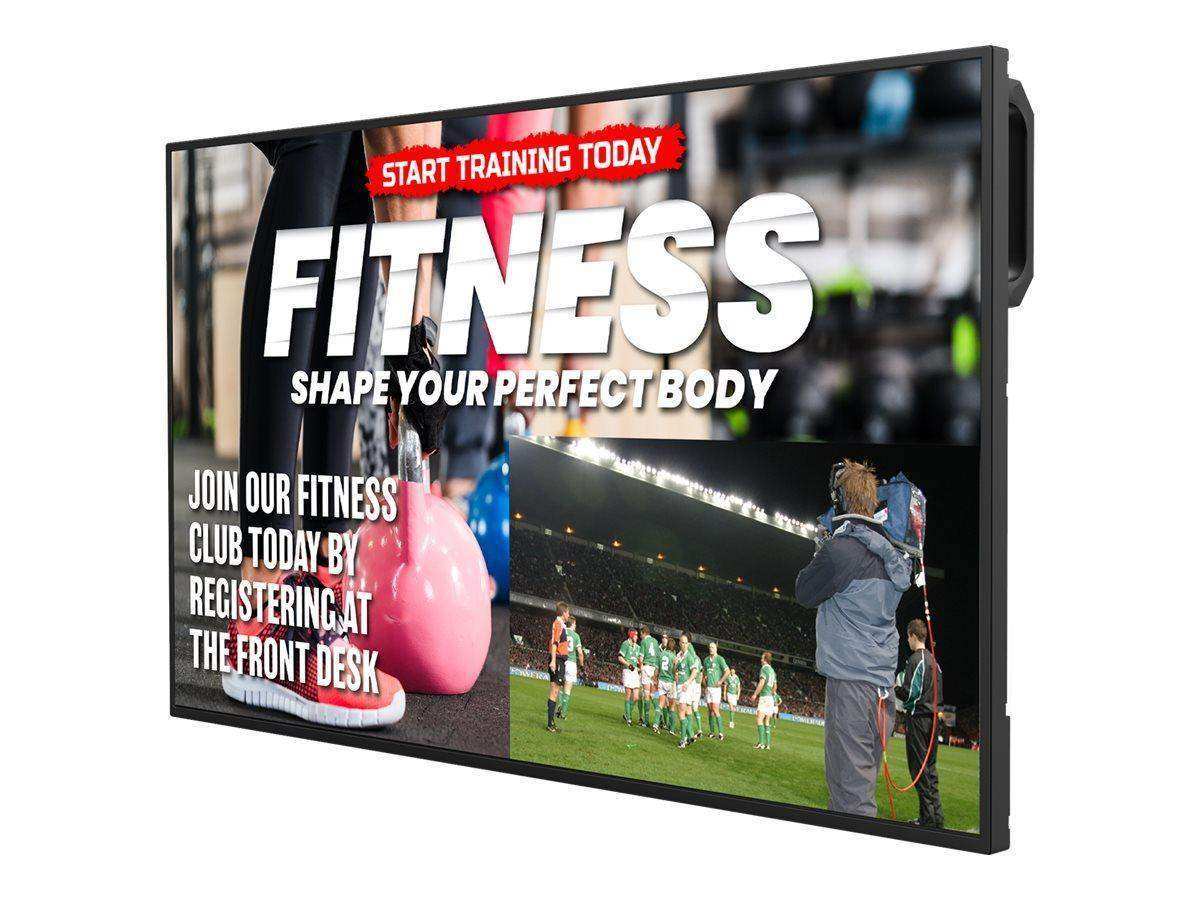

Planar URP55-T UltraRes P Series 55" 4K Ultra HD LED-LCD Touchscreen Display - 998-2890-00

Save 7%
Planar SKU: 998-2890-00
No reviews
Price:
$2,985.00 $3,207.00

Description

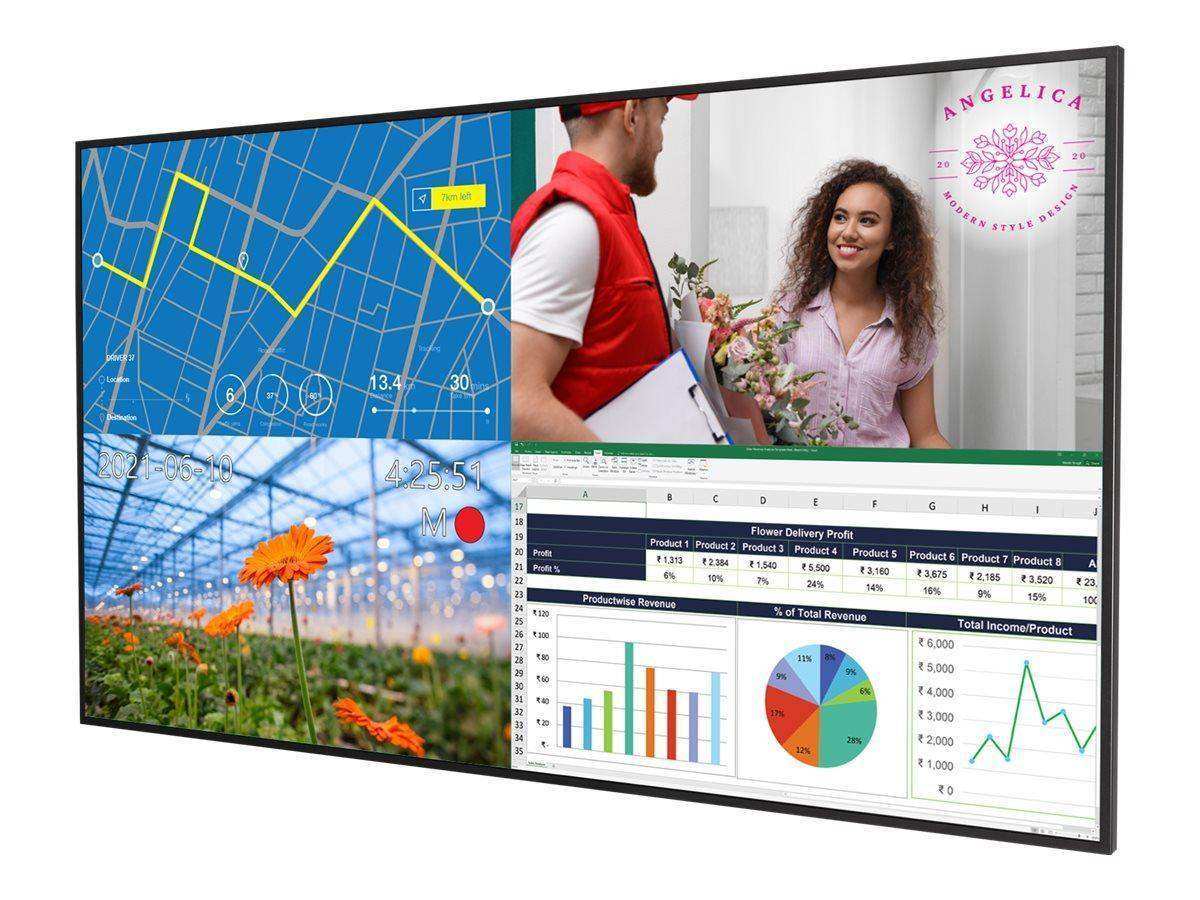

The Planar URP55-T is a 55" 4K (3840 x 2160) Touch Screen LCD display that is ideal for applications ranging from dynamic digital signage to collaborative meeting spaces. It supports native 4K resolution at up to 60Hz via HDMI 2.0 and DisplayPort 1.2, enabling smooth motion video and mouse tracking. Users can view up to four sources simultaneously and receive remote monitoring alerts via email when a designated event occurs. For precise image control, adjustments can be made within each of the four zones allowing users to optimize the picture quality at the source level. Operating without fans, it provides whisper quiet operation and reduced points of failure.
  • Touch Screen 55" Diagonal Class LED-backlit LCD display
  • digital signage
  • 4K UHD (2160p) 3840 x 2160
  • edge-lit
  • TAA Compliant
  • Bezel Width (Top): 0.40"
  • Bezel Width (Bottom): 0.50"
  • Bezel Width (Left): 0.40"
  • Bezel Width (Right): 0.40"
  • Number of Screens: 1
  • Screen Size: 55"
  • Display Screen Type: LCD
  • Display Resolution: 3840 x 2160
  • Backlight Technology: Edge LED
  • Brightness: 500 Nit
  • Color Gamut: 72% NTSC
  • Ethernet: Yes
  • HDMI: Yes
  • DisplayPort: Yes
  • Serial: Yes
  • Input Voltage: 120 V AC
  • Input Voltage: 230 V AC
  • VESA Mount Standard: 300 x 300
  • Height: 27.9"
General Information
Category Flat panel displays
Description Planar UltraRes P Series URP55-T - 55" Diagonal Class LED-backlit LCD display - interactive - 4K UHD (2160p) 3840 x 2160 - edge-lit - TAA Compliant
Manufacturer Planar Systems
MSRP $3,207.00
UNSPSC 43211902
Main Specifications
Dimensions & Weight / Depth 6.88 cm
Dimensions & Weight / Height 73.42 cm
Dimensions & Weight / Weight 34.7 kg
Dimensions & Weight / Width 126.38 cm
Display / Diagonal Size 55 in
Header / Brand Planar
Miscellaneous / Product Color Black
Service & Support / Type 3-year warranty
Television / Brightness 450 cd/m²
Television / Diagonal Size 55 in
Television / Diagonal Size (cm) 140 cm
Television / Display Format 4K UHD (2160p)
Television / Image Aspect Ratio 16:9
Television / Image Contrast Ratio 1100:1
Television / PC Interface
  • DisplayPort
  • VGA (HD-15)
Television / Resolution 3840 x 2160
Television / Type LED-backlit LCD flat panel display
Television / Viewing Angle 178°
Audio System
Output Power / Total 20 Watt
Speaker System 2 speakers
Speakers 2 x main channel speaker - 10 Watt
Connections
Connector Type
  • RS-232
  • LAN
  • 2 x DisplayPort input
  • 4 x HDMI input
  • VGA input
  • SPDIF output
  • Audio line-in
  • Audio line-out
Dimensions & Weight Details
Dimensions & Weight Details Panel with handles - 126.38 cm x 7.78 cm x 73.42 cm
Display
Additional Features Quad Screen, Dual Screen, Projected Capacitive Touch (PCT), 10-bit support, picture in picture (no tuner), designed for 24/7 operation, CEC Support
Backlight Life 30,000 hour(s)
Brightness 450 cd/m²
Coating Anti-glare, 3 mm glass
Color Support 1000000000 colors
Commercial Features Metal enclosure
Display Format 4K UHD (2160p)
Frame Rate & Enhancement Technology 60 Hz Frame Rate
Image Aspect Ratio 16:9
Image Contrast Ratio 1100:1
LCD Backlight Technology Edge-lit LED
Operation Hours / Days 7 / 7
Pixel Pitch 0.315 mm
Resolution 3840 x 2160
Response Time 8 ms
Touchpoints Qty 50
Viewing Angle 178°
Viewing Angle (Vertical) 178°
Environmental Parameters
Humidity Range Operating 20 - 85% RH (non-condensing)
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Environmental Standards
ENERGY STAR Certified Yes
General
Commercial Use Yes - interactive
Cooling System Fanless
Depth 6.88 cm
Design Fanless Design, 27mm bezel (left/right), 27.1mm bezel (top/bottom)
Diagonal Class 55"
Dimensions Without handles
HDMI Ports Qty 4 ports
Height 73.42 cm
Modes Portrait mode, landscape mode
PC Interface VGA (HD-15), DisplayPort
Picture Enhancements 72% Color Gamut NTSC
Power Consumption Operational 85 Watt
Product Type LED-backlit LCD flat panel display
Sensors Ambient light sensor (ALS)
TV Tuner No tuner
TV Tuner Presence No
Video Interface HDMI
Weight 34.7 kg
Width 126.38 cm
Manufacturer Warranty
Service & Support Limited warranty - advanced exchange program - 3 years
Miscellaneous
Cables Included
  • HDMI cable
  • IR cable
  • USB-A to USB-B cable
Compliant Standards FCC Class A certified, RoHS, cTUVus, CEC, DisplayPort 1.2, HDCP 2.2
Included Accessories Stylus, cable clips, TouchMark license key
TAA Compliant Yes
Network & Internet Multimedia
Connectivity LAN
Power
Input Voltage AC 100-240 V (50/60 Hz)
Power Consumption Stand by 0.5 Watt
Power Device Power supply
Remote Control
Type Remote control
Stands & Mounts
Flat Panel Mount Interface 300 x 300 mm
VESA Compatibility Yes
Video Features
Input Video Formats 480p, 720p, 1080i, 1080p, 576p
