Planar URP49 UltraRes P Series 49in diagonal, UHD, E-LED backlight, 500 nit brightness - 998-2887-00
Planar URP49 UltraRes P Series 49in diagonal, UHD, E-LED backlight, 500 nit brightness - 998-2887-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar URP49 UltraRes P Series 49in diagonal, UHD, E-LED backlight,...
Product Overview

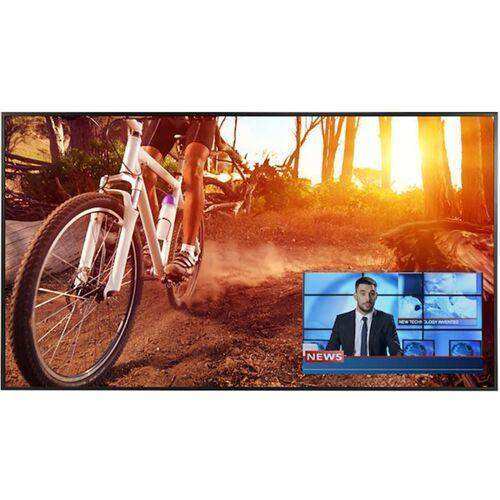

The Planar URP49 is a 49-inch 4K UHD commercial display from the UltraRes P Series, delivering 500-nit E-LED edge-lit backlight performance with native 3840x2160 resolution at 60Hz. Part number 998-2887-00, it supports projected capacitive touch (50 touch points), 4-source quad simultaneous viewing, fanless operation, and 24/7 duty cycle. TAA-compliant and ENERGY STAR certified, the URP49 is suited for corporate collaboration spaces, digital signage, and networked monitoring environments requiring compact form factor and multi-source display capability.
Product Description
The URP49 delivers the core UltraRes P Series capability set in a 49-inch diagonal format — the most compact panel in the lineup. The edge-lit E-LED backlight achieves 500-nit brightness (noted as 450 cd/m² typical in some markets) in a slim profile suited for tight installations. The 50-point PCAP touch capability supports annotation, collaboration, and interactive applications. Quad-screen simultaneous source display with per-zone picture optimization enables monitoring of four independent sources without switching. Remote monitoring alerts can be configured to send email notifications on designated display events. Fanless operation reduces acoustic output and points of failure. HDMI 2.0 x4, DisplayPort x2, and VGA accommodate a full range of sources. The all-metal enclosure provides durability for demanding environments. The URP49 includes a TouchMark license key, stylus, and cable clips.
Key Features
- 49-inch 4K UHD (3840x2160) at 60Hz, edge-lit E-LED backlight, 500 nits
- 50-point projected capacitive (PCAP) touch with TouchMark license

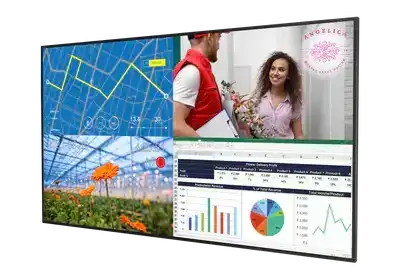

- Quad-screen simultaneous source display with per-zone picture control
- Remote monitoring with email alert notification on display events
- Fanless design for silent operation and reduced failure points
- HDMI 2.0 x4, DisplayPort x2, VGA for broad source compatibility
- All-metal enclosure for commercial durability
- TAA-compliant, ENERGY STAR certified, 24/7 commercial duty cycle
- 1100:1 contrast ratio, 72% NTSC color gamut, 30,000-hour backlight life
- VESA 300x300mm, landscape and portrait mounting
Typical Applications
- Corporate meeting rooms and huddle spaces requiring multi-source touch collaboration
- Network operations centers with quad-view monitoring requirements
- Trading floors and financial data monitoring environments
- Campus digital signage and wayfinding with 24/7 operation
- Healthcare nursing stations and patient monitoring displays
- Government and enterprise control rooms requiring TAA compliance
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 998-2887-00 |
| Screen Size | 49 in. diagonal |
| Resolution | 3840 x 2160 (4K UHD) |
| Display Technology | Edge-lit E-LED backlight LCD |
| Brightness | 500 nits (450 cd/m² typical) |
| Contrast Ratio | 1100:1 |
| Response Time | 8 ms |
| Frame Rate | 60 Hz |
| Touch Technology | Projected Capacitive (PCAP), 50-point |
| Viewing Angle | 178° H/V |
| Color Gamut | 72% NTSC, 10-bit |
| Pixel Pitch | 0.2796 mm |
| Video Inputs | HDMI 2.0 x4, DisplayPort 1.2 x2, VGA |
| Control | RS-232, LAN, IR, CEC |
| Multi-Source Viewing | Dual and quad (4-up) simultaneous |
| Remote Monitoring | Email alerts on display events |
| Speakers | 2x 10W (20W total) |
| Enclosure | Metal |
| Mounting | VESA 300x300mm, landscape/portrait |
| Dimensions (WxHxD) | 44.4" x 25.9" x 2.7" |
| Weight | 63.05 lbs |
| Power Consumption | 79W typical, 0.5W standby |
| Backlight Life | 30,000 hours |
| Certifications | TAA, FCC Class A, cTUVus, RoHS, ENERGY STAR, DisplayPort 1.2, HDCP 2.2 |
| Duty Cycle | 24/7 |
| Warranty | 3 years Advance Exchange |
Competitor Comparison
| Feature | Planar URP49 | Samsung QB49R | LG 49UH7J | NEC ME491 |
|---|---|---|---|---|
| Resolution | 4K UHD | 4K UHD | 4K UHD | 4K UHD |
| Touch Points | 50-pt PCAP | Not standard | Not available | Not standard |
| Multi-Source Quad View | Yes | No | No | Yes |
| Metal Enclosure | Yes | No | No | Yes |
| TAA Compliant | Yes | No | No | Yes |
| Remote Alerts | Yes (email) | Limited | Limited | Yes |
Frequently Asked Questions
- How many touch points does the URP49 support?
- The URP49 supports up to 50 simultaneous projected capacitive touch points, well above the 20-point standard on most commercial displays. This enables complex multi-touch gestures and simultaneous multi-user interaction in collaborative environments.
- Can the URP49 display four sources simultaneously?
- Yes. The built-in quad-view processing allows simultaneous display of up to four independent sources in a 2x2 layout. Individual zones can be independently adjusted for picture quality, making it well-suited for control room and trading desk monitoring.
- Does the URP49 support remote monitoring and alerts?
- Yes. The URP49 can send email alerts to administrators when designated display events occur — such as signal loss or power state changes — enabling proactive management of deployed units without physical inspection.
- Is the URP49 compatible with existing HD sources?
- Yes. The URP49 accepts 480p, 576p, 720p, 1080i, and 1080p signals in addition to native 4K UHD, upscaling lower-resolution content to the 3840x2160 panel.
- Is the URP49 TAA compliant?
- Yes. The URP49 is TAA (Trade Agreements Act) compliant, qualifying it for U.S. federal, state, and institutional procurement programs.
