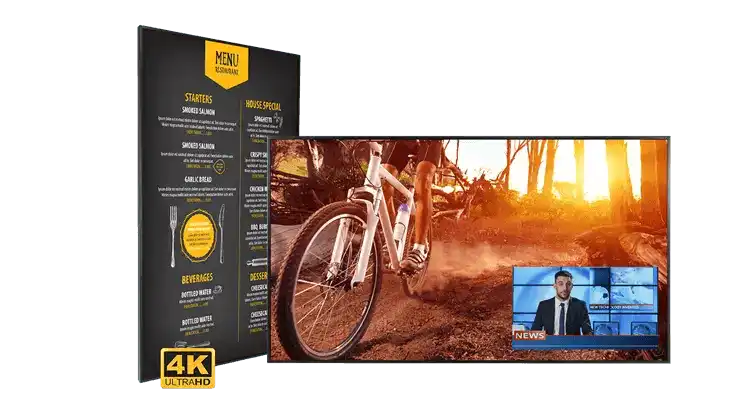

Planar URP85-ERO-T UltraRes P Series 85" 4K LCD Touch Display - 4K - for digital signage / interactive communication - TAA Compliant - 998-2656-01

Product Overview

The Planar URP85-ERO-T is a commercial-grade, TAA-compliant 85-inch 4K UHD LCD touchscreen display with ERO-LCD protective glass and 20-point simultaneous projected capacitive touch, built for interactive corporate, healthcare, education, and government environments. At 24/7 operation rating with quad-source simultaneous viewing and remote monitoring, it delivers enterprise AV functionality in a single panel with native touch integration—no overlay hardware required. TAA compliance and ERO durability make it a strong specification for GSA procurement and high-traffic public installations. Currently available at a reduced price from its compare-at value.

Product Description

The Planar URP85-ERO-T (SKU: 998-2656-01) is an 85-inch 4K (3840 x 2160) LCD display from the UltraRes P Series with fully integrated 20-point simultaneous projected capacitive (PCAP) touch and Planar ERO-LCD (Extended Ruggedness and Optics) protective glass. The ERO-LCD glass bonds directly to the LCD surface, eliminating the air gap that causes reflections and contrast degradation while adding physical protection against the contact and cleaning cycles typical in interactive public and corporate environments. Unlike external overlay touch systems, the integrated PCAP approach preserves optical clarity, reduces depth profile, and avoids alignment drift over time.

Native 4K at up to 60Hz is supported via HDMI 2.0 and DisplayPort 1.2 with HDCP 2.2 compliance. Up to four simultaneous input sources can be displayed in quad layout with per-zone image adjustment. Remote monitoring email alerts notify administrators of designated operational events. The 24/7 duty cycle and enterprise-grade construction make it suitable for continuous-use interactive kiosks, collaboration centers, and command environments. TAA compliance qualifies it for government procurement under applicable purchasing programs.

Key Features

• 85-inch 4K UHD (3840 x 2160) LCD display from the UltraRes P Series
• Fully integrated 20-point simultaneous projected capacitive (PCAP) touch
• Planar ERO-LCD protective glass for high-traffic durability and improved optical performance
• Native 4K at 60Hz via HDMI 2.0 and DisplayPort 1.2 (HDCP 2.2)

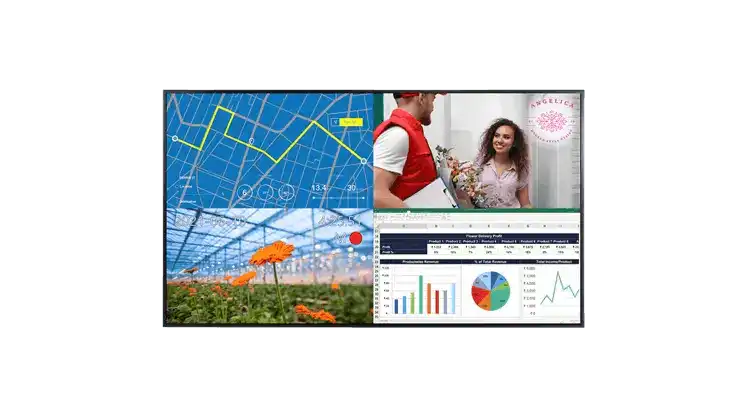

• Quad-source simultaneous viewing with per-zone image adjustment
• 24/7 continuous operation rating
• Remote monitoring with email alert notifications
• TAA-compliant for government and institutional procurement

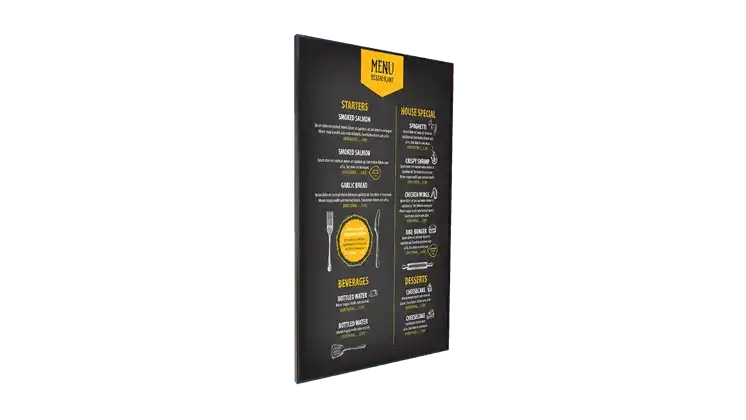

• Portrait and landscape orientation support

Typical Applications

• Interactive corporate meeting rooms and collaboration spaces
• Government agency interactive briefing and training rooms
• Healthcare interactive patient education and wayfinding kiosks
• Higher education classrooms and interactive lecture theaters
• Retail interactive product demonstrations and self-service kiosks
• Public-facing touch information displays in airports and transit facilities
• Command and control rooms with multi-source interactive monitoring

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the touch point count on the URP85-ERO-T?

The URP85-ERO-T supports 20 simultaneous touch points using integrated projected capacitive (PCAP) technology, enabling multi-user collaborative annotation without the alignment issues of overlay-based touch additions.

What does ERO-LCD glass provide on the URP85-ERO-T?

ERO-LCD (Extended Ruggedness and Optics) glass bonds directly to the LCD panel, eliminating the air gap that degrades contrast and causes reflections, while protecting the panel from physical damage in high-traffic interactive environments.

Is the URP85-ERO-T TAA compliant?

Yes. It is fully TAA-compliant and eligible for procurement under GSA schedules and applicable government and institutional purchasing programs.

How many sources can be shown simultaneously?

Up to four simultaneous sources in quad layout, with independent per-zone image adjustment. Remote monitoring email alerts can be configured for designated operational events.

Is the URP85-ERO-T rated for 24/7 operation?

Yes. The display is engineered for continuous 24/7 use, making it suitable for interactive kiosks, control room touch panels, and always-on collaborative environments.

What is the difference between the URP85-ERO-T and the URX85-ERO-T?

Both are 85-inch 4K touch displays with ERO glass. The URX85-ERO-T belongs to the UltraRes X Series with 700 nits brightness, HDR, and a redundant power supply. The URP85-ERO-T belongs to the UltraRes P Series, which focuses on the same touch and ruggedness capabilities at a different price point without the redundant power supply.
