Planar UltraRes L Series 136" All-in-One LED Displays

Product Overview

The Planar UltraRes L Series 136" All-in-One LED Display (URL136-MFT) is a MicroLED display system purpose-built to replace large-format projection in meeting rooms, classrooms, and collaborative spaces. As a complete Planar UltraRes L all-in-one LED display, the URL136-MFT integrates the panel, on-board MediaPlex Plus processing, built-in speakers, 10-point IR touch, and five video inputs into a single wall-mounted unit powered from a standard 110V outlet. The 1.5625mm pixel pitch MicroLED surface produces Full HD 1920x1080 resolution at up to 800 nits with a 10,000:1 contrast ratio, and a sub-1ms response time that handles fast-moving video without motion blur. TAA compliant and backed by a 5-year warranty, this system is rated for up to 24/7 operation.

Product Description

The URL136-MFT uses a 4-in-1 MicroLED panel configuration across a 118.1" x 66.4" (3000mm x 1688mm) active display area. The MicroLED technology delivers a 100,000-hour LED lifetime at half brightness, significantly extending service intervals compared to lamp-based projectors or conventional LED displays. Color gamut covers 90% of the P3 color space with HDR10 support, and color temperature is adjustable from 3,000K to 12,000K via presets at 6500K, 9300K, and 12000K.

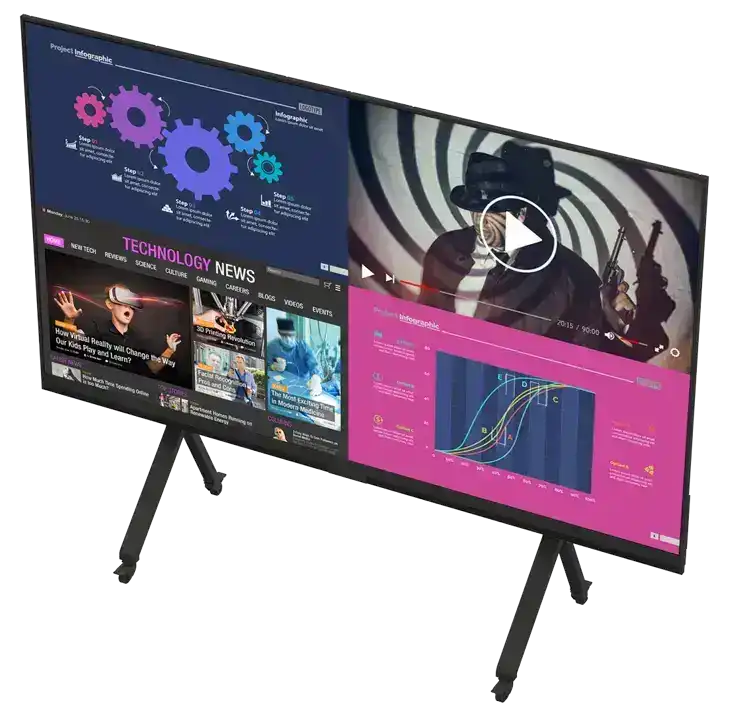

Five video inputs — DisplayPort 1.2, two HDMI 2.0 (HDCP 2.2), and two HDMI 1.4 — allow simultaneous display of up to four sources in PiP, Dual, Triple, or Quad view modes. The on-board 10W x 2 speaker system handles audio without an external amplifier in standard meeting room environments. Display control is available via IR remote, RS-232, LAN, HDMI-CEC, keypad, or web browser interface. Security features include no WiFi radio, no Android OS, and signed/encrypted firmware — relevant for government and regulated industry deployments.

Key Features

• 136" MicroLED Display — 4-in-1 MicroLED technology across a 118.1" x 66.4" active area.
• 1.5625mm Pixel Pitch — Fine pixel pitch for clear imaging in meeting rooms.
• 800 Nit Maximum Brightness — Sufficient output for rooms with controlled ambient light.
• 10,000:1 Contrast Ratio — Deep blacks with HDR10 support and 90% P3 color gamut.
• Sub-1ms Response Time — Eliminates motion blur for video and dynamic content.
• 100,000-Hour LED Lifetime — Long service life reducing total cost of ownership.
• On-Board MediaPlex Plus Processing — Integrated scaling and source management without an external processor.
• 10-Point IR Touch — Native multi-point touch for interactive presentation environments.
• Five Video Inputs — DP 1.2, 2x HDMI 2.0, 2x HDMI 1.4; supports four simultaneous sources.
• Built-In 10W x 2 Speakers — Integrated audio for standard meeting room use.
• 110V Single Outlet Power — Standard power supply without requiring dedicated electrical work.
• TAA Compliant — Suitable for U.S. government and federally funded procurement.
• 5-Year Warranty — Planar manufacturer warranty.
• No WiFi / Encrypted Firmware — Hardened security for IT-sensitive environments.

Typical Applications

• Corporate conference rooms replacing projector-screen setups
• University classrooms and lecture halls requiring touch interactivity
• Government agency briefing and conference rooms
• Healthcare facility command and coordination rooms
• Financial services trading floor and analysis rooms
• Broadcast and media production control rooms

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What makes MicroLED different from standard LED in this display?

MicroLED uses microscopic individual LED emitters per pixel subgroup rather than a backlit LCD panel. The result is superior per-pixel control, higher contrast, faster response time, and longer operating life versus LCD-based video walls.

Does this display need an external video processor?

No. The URL136-MFT includes on-board MediaPlex Plus processing that handles source selection, scaling, and multi-source layout without external hardware.

Can it run from a standard office electrical outlet?

Yes. The display is powered from a standard 110V outlet — no dedicated electrical circuit beyond a standard 15A or 20A outlet is required for most installations.

Is the touch functionality compatible with standard presentation software?

Yes. The 10-point IR touch is compatible with Windows 10, Windows 11, Mac OSX, and Linux, making it usable with standard presentation, whiteboarding, and collaboration applications.

What does the 5-year warranty cover?

Planar's 5-year warranty covers the display and included components. Contact Creation Networks or Planar directly for full warranty terms and service options.

How does this compare to a projector-screen setup of similar size?

The URL136-MFT eliminates throw distance requirements, ambient light sensitivity, lamp replacement costs, and the visual degradation associated with projection surfaces. It also adds native touch interactivity not available in standard projection setups.
