Planar UHD219" DirectLight Pro Series Complete, Full HD/UHD Diagonal Video Wall, w/WallDirector VC, wall mounts, trim, cables and spares - 998-3566-00

Planar SKU: 998-3566-00
No reviews

Sale price$286,675.00


Planar® DirectLight® Pro Series fine pixel pitch LED video walls deliver beautiful imagery to suit every indoor, fixed installation application. The TAA-Compliant, front-service video walls feature models with high bandwidth, reducing deployment complexity and maximizing overall efficiency. For wider processing and feature flexibility the displays are compatible with the
Planar® WallDirector™ Video Controller, Brompton Technology® and Colorlight.

Configure a Video Wall
If none of the pre-configured Planar DirectLight Pro Series video
walls is quite right for your space, the modular design lets you
create video walls with custom sizes, shapes and resolutions

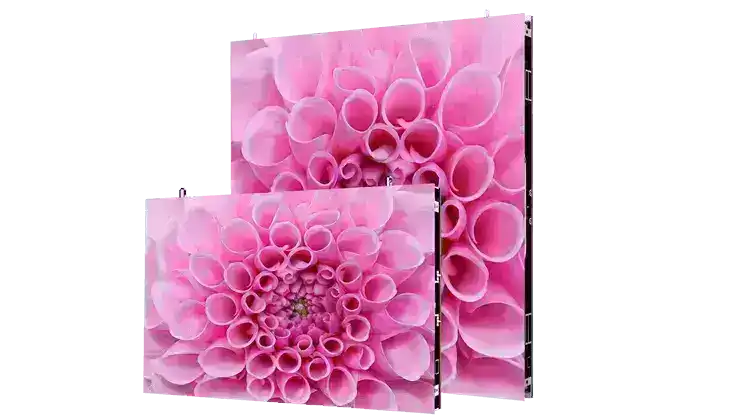

using 27” or 36” LED video wall cabinets.
Cabinets are available with 0.9, 1.2, 1.5, & 1.8mm pixel pitches.


  • LED Display Cabinets
  • Video Controller
  • Remote Control
  • Wall Mounts
  • Trim
  • Cables
  • Spare Modules

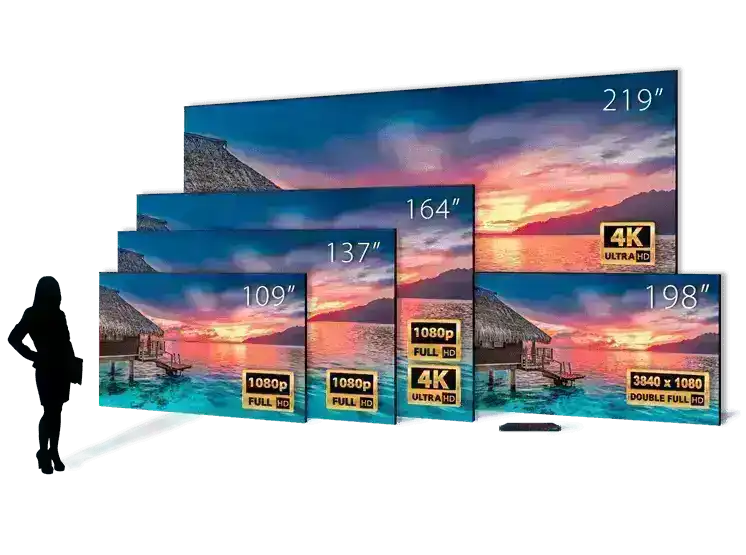

Available Sizes

  • 109"
  • 137"
  • 164"
  • 198"
  • 219"

▶ Complete 109”, 137”, 164”, 198”, & 219” sizes
▶ Customizable with 0.9, 1.2, 1.5, & 1.8mm pixel pitches
▶ 1,000-nit brightness
▶ Compatible with multiple controllers

Cabinet Model DLP 0.9 DLP 1.2 DLP 1.5 DLP 1.8
Pixel Pitch 0.945mm 1.26mm 1.575mm 1.89mm
Cabinet Resolution 27” - 640 x 360
36” - 640 x 720
27” - 480 x 270
36” - 480 x 540
27” - 384 x 216
36” - 384 x 432
27” - 320 x 180
36” - 320 x 360
Pixel Density 1,119,789/sq m | 10,4032/sq ft 629,882/sq m | 58,518/sq ft 403,124/sq m | 37,451/sq ft 279,947/sq m | 26,008/sq ft
Brightness Max, Calibration On 1,000cd/sq
Viewing Angle (50% Brightness) >170° Horizontal; >140° Vertical
Cabinet Size (W x H x D) 27” - 604.8 × 340.2 × 72.5mm | 23.81 x 13.39 x 2.85in
36” - 604.8 x 680.4 x 72.5mm | 23.81 x 26.78 x 2.85in
Weight (Cabinet) 27” - 6.94kg | 15.3lbs
36” - 13.2kg | 29.1lbs
Installation & Service Access Front Access, module removal. All internal electronics accessible

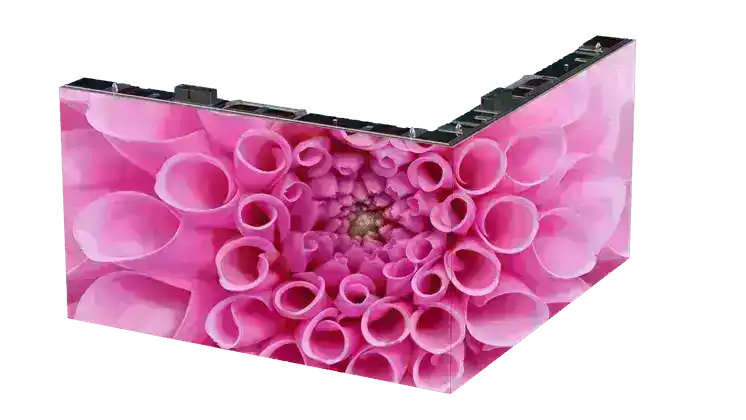

Supported Installation Types Standard Flat Wall | Forward Tilt: up to 10° | 90° exterior corners | Concave faceted curve
Controller Compatibility Planar WallDirector Video Controller | Optional: Brompton & Colorlight
Regulatory Compliance NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015
Warranty Planar EverCare Lifetime Limited Warranty (North America)
Planar is a trademark of Planar Systems, Inc. All other trademarks and service marks are property of their holders. Copyright © 2023 Planar Systems, Inc. All rights reserved. This document may not be copied
in any form without permission from Planar. Information in this document is subject to change without notice. 6/2023
For more information visit:
Specifications may vary by model and selected video controller. This specification assumed Planar WallDirector Video Controller
Complete Model HD109 HD137 HD164 DHD198 UHD164 UHD219
Display Technology Direct View LED
Display Resolution 1920 x 1080 3840 x 1080 3840 x2160
Display Size (Diagonal) 109in 137in 164in 198in 164in 219in
Display Size (W x H ) 7.9ft x 4.5ft
2419 x 1361mm
9.9ft x 5.6ft |
3024 x 1701mm
11.9ft x 6.7ft |
3629 x 2041mm
15.9ft x 4.5ft |
4839 x 1361mm
11.9ft x 6.7ft |
3629 x 2041mm
15.9ft x 8.9ft | 4839 x
Pixel Pitch 1.26mm 1.575mm 1.89mm 1.26mm 0.9mm 1.26mm
Brightness Max, Calibration On 1,000cd/sq
Contrast Ratio 7,000:1
Brightness Uniformity ≥97%
Color Uniformity ≥97%
LED Refresh Rate 3,000
Color Temperature Range (k) 3,000 - 10,000
Viewing Angle (50% Brightness) >170° Horizontal; >140° Vertical
Video Controller Size 1U rack-mounted controller, 19” rack
Video Input Resolution, Max 3840 x 2160 @ 60hz
Frame Rate 50, 60hz
Video Inputs 4x HDMI 2.0 (w/ HDCP 2.2)
HDR Support Yes
Control IR Remote Control, RS-232, USB, Network, Planar WallDirector Software
Installation & Service Access Front, Planar tool supplied, Module Locking feature
Runtime Duty Cycle (Hours/Day) 24 x 7
LED Lifetime, Typical 100,000hrs
Line Voltage 100-240V AC, 50/60hz
Power Consumption, Maximum 2,230 watts 3,445 watts 4,930 watts 4,390 watts 4,930 watts 8,710 watts
Display Weight 112kg |247lbs 176kg | 388lbs 249kg | 547lbs 222kg | 489lbs 255kg | 561lbs 439kg | 965lbs
Storage Temperature/Humidity
(degrees F/C)
-40° to 60° C | -40° to 140° F
10-85% relative humidity, non-condensing
Operating Temperature/Humidity
(degrees F/C)
-20° to 40° C | -4° to 104° F
10-80% relative humidity, non-condensing
Warranty Planar EverCare Lifetime Limited Warranty (North America)
Package Includes Display wall, Planar WallDirector Video Controller, Signal cables, Power cables, Wall mount, Trim, Remote Control, and Module Spares (May vary by region)
