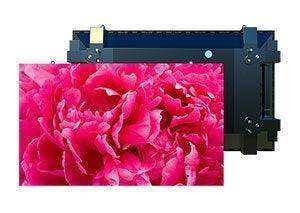

Planar TVF Complete 3, HD 219" dvLED Video Wall - 998-2606-00

Product Overview

The Planar TVF Complete 3 HD 219" (998-2606-00) is a Full HD, 219-inch diagonal fine pixel pitch dvLED video wall engineered for large-scale commercial installations where impact and image quality at scale are the primary requirements. This Planar TVF dvLED video wall delivers 1920x1080 HD resolution across a massive 219-inch display surface and ships as a fully integrated package — display cabinets, Z6 video controller, wall mounts, trim, signal and power cables, spare LED modules, power supplies, and receiver and hub cards included. The front-serviceable, stackable cabinet architecture eliminates inter-cabinet cabling and enables full-access maintenance from the display face without rear wall clearance, making it practical for both new construction and retrofit installation environments. TAA compliance qualifies this system for U.S. government and enterprise procurement without additional certification requirements.

Product Description

The Planar TVF Series 27-inch cabinets maintain a profile under three inches in depth, allowing installation in space-constrained wall locations where typical LED video wall systems cannot fit. The stackable cabinet design connects vertically without signal cabling between cabinets, reducing the number of cable runs and potential failure points during large-format multi-cabinet installations. The included Z6 Video Controller provides up to 4K processing capability with HDMI 2.0 and HDCP 2.2 support, handling multi-source content windowing, scaling, and distribution across the full display array. Redundant power supply architecture is standard, protecting the system against single-point power failures and enabling continuous 24/7 operation in mission-critical display environments. Leyard ERO-LED proprietary protective coating on the LED modules improves physical durability and long-term visual consistency in high-traffic installations. The complete package includes spare modules, power supplies, receiver cards, and hub cards, enabling immediate on-site field replacement without separate parts procurement.

Key Features

• 219-Inch Full HD Display — Delivers 1920x1080 HD output at a 219-inch diagonal, providing dominant visual presence in large auditoriums, all-hands rooms, and command spaces.
• Front-Serviceable Cabinet Design — All modules and internal electronics accessible from the front face without rear clearance, simplifying installation and maintenance in retrofit environments.
• Stackable Zero-Cabinet-Cabling Architecture — Vertical cabinet stacking without inter-cabinet signal cabling reduces installation complexity and eliminates common failure points.
• Z6 Video Controller Included — 4K-capable processing with windowing and scaling for complex multi-source content layouts, ships with the system.
• HDMI 2.0 with HDCP 2.2 — Supports current-generation signal sources including secure 4K content streams and video conferencing appliances.
• Redundant Power Supply Design — Dual power paths support 24/7 runtime requirements and protect against unexpected power failures.
• Leyard ERO-LED Protective Coating — Proprietary LED module coating extends service life and maintains visual uniformity across the display surface.
• Complete Turn-Key Package — Includes display cabinets, controller, mounts, trim, cables, spare modules, power supplies, receiver and hub cards.
• Sub-3-Inch Cabinet Depth — Shallow profile enables installation in wall locations and recesses where deeper LED systems cannot be deployed.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal and enterprise procurement programs.

Typical Applications

• Auditorium and large venue main display screens
• Corporate all-hands room and town hall feature walls
• Large boardroom and executive briefing center displays
• Government and federal facility command display systems
• Network operations center primary display arrays
• Training room and simulation center large-format displays
• Multi-purpose room configurable video wall installations

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What video resolution does this system display?

This system outputs Full HD (1920x1080) resolution across the full 219-inch diagonal display area. It is optimized for standard HD content sources including video conferencing systems, presentation computers, media servers, and broadcast feeds.

Is rear wall access required for installation or service?

No. The TVF Series cabinets are fully front-serviceable. All LED modules, power supplies, and internal electronics are accessible from the front face of the display. This makes it practical for retrofit installations where rear wall access is unavailable.

What controller is included and what are its capabilities?

The Planar Z6 Video Controller is included. It supports up to 4K (3840x2160) processing resolution with HDMI 2.0 and HDCP 2.2 inputs, and provides multi-source windowing and content scaling for complex display layouts.

Is this product TAA compliant for government purchasing?

Yes. The Planar TVF Complete 3 HD 219" is TAA compliant and qualifies for U.S. federal, state, and local government purchasing programs including GSA schedule vehicles.

What spare parts ship with the system?

The package includes spare LED modules, power supplies, receiver cards, and hub cards. This allows on-site technicians to address the most common field failures immediately without waiting for a parts shipment.

What warranty is provided?

Planar provides the EverCare Lifetime Limited Warranty for North American installations, covering the display hardware for the lifetime of commercial ownership.
