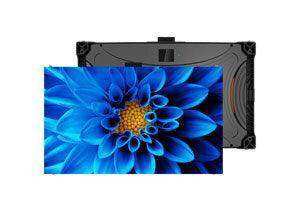

Planar TVF Complete 3, HD 164" dvLED Video Wall - 998-2604-00

Product Overview

The Planar TVF Complete 3, HD 164" dvLED Video Wall (998-2604-00) is a Full HD fine pixel pitch LED video wall spanning 164 inches diagonally with front-serviceable access, a stackable cabinet design, and the Z6 controller included. Designed for organizations requiring a complete Planar TVF dvLED video wall at the 164-inch size, this package ships with the display wall, Z6 controller, wall mounts, trim, signal cables, power cables, spare LED modules, spare power supplies, receiver cards, and hub cards. Buyers searching for a 164-inch front-serviceable LED video wall with 4K processing or a packaged fine pitch dvLED video wall system for large meeting spaces will find this solution ready for full deployment without separate component procurement. The Z6 controller processes up to 4K and supports HDMI 2.0 with HDCP 2.2 and DisplayPort 1.2 inputs.

Product Description

The Planar TVF Series is a family of fine pitch LED displays available in pixel pitches from 0.9mm to 2.5mm, giving integrators the flexibility to match pixel density to the specific viewing distance and room dimensions of each installation. The HD 164 configuration delivers Full HD 1920x1080 across a 164-inch diagonal with a 16:9 aspect ratio, making it appropriate for large conference rooms, all-hands spaces, and auditoriums where a single continuous display is preferred over a multi-panel LCD array.

The stackable 27-inch cabinets feature front installation and serviceability with a profile of less than three inches, enabling flush wall installation with ADA-compliant depth. The elimination of cabinet-to-cabinet cabling through the stackable design removes vertical alignment complexity and significantly reduces cabling labor during installation. Leyard ERO-LED protective coating is applied to LED modules, providing resistance to environmental contaminants. The Z6 controller included in the Complete 3 package supports up to 4K signal processing and HDMI 2.0 with HDCP 2.2 for protected content delivery from current-generation AV sources.

Key Features

• 164-Inch Diagonal dvLED Display — Large-format fine pitch LED canvas for all-hands rooms, auditoriums, and large conference spaces.
• Fine Pixel Pitch Selection — Available in 0.9mm to 2.5mm; select pitch based on minimum viewing distance and room layout.
• Z6 Video Controller — Included Z6 controller processes up to 4K with smooth content windowing and multi-source input management.
• Front-Serviceable 27" Cabinets — Full front access for LED module replacement without rear wall access or structural disassembly.
• Stackable Cabinet Design — Eliminates cabinet-to-cabinet cabling and vertical alignment issues for faster, cleaner installations.
• Sub-3-Inch Profile Depth — ADA-compliant depth for installation flush against standard wall surfaces.
• Leyard ERO-LED Protective Coating — Proprietary coating applied to LED modules for environmental protection without optical compromise.
• HDMI 2.0 with HDCP 2.2 — Protected 4K-capable content delivery for current-generation AV sources.
• Redundant Power Design — Built-in power redundancy limits exposure to single-point power supply failures.
• Full Spare Component Package — Includes spare LED modules, power supplies, receiver cards, and hub cards for immediate field replacement without procurement delays.

Typical Applications

• All-hands room
• Auditorium
• Conference room
• Boardroom
• Government space
• Multi-purpose room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What pixel pitch is used in the HD 164 configuration?

The TVF Series is available in 0.9, 1.2, 1.5, 1.8, and 2.5mm pitches. The specific pitch for the HD 164 configuration depends on the SKU. Confirm the pixel pitch with your sales representative to ensure the minimum viewing distance matches your installation environment.

What is the installation depth of the TVF cabinets?

The 27-inch TVF cabinets have a profile of less than three inches, supporting ADA-compliant flush installation against standard wall surfaces in most commercial environments.

Does the TVF Complete 3 include spare components?

Yes. The Complete 3 package includes spare LED modules, spare power supplies, and receiver and hub cards, enabling immediate field replacement without waiting for new parts to be procured.

Can the Z6 controller handle multiple simultaneous inputs?

Yes. The Z6 controller supports content windowing, allowing multiple video sources to display simultaneously across the 164-inch canvas with independent scaling per window.

Is this video wall front-serviceable?

Yes. The TVF cabinet design provides full front access for LED module replacement. Technicians can service the wall without rear access or structural disassembly.

Is Planar EverCare Lifetime Warranty included?

The TVF Complete 3 is covered under Planar EverCare Lifetime Limited Warranty for qualifying North American purchases.
