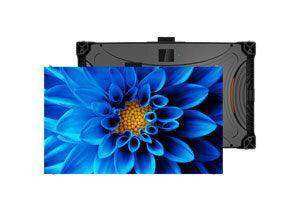

Planar TVF Complete 3, HD 109" dvLED Video Wall - 998-2600-00

Product Overview

The Planar TVF Complete 3, HD 109" dvLED Video Wall (998-2600-00) is a Full HD direct view LED display system engineered for organizations that need a complete, installation-ready Planar TVF dvLED video wall at the 109-inch diagonal size. The TVF Series uses fine pixel pitch LED technology with front-serviceable cabinets and a stackable design that removes the cabinet-to-cabinet cabling found in conventional LED installations. Buyers searching for a front-serviceable fine pitch LED video wall for conference rooms or a packaged dvLED video wall with Z6 controller will find this solution ships with every component needed for a same-day deployment. The Z6 controller provides up to 4K processing for smooth content windowing and input management across HDMI 2.0 and DisplayPort 1.2 sources.

Product Description

The Planar TVF Series is a family of fine pitch LED displays available in pixel pitches from 0.9mm to 2.5mm, allowing integrators and end users to match pixel density to their specific viewing distance requirements. The HD 109 configuration delivers Full HD 1920x1080 output across a 109-inch diagonal with a 16:9 aspect ratio suited to standard presentation and video content.

The stackable 27-inch cabinets feature front installation and serviceability with a profile under three inches, allowing the wall to mount flush without significant wall clearance. Leyard ERO-LED proprietary protective coating adds a layer of durability against environmental contaminants without compromising image quality. The Z6 controller included in this package supports up to 4K signal processing and provides HDMI 2.0 with HDCP 2.2 for protected content delivery. A redundant power design is built in to minimize the risk of display downtime in mission-critical environments.

Key Features

• Fine Pixel Pitch dvLED — Available from 0.9mm to 2.5mm pitch; HD 109 delivers Full HD across a 109-inch diagonal for clear imagery at commercial viewing distances.
• Z6 Video Controller — Included Z6 controller processes up to 4K for smooth scaling and content windowing across multiple simultaneous sources.
• Front-Serviceable 27" Cabinets — Technicians can replace individual LED modules from the front, reducing service time and eliminating the need for rear wall access.
• Stackable Cabinet Design — Eliminates cabinet-to-cabinet cabling, removing vertical alignment issues common in conventional LED wall builds.
• Sub-3-Inch Profile — Slim depth supports ADA compliance and fits flush against standard wall surfaces in a wide range of room configurations.
• Leyard ERO-LED Protective Coating — Proprietary coating protects LED modules from dust, humidity, and light physical contact without altering optical performance.
• HDMI 2.0 with HDCP 2.2 — Supports 4K-capable protected content sources for future-ready connectivity.
• Redundant Power Design — Built-in power redundancy reduces the risk of total system failure from a single power supply fault.
• Complete Turnkey Package — Ships with display wall, Z6 controller, wall mounts, trim, signal and power cables, spare LED modules, and spare power supplies.

Typical Applications

• Conference room
• Boardroom
• All-hands room
• Auditorium
• Government space
• Training room
• Multi-purpose room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the TVF Complete 3 and the original TVF Complete?

The TVF Complete 3 includes the updated Z6 controller, which supports up to 4K signal processing and HDMI 2.0 with HDCP 2.2 — a step up from the earlier controller generations included with previous Complete packages.

What pixel pitch is used in the HD 109 configuration?

The pixel pitch depends on the specific SKU ordered. The TVF Series is available in 0.9, 1.2, 1.5, 1.8, and 2.5mm pitches. For the HD 109 diagonal at Full HD resolution, confirm the pitch with your sales representative to match your minimum viewing distance.

Does this system include spare modules?

Yes. The Complete 3 package includes spare LED modules as well as spare power supplies, receiver cards, and hub cards to support field replacement without waiting for new parts to ship.

Can the Z6 controller handle multiple simultaneous inputs?

Yes. The Z6 controller supports content windowing, allowing multiple sources to display simultaneously across the 109-inch canvas with independent scaling per window.

What is the installation depth of the TVF cabinets?

The 27-inch TVF cabinets have a profile of less than three inches, which supports ADA-compliant installation flush against wall surfaces in most commercial environments.

Is Planar EverCare Lifetime Warranty included?

The TVF Complete 3 is covered under Planar EverCare Lifetime Limited Warranty for qualifying North American purchases. Confirm warranty terms with your authorized reseller at time of purchase.
