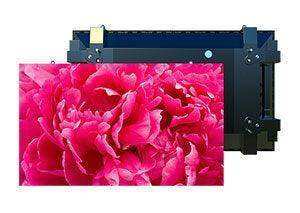

Planar TVF Complete 3, DHD198" Video Wall, CAT - 998-2612-00

Product Overview

The Planar TVF Complete 3 DHD198" (998-2612-00) is a Double HD, 198-inch diagonal fine pixel pitch dvLED video wall designed for large-scale commercial indoor environments where expansive display area and high-resolution content are required simultaneously. This Planar TVF dvLED video wall ships as a fully integrated system — display cabinets, Z6 video controller, wall mounts, trim, signal and power cables, spare LED modules, power supplies, and receiver and hub cards are all included, eliminating separate component procurement. The front-serviceable, stackable cabinet architecture reduces installation complexity and long-term maintenance demands, making it a practical choice for AV integrators managing large-footprint deployments. The Double HD 3840x1080 resolution output is optimized for ultra-wide display environments such as command centers, executive briefing rooms, and large multi-purpose spaces.

Product Description

The Planar TVF Series cabinets measure less than three inches in depth and offer full front-access installation and serviceability — LED modules, power supplies, and all internal electronics are reached from the display face without rear wall clearance. The stackable design allows vertical cabinet alignment without inter-cabinet cabling, which reduces labor time during installation and eliminates a common source of signal integrity problems in multi-cabinet arrays. The included Z6 Video Controller provides up to 4K processing capability, supporting HDMI 2.0 with HDCP 2.2 for secure, high-bandwidth signal distribution across multiple input sources. A redundant power architecture is standard, protecting against single-point power failures and supporting continuous 24/7 runtime in mission-critical environments. Leyard ERO-LED proprietary protective coating on the LED modules adds a physical protection layer, extending module service life in active commercial settings. Spare LED modules, power supplies, and hub cards ship with the system so facilities teams can address field replacements immediately without waiting on parts orders.

Key Features

• Double HD 3840x1080 Resolution — Ultra-wide output format supports side-by-side dual Full HD sources or native ultra-wide content across a 198-inch diagonal display area.
• Front-Serviceable Cabinet Design — All modules and internal electronics accessible from the front face; no rear clearance required for installation or maintenance.
• Stackable Zero-Cabinet-Cabling Architecture — Vertical cabinet stacking without inter-cabinet signal cabling reduces installation labor and eliminates a common failure point.
• Z6 Video Controller Included — 4K processing with advanced windowing and content scaling, supporting complex multi-source layouts.
• HDMI 2.0 with HDCP 2.2 — Full compatibility with current-generation secure signal sources and 4K playback systems.
• Redundant Power Supply Design — Dual power paths provide protection against unplanned downtime in critical display environments.
• Leyard ERO-LED Protective Coating — Proprietary coating on LED modules extends service life and maintains visual uniformity over time.
• Complete Turn-Key Package — Includes cabinets, Z6 controller, mounts, trim, cables, spare modules, power supplies, receiver and hub cards.
• 16:9 Aspect Ratio Sections — Each display section maintains 16:9 geometry, supporting standard video and presentation content without reformatting.
• TAA Compliant — Qualifies for U.S. government and enterprise procurement programs requiring Trade Agreements Act compliance.

Typical Applications

• Network operations center and control room primary display arrays
• Large-format boardroom and executive briefing center walls
• Government and federal facility command display systems
• Corporate all-hands room and town hall venue displays
• Auditorium and large multi-purpose room main screens
• Training room presentation and simulation displays

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What resolution does this video wall output?

This system outputs at Double HD (DHD) resolution: 3840 x 1080 pixels across the full 198-inch display area. This format is ideal for displaying two Full HD sources side by side, ultra-wide data visualization, or native wide-format content.

Does the complete package include the video controller?

Yes. The Planar Z6 Video Controller is included in the package. It provides up to 4K processing, multi-source windowing and scaling, and HDMI 2.0 inputs with HDCP 2.2 support — no separate controller purchase is required.

What are the installation requirements for this system?

The TVF Series cabinets are under three inches deep and front-serviceable, so rear wall access is not required. The wall structure must support the combined weight of the display array. Creation Networks can provide load specifications and installation drawings to assist your structural planning.

Is this product eligible for government procurement?

Yes. The Planar TVF Complete 3 DHD 198" is TAA compliant, qualifying it for federal, state, and local government purchasing vehicles including GSA schedules.

What spare parts are included?

The package includes spare LED modules, power supplies, receiver cards, and hub cards. This means on-site technicians can address common module or electronics failures immediately without a separate parts order.

What warranty is provided?

Planar covers this system under the EverCare Lifetime Limited Warranty for North American installations, providing lifetime coverage on display hardware under standard commercial operating conditions.
