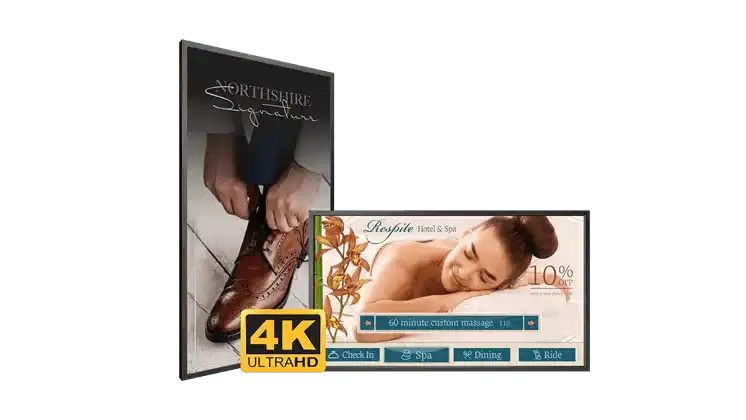

Planar Systems PS6574K-N PS Series 65" Class 4K UHD Digital Signage Smart LED Display - 998-2260-00

Product Overview

The Planar PS6574K-N is a 65" 4K UHD digital signage smart display from the PS Series, combining embedded Android 6.0 with Wi-Fi connectivity, a logo-free bezel, and fanless operation for versatile commercial digital signage deployments. TAA compliant and built for professional AV installations requiring reliable standalone signage without an external media player.

Product Description

The Planar PS6574K-N (SKU: 998-2260-00) delivers 4K UHD resolution over a 65" LED display panel with a native Android 6.0 operating system. Embedded Wi-Fi eliminates the need for a physical network connection, giving installers maximum flexibility in placement. The onboard OS supports cloud-based digital signage applications, enabling content management and scheduling without dedicated hardware. The PS6574K-N features a logo-free bezel that keeps the focus on displayed content in both landscape and portrait installations. A fanless design ensures quiet, low-maintenance operation. Connectivity includes dual HDMI, VGA, and DisplayPort. A lockable rear keypad prevents unauthorized changes. IR, RS-232, LAN, HDMI-CEC, and front keypad control options provide comprehensive integration capability. TAA compliant.

Key Features

• 65" 4K UHD digital signage smart LED display
• Embedded Android 6.0 OS with built-in Wi-Fi for wireless connectivity
• 4K UHD at 24/25/30/50/60Hz support
• Dual HDMI, VGA, DisplayPort inputs
• Logo-free bezel — landscape and portrait installation
• Fanless design for quiet, low-maintenance operation
• Lockable rear keypad to prevent unauthorized changes
• Control via IR, RS-232, LAN, HDMI-CEC, and keypad
• TAA compliant

Typical Applications

• Retail store digital signage — product promotions and brand messaging
• Corporate lobby and reception area wayfinding and information displays
• Restaurant and hospitality venue menu boards and ambiance displays
• Healthcare facility waiting room and patient information displays
• Government building information boards in TAA-required environments
• Education campus directories and event announcement boards

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the PS6574K-N require an external media player?

No. The display features an embedded Android 6.0 operating system with built-in Wi-Fi, enabling cloud-based digital signage application support and USB media playback without an external player for standard deployments.

Is the PS6574K-N TAA compliant?

Yes. The PS6574K-N is TAA compliant, qualifying it for procurement under U.S. federal and government agency purchasing requirements.

Can it be mounted in portrait orientation?

Yes. The logo-free bezel design supports both landscape and portrait installations with a symmetrical appearance in either configuration.

How is the display controlled remotely?

The PS6574K-N supports LAN (network), RS-232 serial, IR, and HDMI-CEC control interfaces in addition to the lockable front keypad, enabling integration into virtually any commercial AV control system.

What 4K frame rates are supported?

The display accepts 4K UHD content at 24, 25, 30, 50, and 60Hz. It also supports 1080p at multiple frame rates and 1080i, 720p, 576p, and 480p at 50 and 60Hz.
