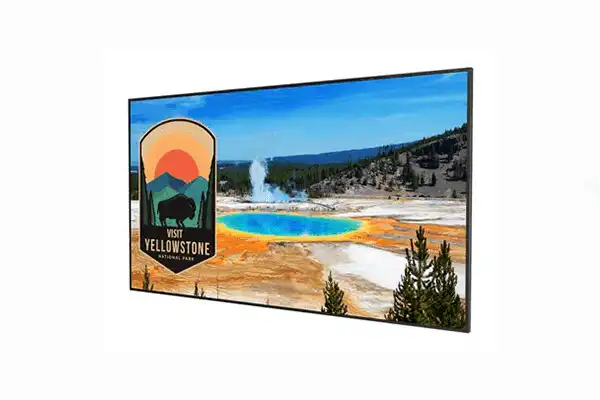

Planar Simplicity M Series SLM86 - 86" LED-backlit LCD display - 4K - 998-2767-00

Product Overview

The Planar Simplicity M Series SLM86 is an 86-inch 4K UHD direct-lit LED LCD display purpose-built for commercial digital signage. With a built-in Android-based media player, HDCP 2.2 compliance, 4K at 60Hz support, and a logo-free bezel design, the SLM86 delivers enterprise-grade signage capability in an affordable, all-in-one package suitable for retail, hospitality, healthcare, and corporate environments.

Product Description

The SLM86 is a dedicated digital signage display — not an interactive or collaboration device. Its strength lies in its large 86-inch screen area, its full-resolution 4K UHD panel, and its embedded media playback capability running on a proprietary Android 8.0-based operating system with 16GB of internal storage. Content can be played back via USB, LAN-connected CMS, or internal storage, and the display supports scheduling and remote control via RS-232, LAN, and IR. The fanless design reduces noise and long-term maintenance overhead. Its 500-nit brightness and 178-degree viewing angle make it effective in moderately lit public spaces where large-format, non-touch signage is required. Unlike the Planar Simplicity P Series (SLP75-T), which adds 20-point capacitive touch and 24/7 interactive capability, the SLM86 is optimized for passive content delivery with a recommended usage of up to 16 hours per day.

Key Features

• 86-inch 4K UHD (3840 x 2160) direct-lit LED LCD panel
• 500 nits brightness, 1200:1 contrast ratio, 178-degree viewing angle
• Built-in Android 8.0 media player with 16GB internal storage
• 4K @ 60Hz via HDMI 2.0 (HDCP 2.2) and DVI-D inputs
• Full 10-bit color path supporting over 1 billion colors
• Fanless design for silent operation and reduced maintenance
• Logo-free, narrow 15.5mm bezel for clean installations
• Dual 10W built-in speakers
• Remote control via RS-232, LAN, IR, and HDMI-CEC
• VESA 600mm x 400mm mounting compatibility

Typical Applications

• Retail store digital signage and promotional displays
• Restaurant and hospitality menu boards
• Corporate lobby and reception area displays
• Healthcare waiting room and wayfinding signage
• House-of-worship and event venue announcement boards
• Educational institution hallway and common area displays

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does the SLM86 differ from the Planar Simplicity P Series SLP75-T?

The SLM86 is an 86-inch passive digital signage display with no touch capability and a 16-hour daily usage rating. The SLP75-T is a 75-inch interactive display with 20-point capacitive touch and 24/7 operational rating, designed for interactive wayfinding and collaborative signage. Choose the SLM86 for large-format passive content delivery; choose the SLP75-T when touch interactivity is required.

Does the SLM86 include a media player?

Yes. It runs a proprietary Android 8.0-based operating system with 16GB of internal storage (4.5GB user-available), supporting USB and LAN-based content playback. Third-party Android apps and Google Play are not supported.

Can the SLM86 be used in portrait orientation?

No. The SLM86 is rated for landscape orientation only. For portrait digital signage installations, consider the Planar Simplicity P Series, which supports both landscape and portrait mounting.

What is the recommended daily operating time for the SLM86?

Planar rates the SLM86 for up to 16 hours of operation per day. For 24/7 continuous digital signage, the Planar Simplicity P Series or QE Series displays are better suited.

What inputs does the SLM86 support?

The display provides 2x HDMI 2.0 (HDCP 2.2), 1x DVI-D, 1x VGA, and an integrated media player input for direct USB and LAN-based content delivery.
