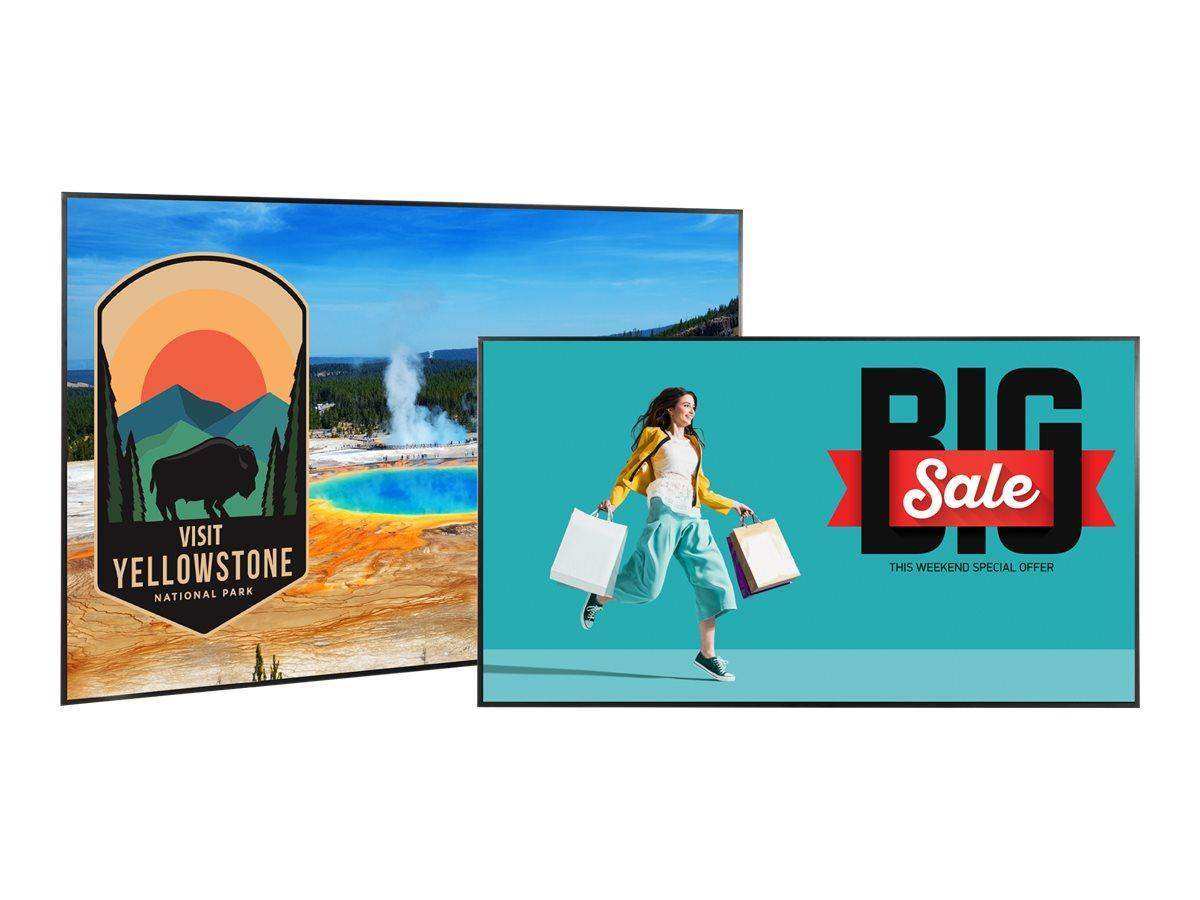

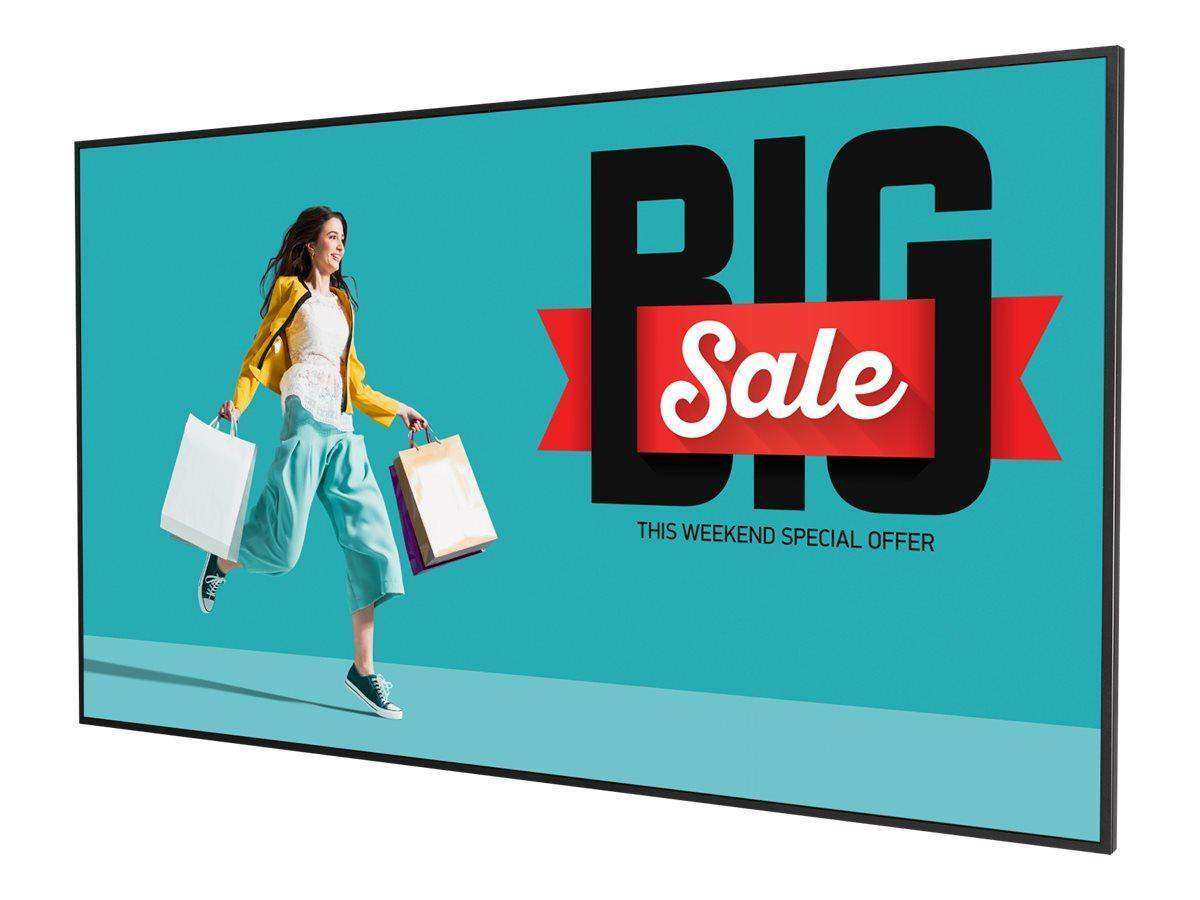

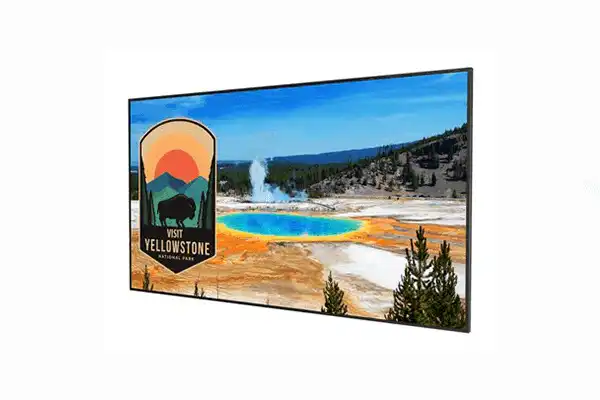

Planar SLM55 Simplicity M Series - 55" LED-backlit LCD display - 4K - 998-2764-00

Planar SKU: 998-2764-00
No reviews
Price:
$1,112.00

Description

The Planar® Simplicity™ M Series SLM55 is a 55" 4K LCD display for digital signage that incorporates media playback, 4K @ 60Hz support, HDCP2.2 compliance  and commercial functionality into an affordable 55" digital signage solution. Its elegant design with a narrow, logo-free bezel and slim profile provide the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, corporate meeting areas and hospitality.

  • 55" Diagonal Class LED-backlit LCD display
  • 4K UHD (2160p) 3840 x 2160
  • digital signage
  • direct-lit LED
Specification: Detail:
Product Name SLM55
Planar Part Number 998-2764-00
Display Resolution Ultra HD (3840 x 2160)
HD format 4K UHD 2160p
Screen Size 55 in. (diagonal)
Aspect Ratio 16:9
Display Technology Direct-lit LED LCD
Haze 3%
Display Active Area 47.6" x 26.8" (1209.6mm x 680.4mm)
Viewing Angle (typ) 178°
Backlight LED
Brightness (typ) 500 nits
Response Time (typ) 9 ms
Frame Rate 60Hz
Contrast Ratio (typ) 1300:1
Pixel Pitch 0.315mm x 0.315mm
Color Gamut 72% NTSC
Display Color >1 billion colors. Full 10 bit data path
External Connections HDMI 2.0 x 2 (HDCP 2.2), DVI-D x 1, VGA x 1, Media Player
Modes 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad
Cabinet Dimensions (W x H x D) 48.9" x 28.1" x 2.5" (1241.8mm x 712.6mm x 63.6mm)
Cabinet Dimensions with Handles (W x H x D) Not Applicable
Orientation Landscape only
Bezel Width 0.5" (13.9mm)
Weight 37 lbs (17 kg)
Weight (Shipping) 51 lbs (23 kg)
Audio PC Line in, RCA L/R out
Speakers 10W x 2 built-in
Mounting VESA: 400mm x 400mm
Fanless Yes
Line Voltage 100-240V; 50/60Hz
Power Consumption (typ) 112W (standby: <0.5W)
Operating Temperature 0° to +40°C (32° to 104°F) up to 3000m
Humidity 20 - 85% RH (non-condensing)
Operating System Proprietary OS based on Android 8.0. Google Play and third-party apps are not supported by Planar.
Storage 16GB (4.5GB available)
Options / Features USB playback, logo-free bezel, lockable rear keypad
Approvals FCC Class A, cTUVus, CE, RoHS
Warranty 2 years
Recommended Usage Up to 16 hours per day
In the Box SLM55 display, C14 connector power cord - 1.8m, HDMI cable - 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide
UPC 8 10689 00974 0
