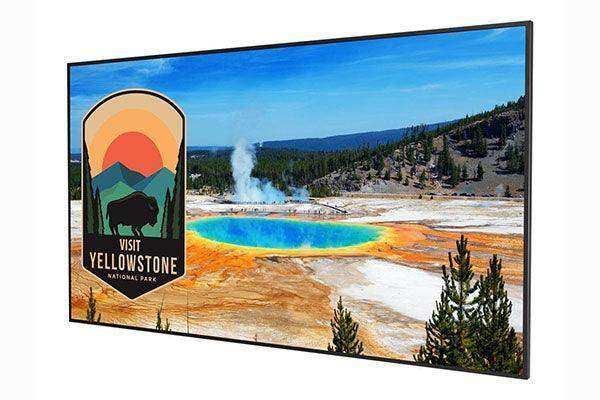

Planar SLM43 43" 3840x2160 LCD Display, 500 Nit Brightness, 16x7 Reliability - 998-2762-00

Product Overview

The Planar Simplicity M Series SLM43 is a commercial 43" 4K UHD digital signage display rated for up to 16 hours of daily operation. Featuring a 3840 x 2160 resolution, 500-nit brightness, HDCP 2.2 compliance, and a built-in Android-based media player, the SLM43 delivers enterprise digital signage performance in a slim, logo-free, fanless form factor suited to retail, restaurant, hospitality, and corporate environments.

Product Description

The SLM43 integrates direct-lit LED LCD technology in a 2.5"-deep cabinet with a 0.5" narrow bezel and no visible branding — ideal for professional installations where a clean visual presentation is required. Two HDMI 2.0 inputs with HDCP 2.2 support 4K @ 60Hz content from protected sources, while DVI-D and VGA inputs accommodate legacy source equipment. A built-in proprietary media player (Android 8.0 base, 16GB storage) enables USB content playback and display scheduling without an external player.

RS-232, LAN, IR, and HDMI-CEC control interfaces support integration into commercial AV control ecosystems. The lockable rear keypad prevents unauthorized adjustments in public environments. A fanless design ensures silent operation in noise-sensitive spaces such as medical offices, galleries, and premium retail. The display ships complete with HDMI cable, RS-232 cable, IR cable, remote control, and cable clamps.

Key Features

• 43" 4K UHD (3840 x 2160) direct-lit LED LCD, 500 nits
• 4K @ 60Hz support with HDCP 2.2 compliance
• Inputs: HDMI 2.0 x2, DVI-D x1, VGA x1
• Built-in media player: Android 8.0, 16GB storage, USB playback
• Control: RS-232, LAN, IR, HDMI-CEC, lockable rear keypad
• Fanless, silent operation
• Narrow 0.5" logo-free bezel, 2.5" depth
• Dual 10W built-in speakers
• VESA 200 x 200mm mounting pattern
• Landscape orientation; rated for up to 16 hours/day
• FCC Class A, cTUVus, CE, RoHS; 2-year warranty

Typical Applications

• Retail digital signage and point-of-sale displays

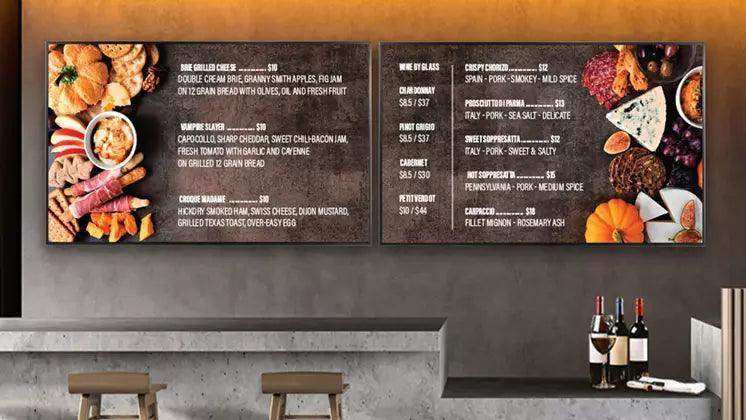

• Restaurant and quick-service menu boards
• Hotel lobby and hospitality wayfinding displays
• Corporate meeting room and reception area signage
• Medical office patient information and waiting room displays
• Museum, gallery, and exhibit digital interpretation screens

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the Planar SLM43 suitable for commercial digital signage?

Yes. The SLM43 is purpose-built for commercial digital signage with 16-hour daily operation rating, a lockable keypad, built-in media player, and HDCP 2.2 compliance — features that distinguish it from consumer TVs.

Does the SLM43 require an external media player?

No. The built-in proprietary media player (Android 8.0 base, 16GB storage) supports USB content playback and scheduled display operations without any additional hardware.

What mounting hardware is compatible with the SLM43?

The SLM43 uses a VESA 200 x 200mm pattern and is compatible with the Planar FWMS-MXL, FWM-MXL, and most third-party VESA 200x200mm wall mounts.

Does the SLM43 operate silently?

Yes. The fanless design produces no mechanical noise, making it suitable for quiet environments including medical offices, high-end retail, galleries, and libraries.

What control system integrations are available for the SLM43?

The SLM43 supports RS-232, LAN (IP control), IR, and HDMI-CEC, enabling integration with commercial AV control systems including Crestron and AMX platforms.
