Planar Simplicity SLM432-T Interactive, 43in diagonal, UHD, D-LED backlight, 500 nit brightness, 16x7 operation

Product Overview

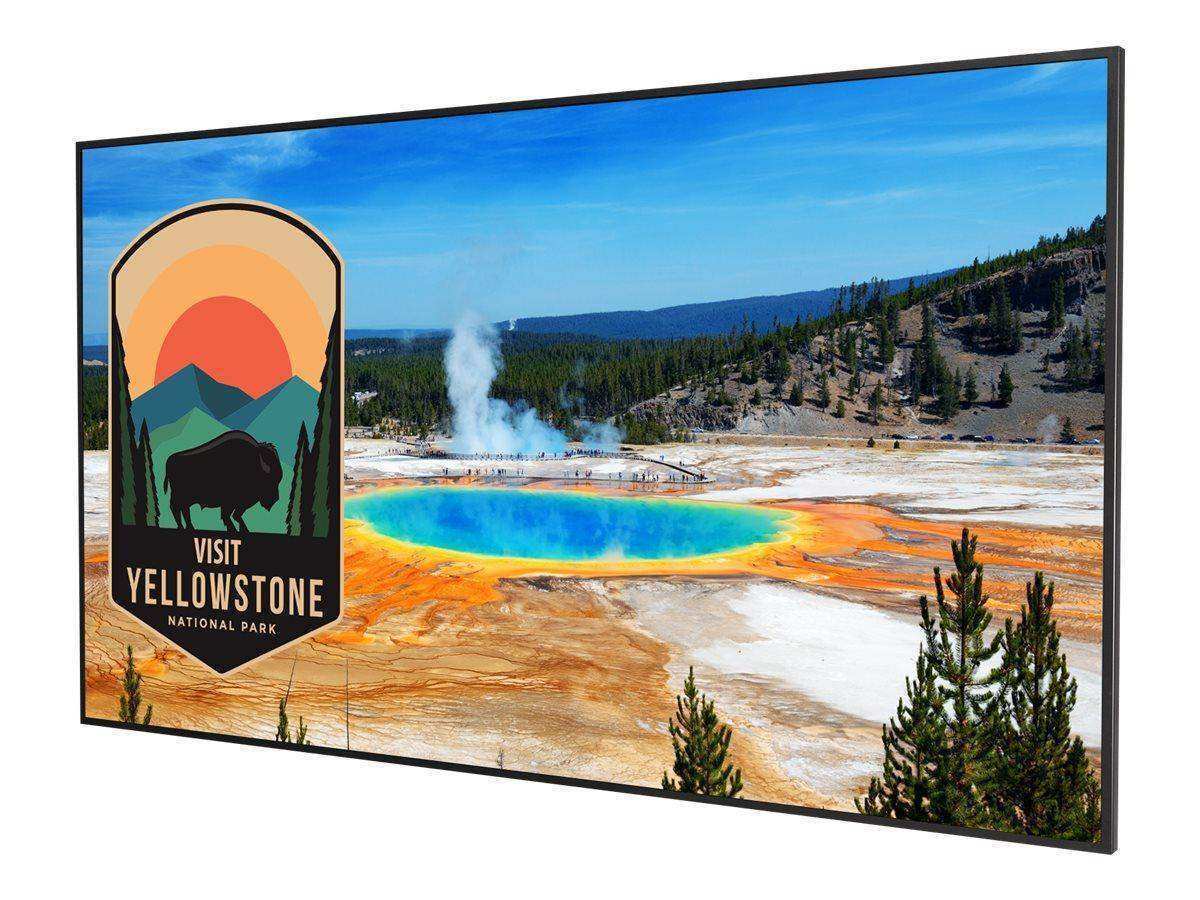

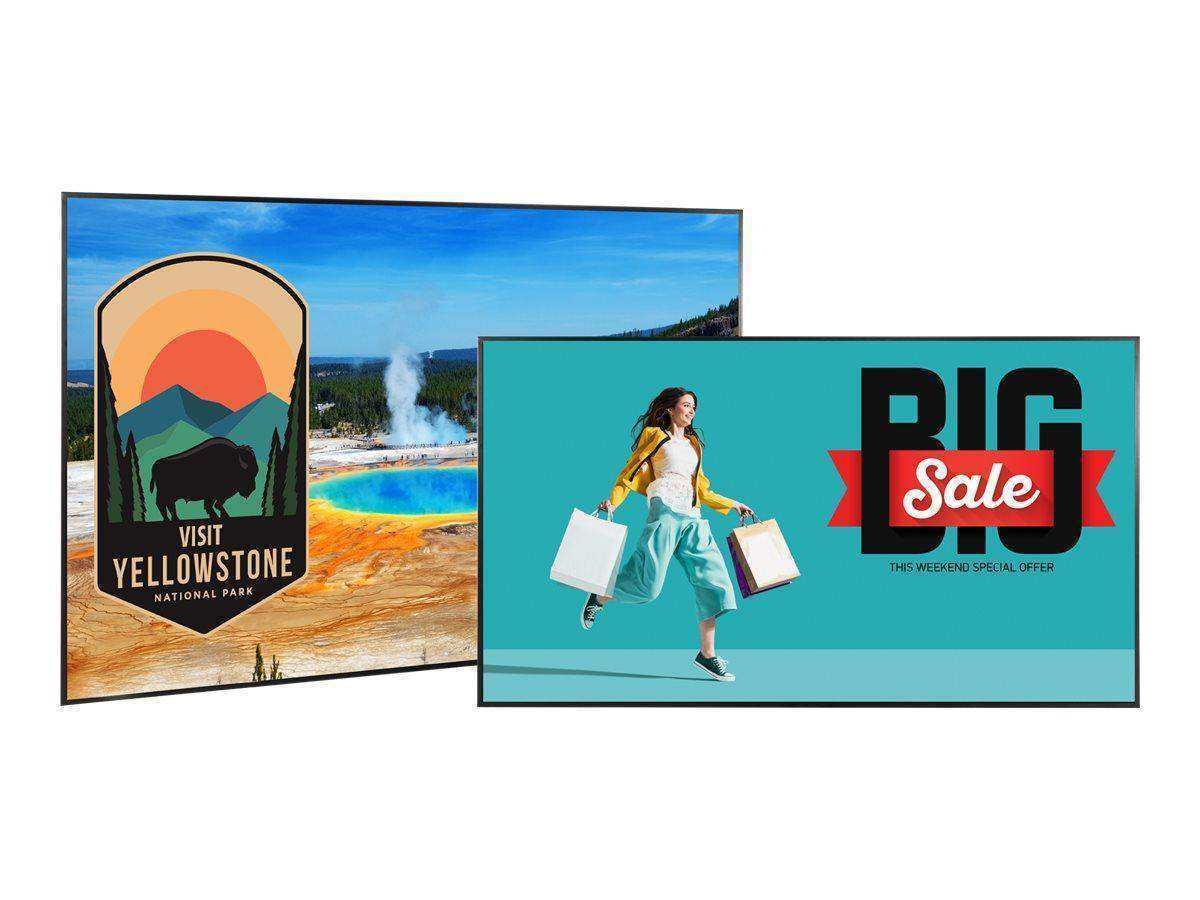

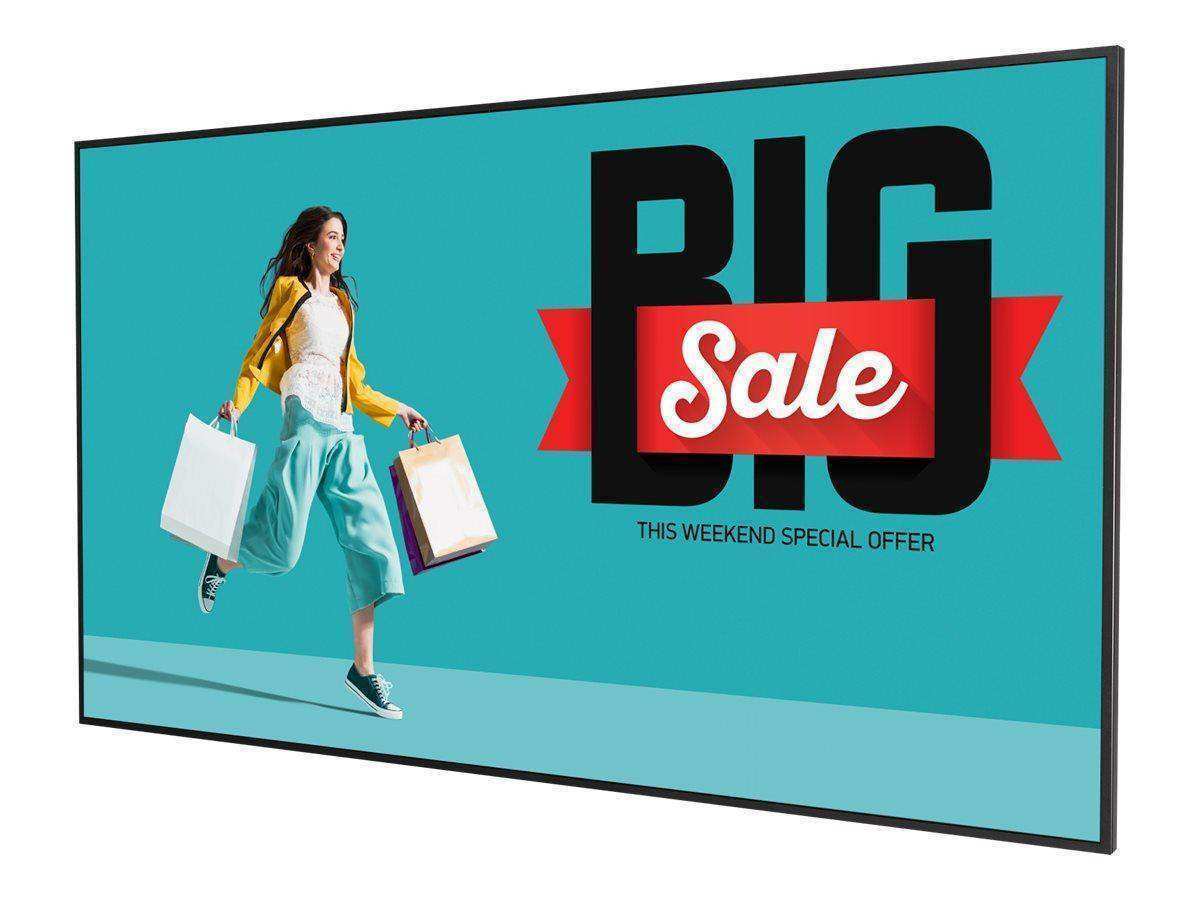

The Planar Simplicity SLM432-T is an interactive 43" UHD 4K commercial touch display (SKU: 998-3480-00) rated for 16x7 operation. It delivers 500 nit brightness via a direct-lit LED LCD panel, 20-point projected capacitive touch, and a cybersecurity-mitigated design with no onboard Wi-Fi. Engineered for retail, restaurant, office, and hospitality digital signage during regular business hours, it supports USB-C with 65W power delivery, Crestron and Q-SYS control integration, and content scheduling via its embedded secure OS.

Product Description

The SLM432-T brings touch interactivity to Planar's Simplicity M Series at a 43" form factor. The 500 nit D-LED backlit panel ensures content remains visible in typical commercial lighting conditions. Its 20-point PCAP touch layer supports interactive menu boards, wayfinding, collaboration, and retail product configurators. Connectivity is comprehensive: HDMI, VGA, USB-C (4K60 with 65W power delivery), LAN (RJ45), USB, and MicroSD. There is no onboard Wi-Fi, aligning with the EN 303 645 cybersecurity standard. Crestron and Q-SYS driver/plugin support reduces integration time and programming cost. The built-in media player supports scheduled playback from USB and MicroSD storage, and the display supports both landscape and portrait installation configurations. ENERGY STAR certification and programmable power scheduling minimize operating costs during off-hours.

Key Features

• 43" UHD 4K (3840 x 2160) direct-lit LED LCD at 500 nits
• 16x7 commercial operation rating
• 20-point projected capacitive touch
• USB-C input with 4K60 signal and 65W power delivery
• No onboard Wi-Fi — cybersecurity-mitigated design
• ENERGY STAR certified
• Crestron and Q-SYS driver/plugin support
• Programmable power on/off and media playback scheduling
• Landscape or portrait orientation
• Dual 10W built-in speakers with HDMI-CEC control

Typical Applications

• Interactive digital menu boards in restaurants and food service
• Retail product configurator and interactive display kiosks
• Corporate office lobby directories and visitor management
• Museum exhibit and visitor center interactive panels
• Hospitality concierge and wayfinding touch displays
• Healthcare patient check-in and information kiosks

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the SLM432-T and the SLP43-T?

Both are 43" 4K touch displays, but the SLM432-T belongs to the Simplicity M Series (rated 16x7) while the SLP43-T is in the Simplicity P Series (rated 24x7). The SLP43-T also includes USB-C, S/PDIF audio output, and EN 303 645 certification. The SLM432-T adds native Crestron and Q-SYS driver support and 500 nit brightness, making it better suited for professional AV integration.

What control systems integrate with the SLM432-T?

The SLM432-T includes certified Crestron and Q-SYS modules and plugins, significantly reducing programming time for AV integrators. RS-232, LAN, IR, and HDMI-CEC control interfaces are also available.

Can the SLM432-T be used as a collaboration display?

Yes. The 20-point PCAP touch capability supports collaboration, whiteboarding, annotation, and presentation applications when connected to a PC via USB-C or HDMI + USB.

Does the USB-C port charge connected devices?

Yes. The USB-C input delivers 65W of power to charge a connected laptop or device while simultaneously carrying 4K60 video signal.

Can content be scheduled on the SLM432-T?

Yes. The display supports automated power on/off scheduling and media playback scheduling from USB and MicroSD storage, allowing unattended operation during business hours.

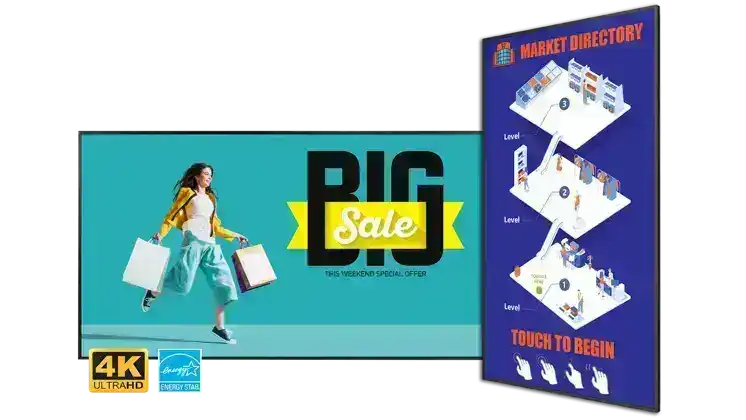

Is the SLM432-T landscape and portrait capable?

Yes. The display can be mounted in either landscape or portrait orientation, supporting a range of installation environments including menu boards, narrow totems, and standard wall mounts.
