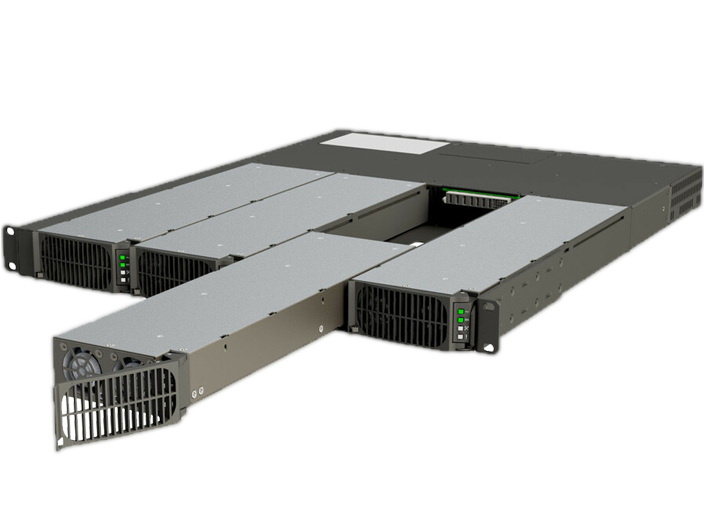

Planar Remote Power Supply – LED Video Wall RPS Module

Product Overview

The Planar Remote Power Supply (RPS) relocates power delivery for LED video walls away from the display surface and into a rack room, removing heat, depth, noise, weight, and service points from the wall itself. This unit accepts a 100-240Vac input voltage range and houses a single Remote Power Supply Module supplying three 48VDC outputs rated at 1150W each plus two 48V auxiliary outputs rated at 150W each. The RPS is TAA compliant, supporting government and regulated procurement. It is designed for Planar DirectLight family LED video walls that use off-board power architecture.

Product Description

The Planar Remote Power Supply centralizes LED video wall power in the equipment rack, simplifying display installation and ongoing service. By moving power conversion off the wall, the RPS reduces the depth, weight, audible noise, and number of service points at the display surface, which is valuable in finished interior environments and control rooms. This configuration provides a 100-240Vac universal input range and a single Remote Power Supply Module delivering three 48VDC outputs at 1150W each, supporting the LED cabinets, along with two 48V auxiliary outputs at 150W each for supporting electronics. The wide input range accommodates both 110V and 220V facility power. Centralized power distribution also concentrates maintenance access in the rack room rather than behind the display, reducing downtime during service. The RPS is TAA compliant, which supports procurement for federal, state, and regulated organizations. As part of an off-board power architecture, it is intended to pair with compatible Planar DirectLight LED video wall systems. For compatibility verification and rack planning, explore the full Planar collection at Creation Networks. Our team can confirm cabinet-to-RPS ratios and redundancy options for your deployment.

Key Features

• Off-board power architecture — Moves heat, depth, noise, weight, and service points from the video wall into the rack room.
• 100-240Vac universal input — Accepts both 110V and 220V facility power for flexible installation.
• Three 48VDC outputs at 1150W — Supplies primary power for connected LED video wall cabinets.
• Two 48V auxiliary outputs at 150W — Powers supporting electronics alongside the main display load.
• Single Remote Power Supply Module — Consolidated module simplifies the power configuration for this unit.
• Rack-room serviceability — Concentrates maintenance access away from the display surface to reduce downtime.
• TAA compliant — Supports government, federal, and regulated procurement requirements.
• DirectLight family compatibility — Designed for Planar LED video walls that use off-board power.

Typical Applications

• Control room and command center LED walls
• Corporate lobby and executive briefing displays
• Broadcast studio video walls
• Government and federal facility installations
• Mission-critical 24x7 visualization
• Finished interior environments requiring low display-side noise

Technical Specifications

Redundancy options, rack dimensions, and supported cabinet counts vary by system; contact Creation Networks to confirm.

Frequently Asked Questions

What does the Remote Power Supply do? It relocates LED video wall power conversion into a rack room, removing heat, noise, weight, and service points from the display surface.

What input voltage does it accept? The RPS accepts a 100-240Vac input range, accommodating both 110V and 220V facility power.

What are the output ratings? This unit provides three 48VDC outputs at 1150W each and two 48V auxiliary outputs at 150W each.

Is it TAA compliant? Yes. The RPS is TAA compliant for government and regulated procurement.

Which displays is it compatible with? It is designed for Planar DirectLight family LED video walls using off-board power. Contact Creation Networks to confirm compatibility with your model.

How many cabinets can one RPS support? Supported cabinet count depends on the LED wall configuration; contact Creation Networks to confirm for SKU 750-2353-00.
