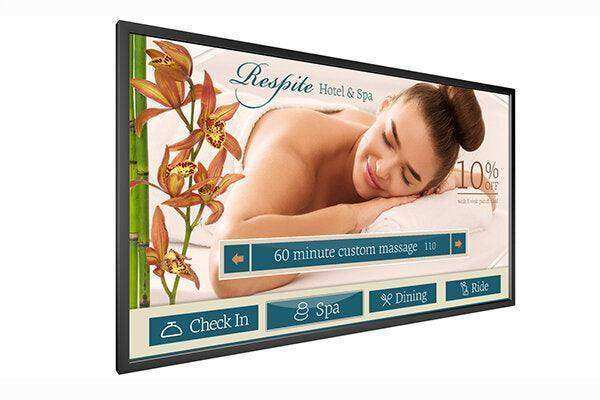

Planar PS5074KT-N PS Series 50" Class 4K UHD LCD Touchscreen Display-TAA - 998-2257-00

Description

Spec Sheet

The PS5074KT-N Touchscreen, part of the Planar® PS Series, is a 50” TAA compliant, professional large format, interactive LCD display that offers vibrant 500-nit brightness specifically designed for digital signage applications. With embedded Android® for easy content management and cloud-based support, and Wi-Fi for network connectivity, the Planar® PS5074KT display is a digital signage essential, ideal for bright digital signs and interactive kiosks that will draw eyes and engagement. This display contains a rich feature-set, including 20-point interactivity, a protective glass surface, narrow bezels, a slim profile and twice the brightness of typical consumer televisions, delivering a sleek look and beautiful, ultra-high definition images and messages that captivate the attention of any audience. Additionally, the Planar® PS Series is excellent for 24x7 operation and can be mounted in either landscape or portrait orientation. Planar PS Series 4K displays are logo-free, keeping the spotlight on your brand.

Applications

• Retail
• Corporate
• Museums

Includes

• PS5074KT-N display
• NO Wifi
• US power cord
• EU power cord
• HDMI cable
• IR cable
• USB A to B cable
• Remote control
• WiFi antenna
• Cable clips
• QuickStart Guide

Features

• Ultra HD 4K resolution (3840 x 2160)
• Designed for 24x7 operation
• Built-in Android® operating system
• U.S. TAA compliant
• Support for both landscape and portrait mounting
• Logo-free bezel
• 20-point interactive touch model

Specifications

• Product Name: PS5074KT-N
• Planar Part Number: 998-2257-00
• Protective Glass: 4 mm with AG coating
• Touch Technology: IR 20 point touch
• Touch Interface: USB-B
• OS Compatibility: Windows 7, 8, 10, Mac OSX and Linux
• Display Resolution: Ultra HD (3840 x 2160)
• Screen Size: 50" diagonal
• Aspect Ratio: 16:9
• Display Technology: Direct-lit LED LCD
• Display Active Area: 43.1" x 24.3" (1095.8 x 616.4 mm)
• Viewing Angle (typ): 178°
• Backlight: LED
• Backlight life (1/2 brightness): 30,000 hrs (min)
• Brightness (w/o touchscreen): 550 nits
• Brightness (w/touchscreen): 500 nits
• Response Time (typ): 8 ms
• Frame Rate: 60Hz
• Contrast Ratio (typ): 4000:1
• Pixel Pitch: 0.2854 x 0.2854 mm
• Color Gamut: 72% NTSC
• Display Color: > 1 billion colors. Full 10 bit data path
• External Connections:
  • (1) DisplayPort 1.2
  • (2) HDMI 2.0 (HDCP 2.2)
  • (1) VGA
  • USB-B (for touch controller)
• Modes:
  • 3840x2160 @ 24/25/30/50/60Hz
  • 1080p @ 24/25/30/50/60Hz
  • 1080i @ 50/60 Hz
  • 480p, 576p, 720p @ 50/60 Hz
• Display Control:
  • IR
  • RS-232
  • LAN
  • Keypad
  • WLAN (WiFi)
• Cabinet Dimensions (WxHxD): 45.2" x 26.3" x 3.4" (1148.4 x 669.0 x 87.3 mm)
• Orientation: Landscape/Portrait
• Bezel Width: 0.9" (22.8 mm)
• Weight: 54.0 lbs (24.5 kg)
• Weight (Shipping): 65 lbs (30 kg)
• Audio Input: PC Line In
• Audio Output: PC Line Out, S/PDIF
• Speakers: (2) 10W built-in
• Enclosure: Metal front bezel; plastic rear enclosure
• Mounting: VESA: 400mm x 400mm
• Fanless: Yes
• Line Voltage: 100-240V; 50/60Hz
• Power Consumption (typ): 115W (standby: < 0.5W)
• Operating Temperature: 0° to +40°C (32° to 104°F) up to 3000 m
• Humidity: 20 - 85% RH (non-condensing)
• Operating System: Android 6.0
• WiFi: Yes; 802.11 b/g/n, 2.4 GHz
• Options/Features:
  • USB playback
  • Logo-free bezel
  • Kensington security slot
  • Lockable rear keypad
• Approvals: FCC Class A, CE, cTUVus
• TAA Compliance: Yes
• Warranty: 3 years Advance Exchange
• Recommended Usage: Up to 24x7
• UPC: 8 10689 00657 2
