Planar PS5074K PS-Series - 50" LED display -4K- 998-1243-00
Product Overview

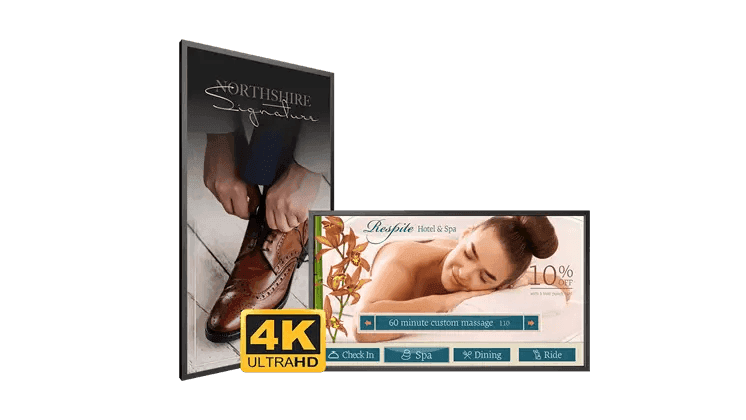

The Planar PS5074K is a commercial-grade 50" Class 4K UHD LED-backlit LCD display built for digital signage and corporate AV applications. Part of the Planar PS Series (SKU: 998-1243-00), it delivers 4K UHD resolution over HDMI 2.0, runs on an embedded Android 6.0 OS with built-in Wi-Fi, and features a logo-free bezel for unbranded installations. TAA compliant and fanless, it suits government and enterprise deployments requiring a 50" form factor.
Product Description
The PS5074K shares the same PS Series platform as the larger PS5574K — offering the same digital signage capabilities in a 50" footprint ideal where 55" is too large. The embedded Android 6.0 smart platform connects wirelessly via integrated Wi-Fi to support cloud-based digital signage content without a dedicated media player. Two HDMI 2.0 inputs (HDCP 2.2) accept 4K sources; VGA and DisplayPort inputs ensure legacy AV compatibility. A fanless thermal design guarantees quiet, maintenance-free operation in lobbies, meeting rooms, and retail environments. The lockable rear keypad prevents unauthorized tampering in public-facing installations.
Key Features
- 50" Class 4K UHD (3840 x 2160) direct-lit LED LCD
- Embedded Android 6.0 OS with integrated Wi-Fi for wireless digital signage
- Logo-free bezel — landscape or portrait mounting
- TAA compliant for government and federal procurement
- Dual HDMI 2.0 (HDCP 2.2) + VGA + DisplayPort inputs
- IR, RS-232, LAN, HDMI-CEC, WLAN, and lockable keypad control
- Fanless design for silent commercial operation
- Dual 10W built-in speakers
- 4K UHD @ 24/25/30/50/60 Hz; 1080p, 1080i, 720p, 576p, 480p supported
- USB media playback support
Typical Applications
- Corporate conference rooms and meeting spaces
- Government office digital signage (TAA required)
- Retail product displays and promotional digital signage
- Hospitality lobby and guest-facing displays
- Medical waiting area information displays
- Education and campus wayfinding
Technical Specifications
| Specification | Detail |
|---|---|
| Model | PS5074K (998-1243-00) |
| Screen Size | 50" Class (diagonal) |
| Resolution | 4K UHD (3840 x 2160) |
| Display Technology | Direct-lit LED LCD |
| Refresh Rate | Up to 60 Hz |
| Inputs | HDMI 2.0 x2 (HDCP 2.2), DisplayPort x1, VGA x1 |
| Control | IR, RS-232, LAN, HDMI-CEC, WLAN (Wi-Fi), Keypad |
| Operating System | Android 6.0 (embedded) |
| Speakers | 10W x 2 built-in |
| Compliance | TAA, FCC Class A, cTUVus, CE, RoHS |
| Orientation | Landscape / Portrait |
| Fanless | Yes |
Competitor Comparison
| Feature | Planar PS5074K | Samsung QB50B | LG UH5F-H 50" | NEC ME501 |
|---|---|---|---|---|
| Resolution | 4K UHD | 4K UHD | 4K UHD | 4K UHD |
| TAA Compliant | Yes | No | No | No |
| Logo-Free Bezel | Yes | No (branded) | No (branded) | No (branded) |
| Embedded OS | Android 6.0 | Tizen | webOS | None (OPS slot) |
| Built-in Wi-Fi | Yes | Yes | Yes | No (optional) |
| Fanless Design | Yes | Yes | Yes | No |
| OPS Slot | No | No | No | Yes |
Frequently Asked Questions
- How does the PS5074K differ from the PS5574K?
- The PS5074K and PS5574K share the same PS Series platform and feature set. The primary difference is screen size — 50" versus 55" — allowing integrators to select the appropriate size for the installation environment.
- Is the PS5074K suitable for 24/7 operation?
- Yes. The PS Series is a commercial-grade display line designed for extended operation in digital signage environments. Verify duty cycle specifications with the product datasheet for your specific deployment.
- Does this display need a separate media player?
- No. The embedded Android 6.0 OS supports cloud-based digital signage applications, and the built-in Wi-Fi provides wireless content delivery without additional hardware.
- Can the PS5074K be mounted in portrait mode?
- Yes. The logo-free bezel design supports both landscape and portrait orientations.
- What control methods are available?
- The PS5074K supports IR remote, RS-232 serial control, LAN (Ethernet), HDMI-CEC, Wi-Fi, and a lockable rear keypad — compatible with major control systems including Crestron and AMX.
- Is the PS5074K TAA compliant?
- Yes. TAA compliance makes the PS5074K eligible for GSA Schedule purchasing and U.S. federal government procurement contracts.
