Planar Clarity Matrix G3 MX55X3 LCD Video Wall

Product Overview

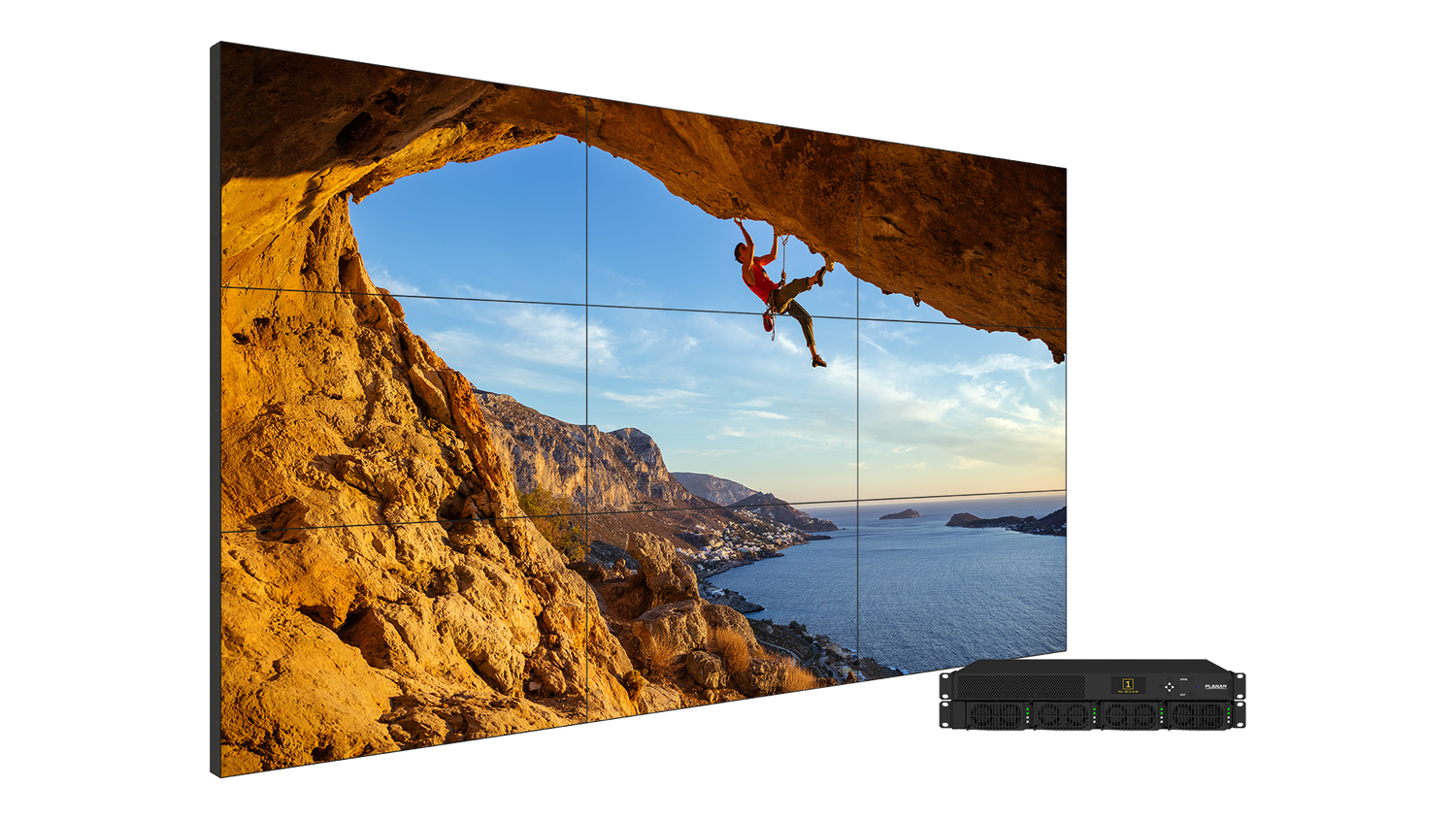

The Planar Clarity Matrix G3 MX55X3 is a 55-inch LCD video wall display built for high-ambient-light environments and continuous operation. It combines a commercial-grade IPS panel at Full HD (1920 x 1080) with 700-nit brightness and a narrow 2.6mm tiled bezel for a tight, near-continuous canvas across multiple units. This configuration ships as a video wall system with one LCD module, the required power supply modules, standard video controller electronics and a VESA mount pattern. It is TAA compliant for government and regulated procurement.

Product Description

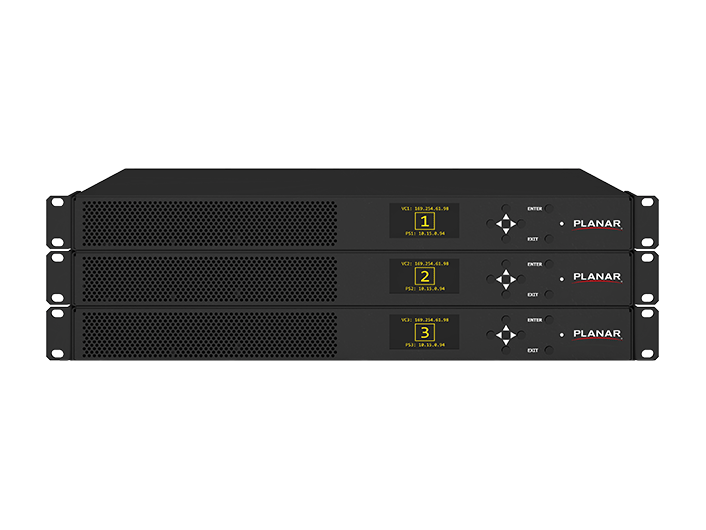

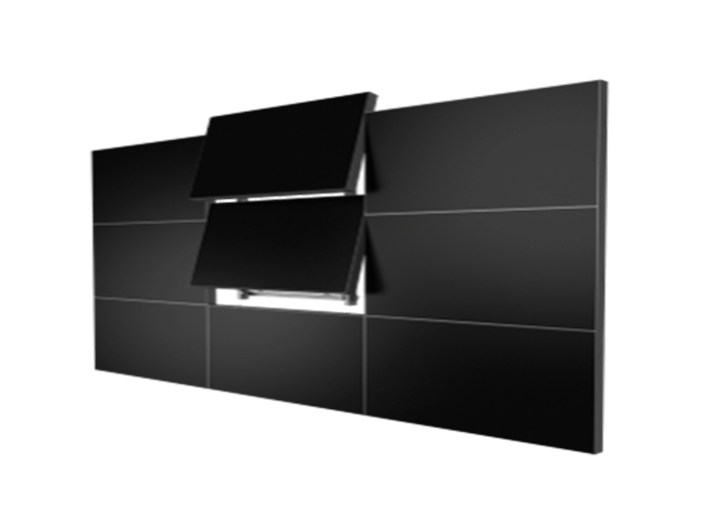

This MX55X3 unit is part of Planar's Clarity Matrix G3 LCD video wall family, the higher-brightness MX tier rated at 700 nits for spaces with significant ambient light such as lobbies, operations centers and public areas. The commercial-grade IPS LCD panel provides wide viewing angles, which helps maintain consistent color and contrast when viewers stand off-axis from a large tiled wall. A 2.6mm tiled bezel width keeps the seams between adjacent displays minimal, supporting a cohesive image when content spans the full array. The system is engineered for 24x7 operation, making it appropriate for mission-critical environments that run continuously. This particular configuration uses a VESA mount pattern and includes one LCD module, the required power supply modules and standard video controller electronics, so it functions as a complete building block within a larger Clarity Matrix wall. Off-board electronics in the Clarity Matrix platform help keep installation depth shallow and simplify serviceability. Because video walls are sized to the room and content, the number of modules, controller configuration and mounting approach should be planned as a system; Creation Networks can scope a layout for a specific application. Explore the full Planar range on our Planar collection. Exact panel-level dimensions, power draw and controller capacity vary by configuration — contact Creation Networks to confirm.

Key Features

• 55-inch Full HD panel — 1920 x 1080 resolution per module for tiled video wall canvases.
• 700-nit brightness — Higher-brightness MX tier suits lobbies, operations centers and high-ambient-light areas.
• 2.6mm tiled bezel — Narrow seam width supports a near-continuous image across adjacent displays.
• Commercial-grade IPS panel — Wide viewing angles maintain consistent color and contrast off-axis.
• 24x7 reliability — Built for continuous operation in mission-critical environments.

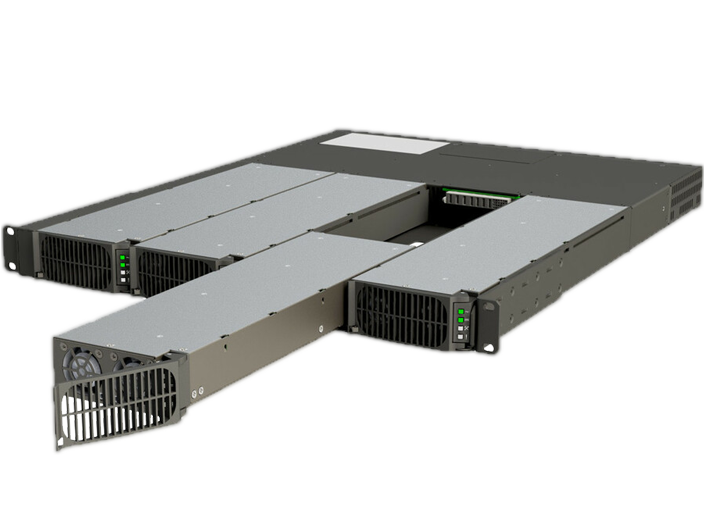

• Complete system module — Includes one LCD module, required power supply modules and standard video controller electronics.
• VESA mount pattern — This configuration uses a VESA mounting interface.
• TAA compliant — Supports government and regulated procurement.

Typical Applications

• Boardroom
• Conference room
• Broadcast studio
• Government space
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

How bright is the MX55X3?
It is rated at 700 nits, the higher-brightness MX tier of the Clarity Matrix G3 family, suited to high-ambient-light spaces.

What is the bezel width between displays?
The tiled bezel width is 2.6mm, keeping seams minimal across a tiled wall.

What is included with this unit?
It includes one LCD module, the required power supply modules and standard video controller electronics.

What mount does this configuration use?
This configuration uses a VESA mount pattern.

Is it rated for continuous use?
Yes. The system is designed for 24x7 operation.

How many modules do I need for my wall?
Quantity depends on the wall size and layout. Contact Creation Networks to confirm a configuration.
