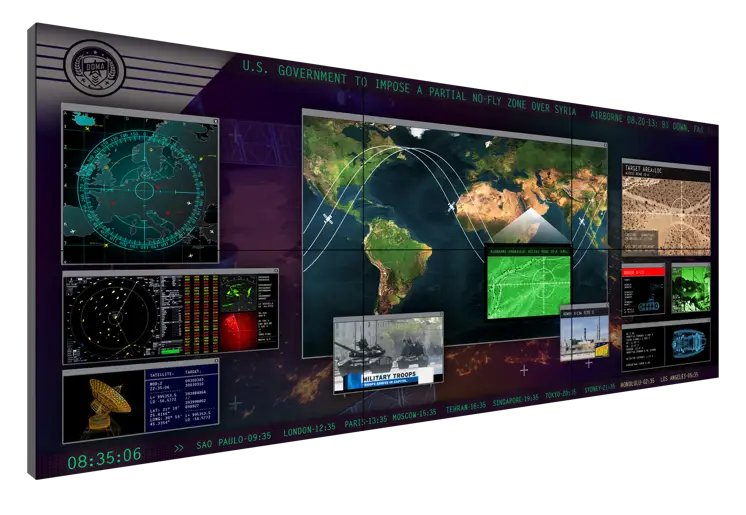

Planar MX55M LCD Video Wall – Fiber, Landscape

Product Overview

The Planar MX55M is a 55-inch Full HD LCD video wall module from the Clarity Matrix G3 family, configured here with fiber extension and a landscape mount. It delivers 1920x1080 resolution at 700 nits with an ultra-narrow 0.88mm tiled bezel for near-continuous imagery across a wall. This configuration includes one LCD module, required power supply modules, standard video controller electronics, 2km single-mode fiber modules, and a landscape mount. The module is TAA compliant and engineered for 24x7 mission-critical operation.

Product Description

This Planar MX55M configuration is built for control rooms and high-visibility environments where displays run continuously and panel gaps must stay minimal. The 0.88mm tiled bezel produces a nearly seamless canvas when modules are arrayed into a wall, and the 700-nit brightness supports clear viewing in well-lit operational spaces. Fiber extension with 2km single-mode fiber modules allows the source and controller electronics to be placed far from the wall, which is valuable in facilities where equipment rooms are remote from the display surface. The package includes the LCD module, the required power supply modules, standard video controller electronics, and a landscape mount for serviceable installation. This configuration does not include the ERO optically bonded glass option; a separate ERO version is available where added contrast and surface protection are required. Each module is sold individually, so walls are scaled by combining the number of modules needed for the target array. The system is rated for 24x7 operation and is TAA compliant for public-sector procurement. To compare fiber and ERO configurations and matching controllers, browse the full Planar collection at Creation Networks. Contact Creation Networks to confirm array sizing, mounting depth, and fiber run details for your site.

Key Features

• 55-inch Full HD module — 1920x1080 LCD panel designed for tiling into larger video wall arrays.
• 0.88mm tiled bezel — Ultra-narrow seam produces a near-continuous image across adjacent modules.
• 700-nit brightness — Maintains visibility in well-lit control rooms and operational spaces.
• 2km fiber extension — Single-mode fiber modules allow remote placement of controller and source electronics.
• Complete module package — Includes LCD module, power supply modules, video controller electronics, and landscape mount.
• 24x7 mission-critical operation — Rated for continuous use in always-on environments.
• TAA compliant — Supports government and public-sector procurement requirements.

Typical Applications

• Broadcast studio
• Government space
• Commercial meeting space
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is this a complete video wall or a single module?
This SKU is a single 55-inch module with its required electronics and a landscape mount. Walls are built by combining the modules needed for your array. Contact Creation Networks for array sizing.

What does the fiber extension do?
The 2km single-mode fiber modules allow the controller and source electronics to be located far from the wall, useful when the equipment room is remote from the display.

Does this configuration include ERO glass?
No. This version does not include ERO optically bonded glass. A separate ERO configuration is available where added contrast and surface protection are needed.

How does installation work?
The module ships with a landscape mount and standard controller electronics for front-serviceable installation. Creation Networks can coordinate professional installation services.

Is it suitable for 24x7 control room use?
Yes. The MX55M is rated for continuous 24x7 mission-critical operation.

What warranty and support apply?
Planar Clarity Matrix systems carry manufacturer warranty coverage. Contact Creation Networks for current warranty terms and support options.
