Planar MX55HDX-V-ERO 55" Matrix G2 800 nit LCD Video Wall VESA - 997-8327-01
Planar MX55HDX-V-ERO 55" Matrix G2 800 nit LCD Video Wall VESA - 997-8327-01 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar MX55HDX-V-ERO 55" Matrix G2 800 nit LCD Video Wall VESA...
Product Overview

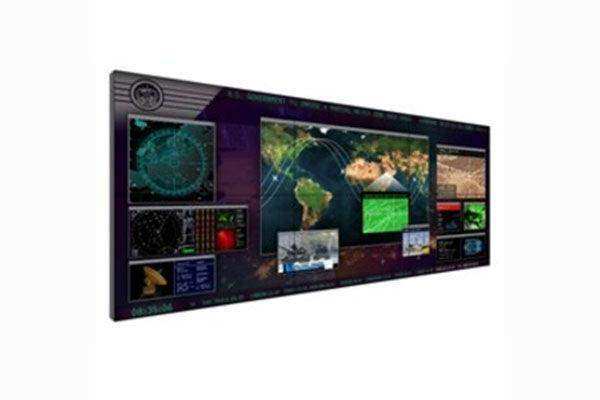

The Planar MX55HDX-V-ERO is a 55-inch Clarity Matrix G2 LCD video wall panel featuring VESA-compatible mounting, combining 800 nit brightness with Planar ERO optically-bonded glass for maximum flexibility in custom and third-party mounting configurations. This fine bezel LCD video wall panel delivers a 1.7mm tiled bezel width and Full HD 1920x1080 resolution for crisp, near-seamless multi-display arrays. The VESA mount configuration gives system integrators the freedom to use standard or custom mounting solutions while retaining all the optical and reliability advantages of the Clarity Matrix G2 platform. Rated for 24/7 continuous operation, it is built for mission-critical deployments where uptime is non-negotiable.
Product Description
The Planar MX55HDX-V-ERO (SKU: 997-8327-01) is the VESA-mount variant of the Clarity Matrix G2 MX55HDX-ERO family, designed for integrators who require standard VESA compatibility alongside the performance attributes of a commercial-grade fine bezel LCD video wall panel. VESA mounting expands deployment possibilities to custom fabricated structures, third-party motorized mounts, and specialized architectural installations where the Planar EasyAxis system may not be the preferred solution. At 800 nits, this 55 inch video wall display 800 nit panel provides substantially greater brightness headroom than the 500 nit standard of competing platforms. Planar ERO LCD video wall ERO glass is optically bonded to eliminate internal reflections and add impact resistance. The off-board electronics design keeps the display at a 3.6-inch installed depth, and Planar WallNet provides SNMP-based health tracking. Built-in video extension of up to 500 feet eliminates third-party extender costs regardless of mounting configuration chosen.
Key Features
- 55-inch Clarity Matrix G2 LCD video wall panel with VESA-compatible mounting
- 800 nit brightness for high-ambient-light commercial environments
- Planar ERO optically-bonded glass, ruggedized and reflection-free
- Fine bezel LCD video wall panel with 1.7mm tiled bezel width
- VESA mount compatibility for custom and third-party mounting structures
- Full HD 1920x1080 resolution, 1080p scan format
- Off-board electronics, 3.6-inch installed depth
- Built-in video extension up to 500 feet without third-party extenders
- Planar WallNet SNMP health monitoring
- LED backlight with 10-bit color processing
- Single power supply drives up to 8 displays
- 24/7 commercial-grade continuous operation rating
Typical Applications
- Custom architectural video wall installations requiring VESA flexibility
- Retail and museum environments with specialized mounting structures
- Control rooms with non-standard rack or frame configurations
- Motorized and adjustable mount video wall deployments
- Integration projects requiring compatibility with existing mount infrastructure
- Public-facing displays requiring ERO impact protection with custom framing
Technical Specifications
| Specification | Detail |
|---|---|
| Model | MX55HDX-V-ERO |
| SKU / Part Number | 997-8327-01 |
| Screen Size | 55 inches |
| Mount Type | VESA compatible |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 800 nit |
| Tiled Bezel Width | 1.7mm |
| Backlight | LED |
| Scan Format | 1080p |
| Installed Depth | 3.6 inches (91mm) |
| Operation | 24/7 |
| ERO Glass | Yes, optically bonded |
| Mounting | VESA standard |
| Video Extension | Up to 500 ft built-in |
| Monitoring | Planar WallNet / SNMP |
| Generation | Clarity Matrix G2 |
Competitor Comparison
| Feature | Planar MX55HDX-V-ERO (G2) | Samsung IA-Series 55" | LG LSCB Series 55" | NEC UN552 (UN-Series) |
|---|---|---|---|---|
| Brightness | 800 nit | 500 nit | 500 nit | 500 nit |
| ERO / Bonded Glass | Yes | No | No | Optional |
| VESA Mount | Yes (native) | Yes | Yes | Yes |
| Installed Depth | 3.6 inches | ~4.0 inches | ~3.9 inches | ~4.2 inches |
| Tiled Bezel Width | 1.7mm | 1.8mm | 1.8mm | 1.7mm |
| Off-board Electronics | Yes | No | No | No |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What VESA pattern does the MX55HDX-V-ERO support?
- The MX55HDX-V-ERO supports standard VESA mounting patterns for 55-inch commercial displays. Consult Planar's official datasheet or contact Creation Networks for specific VESA hole pattern dimensions.
- How does the VESA mount version differ from the EasyAxis-mounted versions?
- The V-ERO provides VESA mount points for integration with third-party or custom structural mounting solutions. The portrait and landscape EasyAxis models include Planar's proprietary alignment system but are optimized for the Planar mounting ecosystem.
- Can the VESA mount version be installed in either portrait or landscape orientation?
- Yes. VESA mounting provides orientation flexibility. The mounting structure and content source configuration determine the final orientation.
- Does the VESA version still include ERO glass?
- Yes. ERO optically-bonded glass is included on all MX55HDX-ERO variants regardless of mounting type, providing the same impact resistance and reflection elimination.
- What is the power supply architecture?
- The off-board power supply module drives up to 8 displays simultaneously. Redundant power supply modules are available for continuous 24/7 operation even in the event of a module failure.
- Is the MX55HDX-V-ERO suitable for outdoor installations?
- No. The MX55HDX-V-ERO is an indoor commercial-grade display. Contact Creation Networks for appropriate solutions for high-brightness or semi-outdoor requirements.
